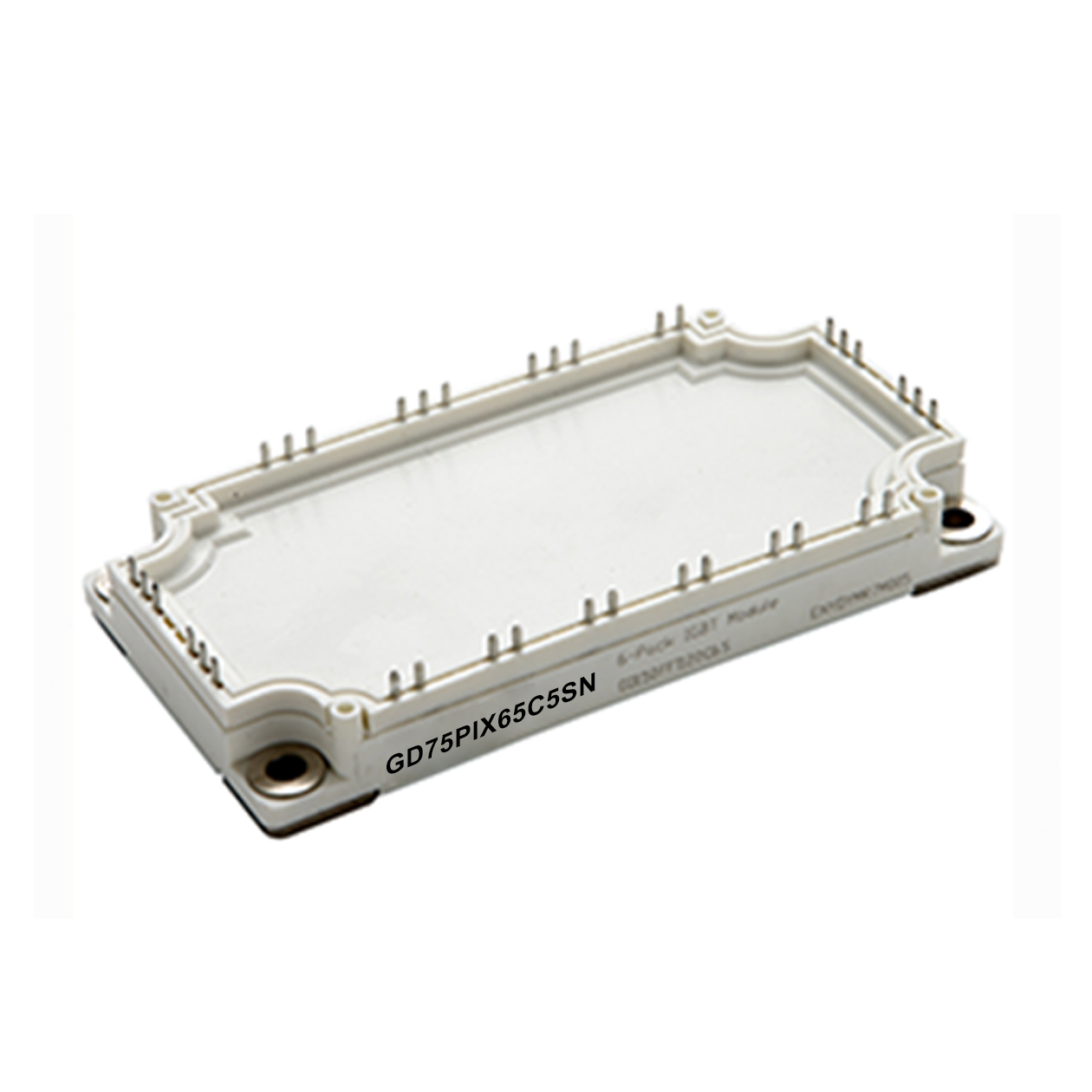

650V/75A PIM Trench-FS Gen1 IGBT, C5, GD75PIX65C5SN

650V/75A PIM Trench-FS Gen1 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD75PIX65C5SN

  • Merry

650V/75A PIM Trench-FS Gen1 IGBT, C5, GD75PIX65C5SN
Package:C5
Rated Current:75A
Chip Type:Trench-FS Gen1
Rated Voltage:650V
Circuit Structure:PIM
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

GD75PIX65C5SNName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

GD75PIX65C5SN-1_页面_01

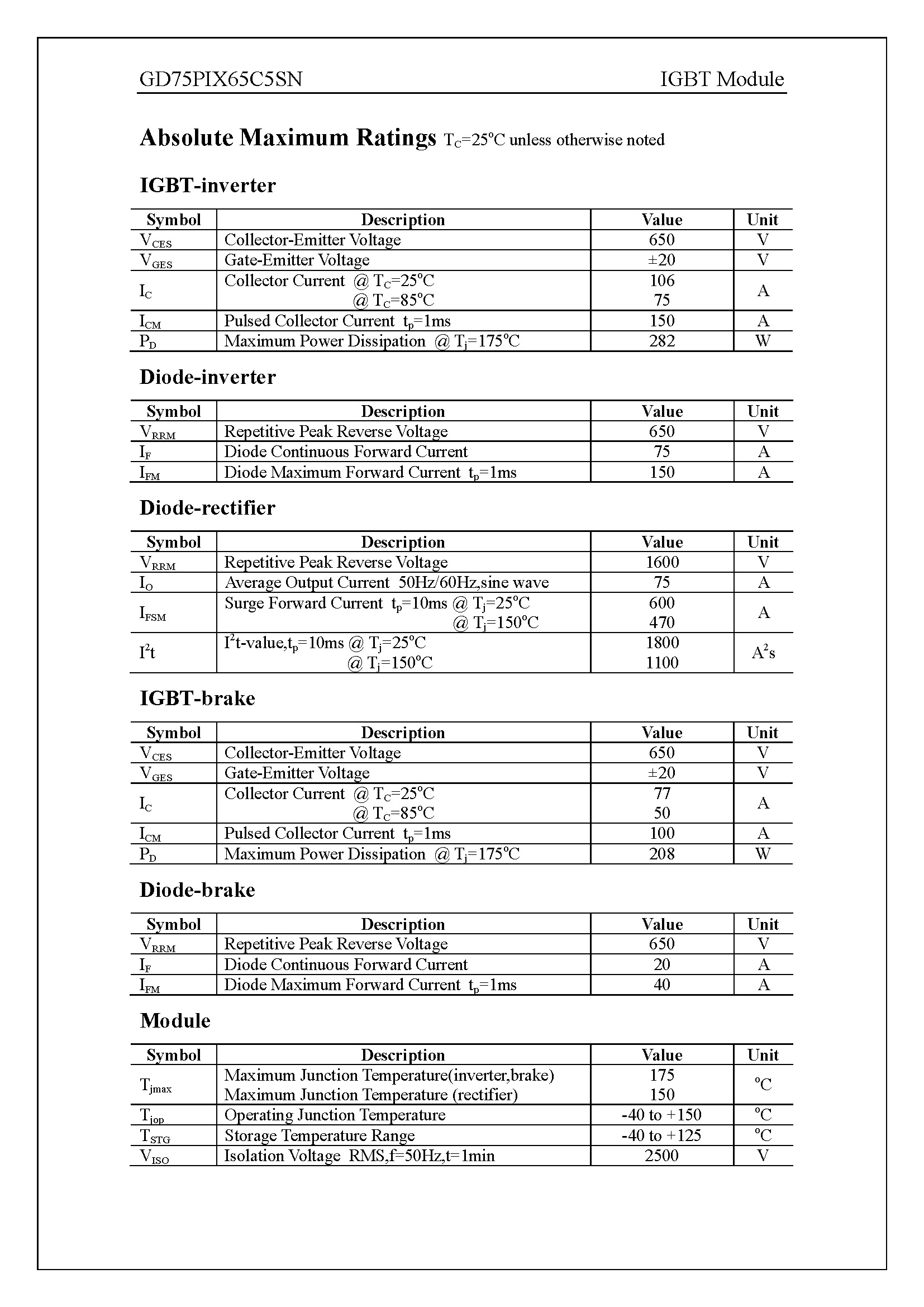

GD75PIX65C5SN-1_页面_02

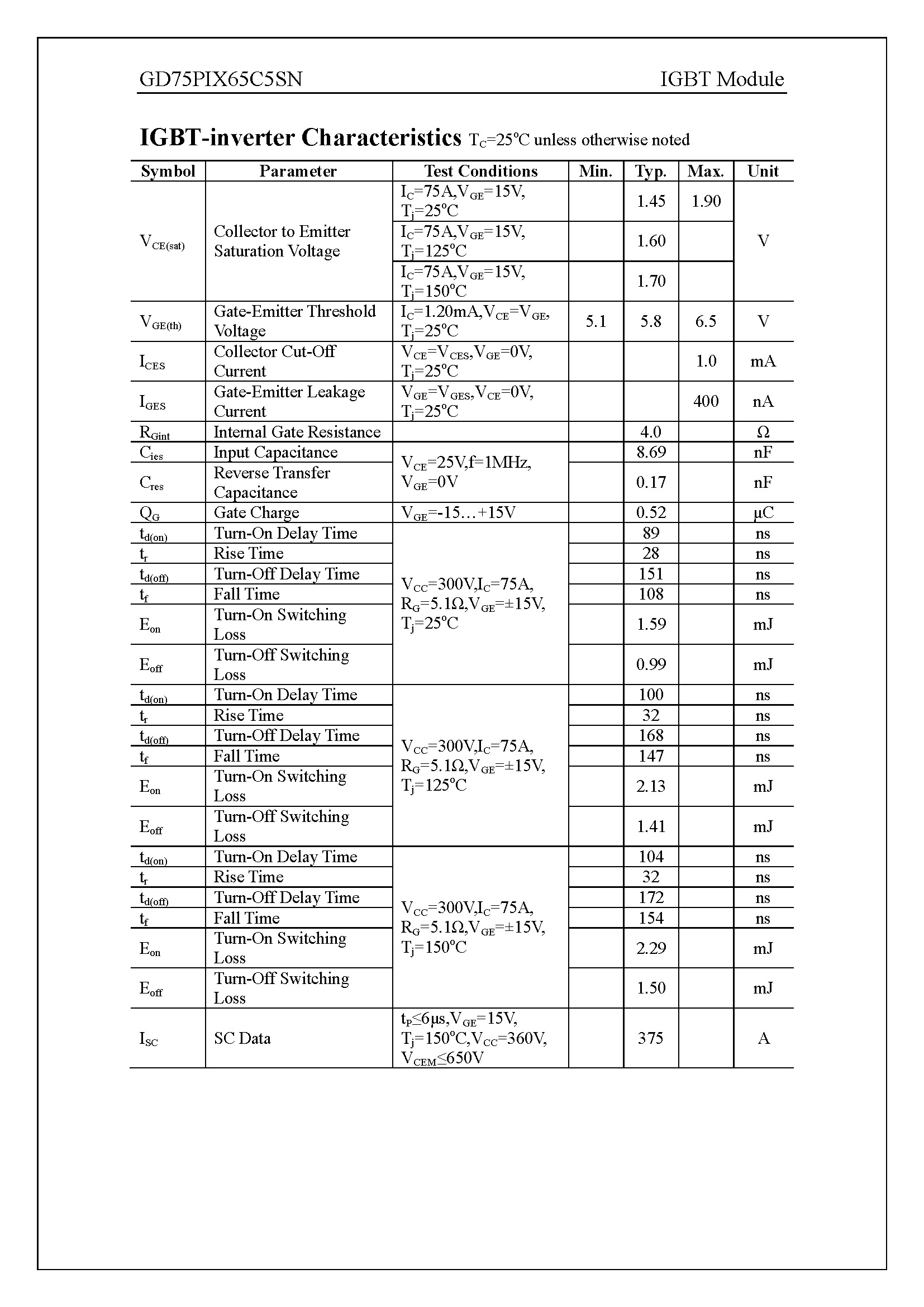

GD75PIX65C5SN-1_页面_03

COMPANY PROFILE-01

En_Merry catalogue_16-9_页面_01

En_Merry catalogue_16-9_页面_02

En_Merry catalogue_16-9_页面_03

En_Merry catalogue_16-9_页面_05

En_Merry catalogue_16-9_页面_06

En_Merry catalogue_16-9_页面_07

En_Merry catalogue_16-9_页面_08

En_Merry catalogue_16-9_页面_09

En_Merry catalogue_16-9_页面_10

En_Merry catalogue_16-9_页面_11

FAQ-01


Previous:
Next:
650V/75A PIM Trench-FS Gen1 IGBT GD75PIX65C5SN IGBT C5 IGBT PIM Fast Recovery Diode Rectifier
