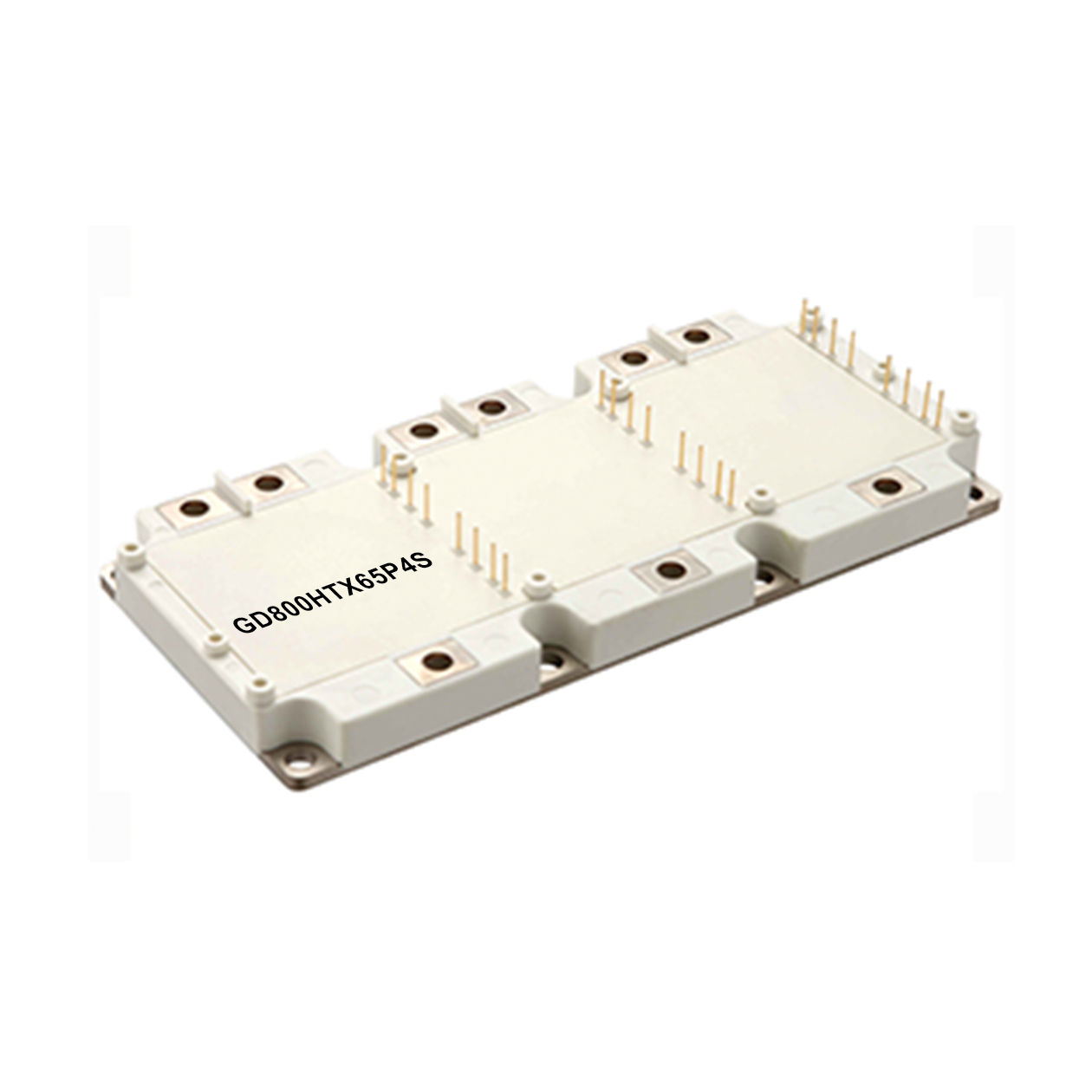

650V/800A IGBT Trench-FS Gen1, P4, GD800HTX65P4S

650V/800A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD800HTX65P4S

  • Merry

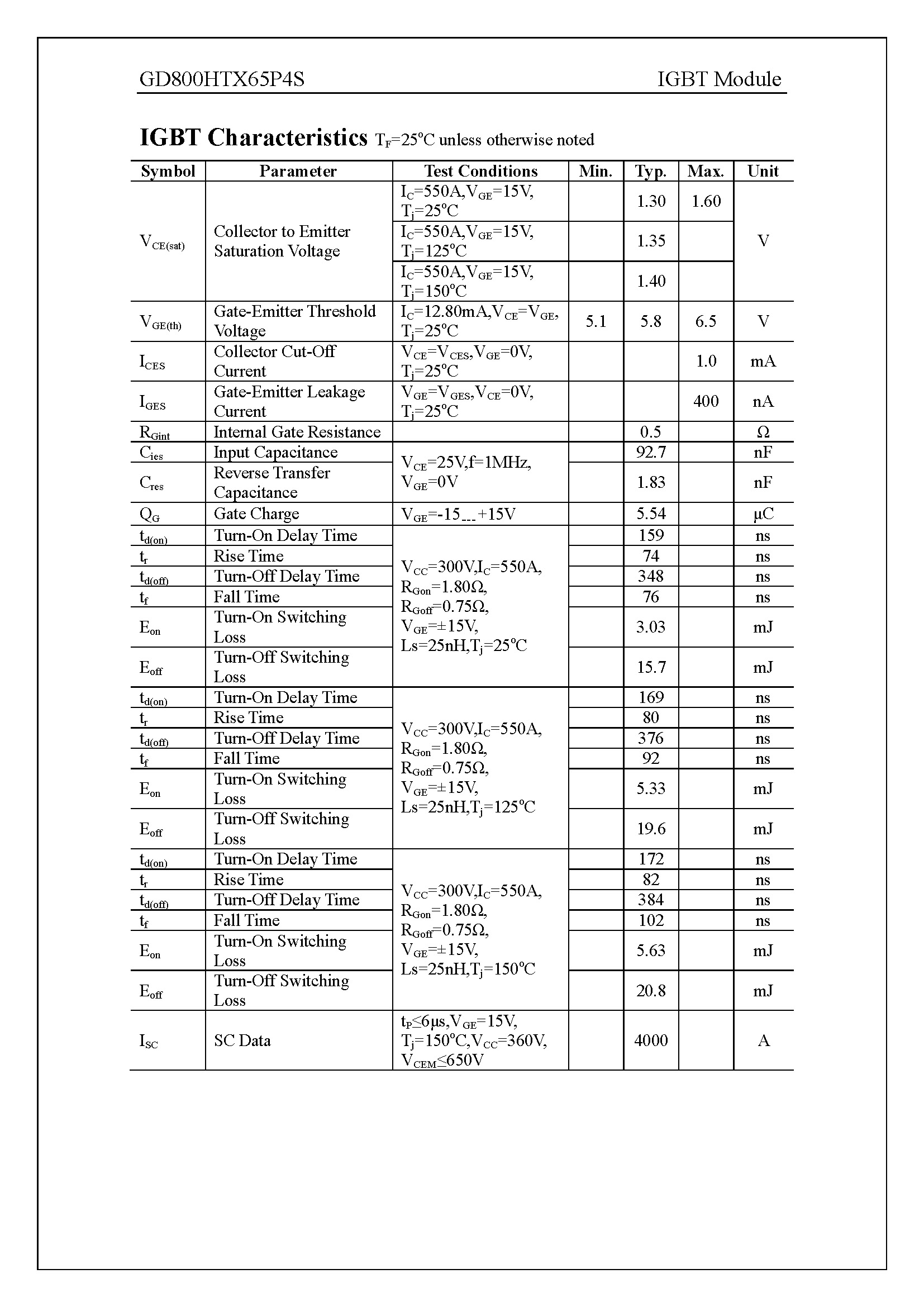

650V/800A IGBT Trench-FS Gen1, P4, GD800HTX65P4S

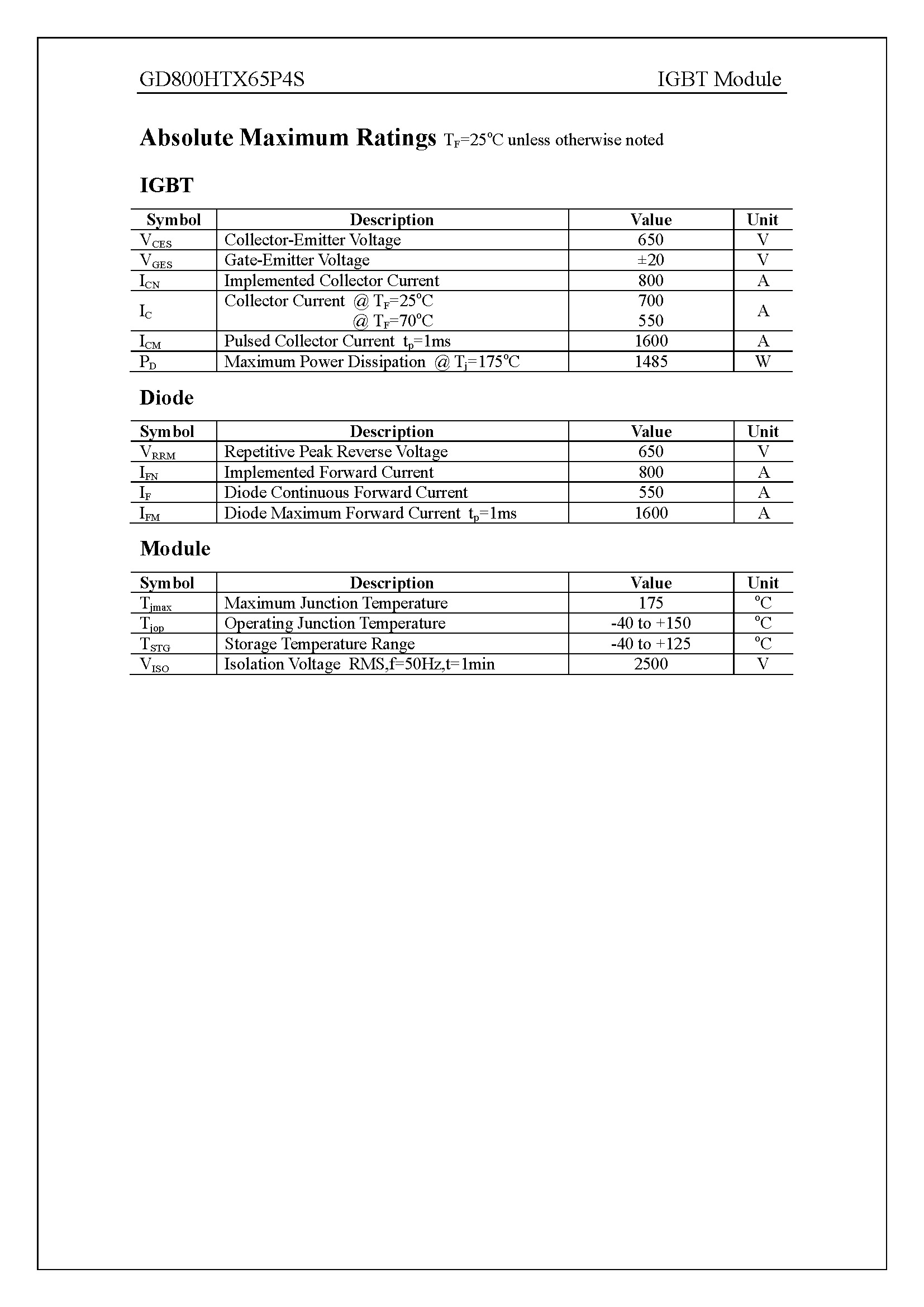

Package:P4
Rated Current:800A
Chip Type:Trench-FS Gen1
Rated Voltage:650V
Circuit Structure:Sixpack
Hallmark:PINFIN Substrates


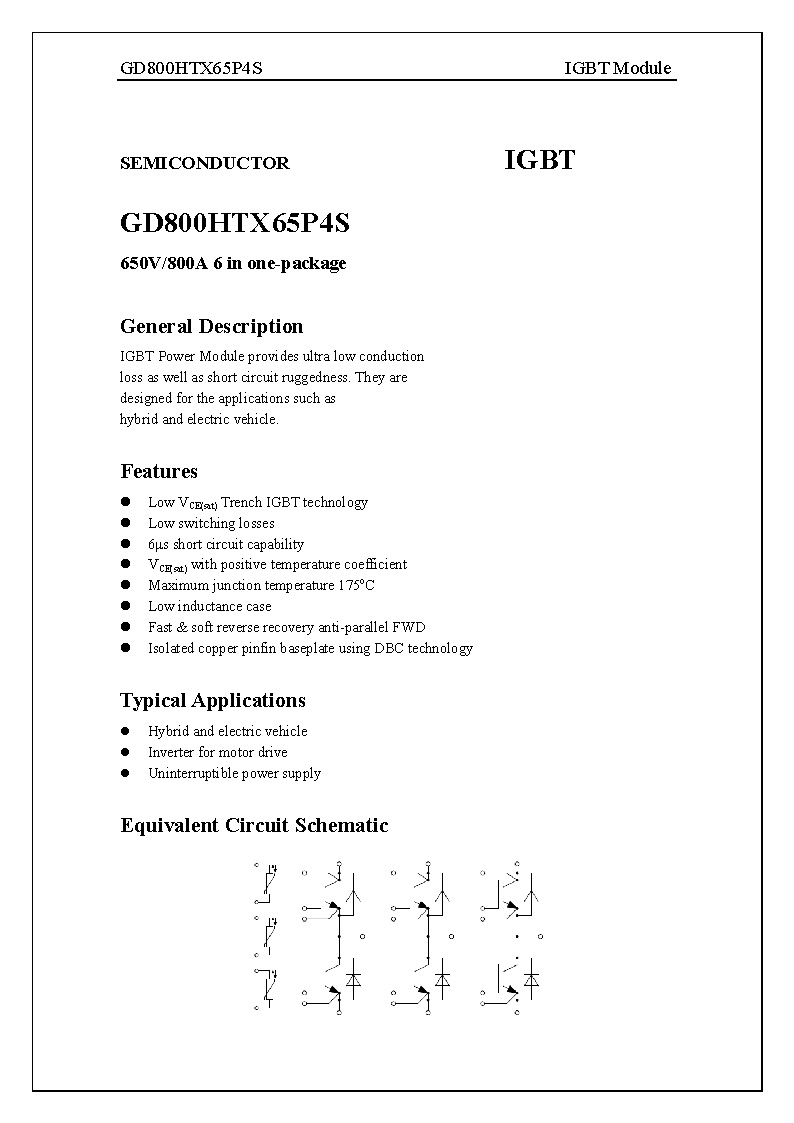

Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper pinfin baseplate using DBC technology
- Low inductance case

Typical Applications :
- Hybrid and electric vehicle
- Inverter for motor drive
- Uninterruptible power supply
