6A/1.8V 3 Quadrants/4 Quadrants TRIACs, 4 Quadrants TRIACS, TO-220, BTA06

6A/1.8V 3 Quadrants/4 Quadrants TRIACs,
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • BTA06

  • Merry

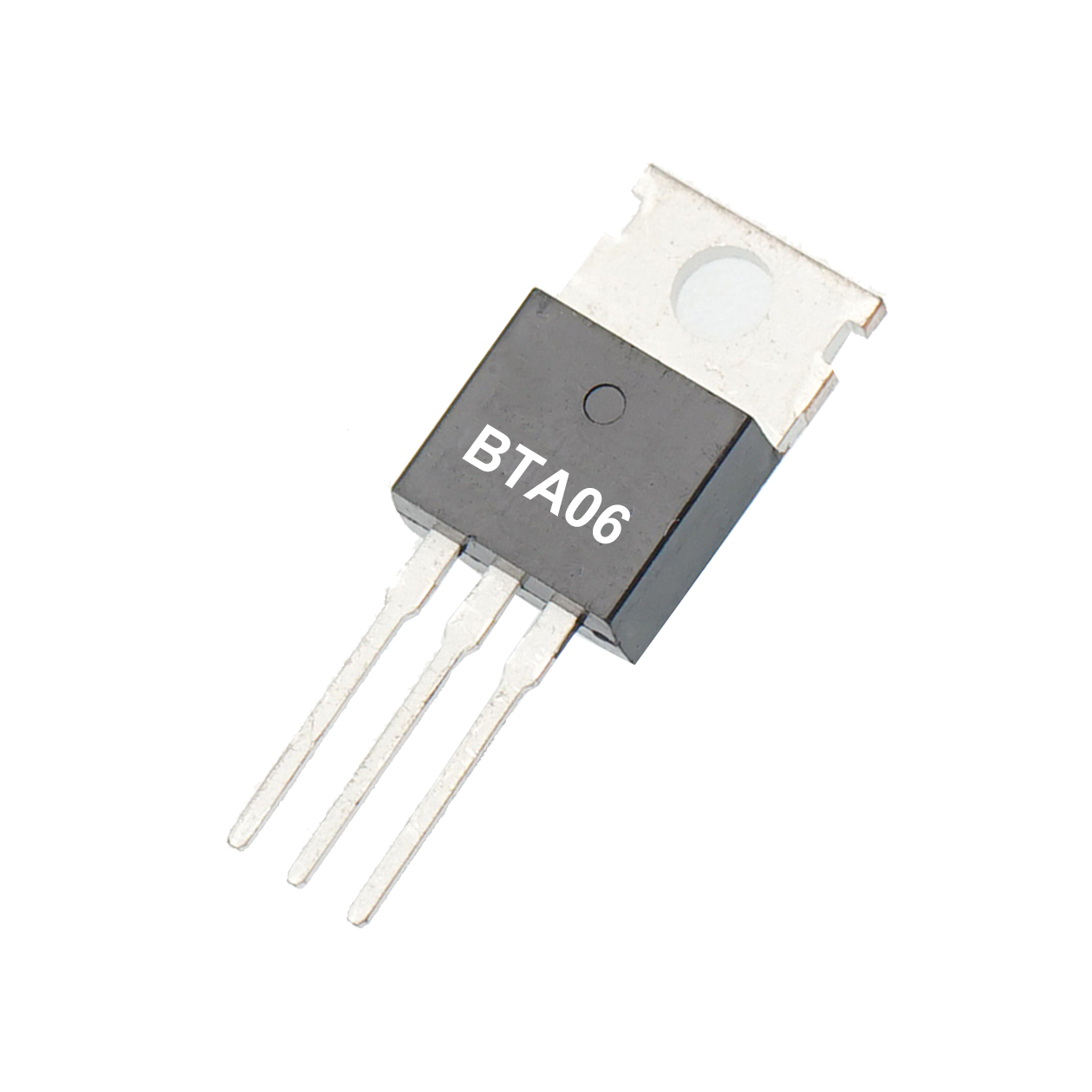

6A/1.8V 3 Quadrants/4 Quadrants TRIACs, TO-220, BTA06
Part number : BTA06
IT(RMS)(A) : 6
VDRM(V) : 600/800
IGT(mA) Max  : 1-30mA
VGT(V) : 1.8
IH(mA) : 50
Package : TO-220

Features :
- IT(RMS): 6A
- VGT: 1.3V
- VDRM VRRM: 600V and 800V

Applications :
- Washing machine,vacuums, massager,solid state relay, AC Motor speed regulation and so on
