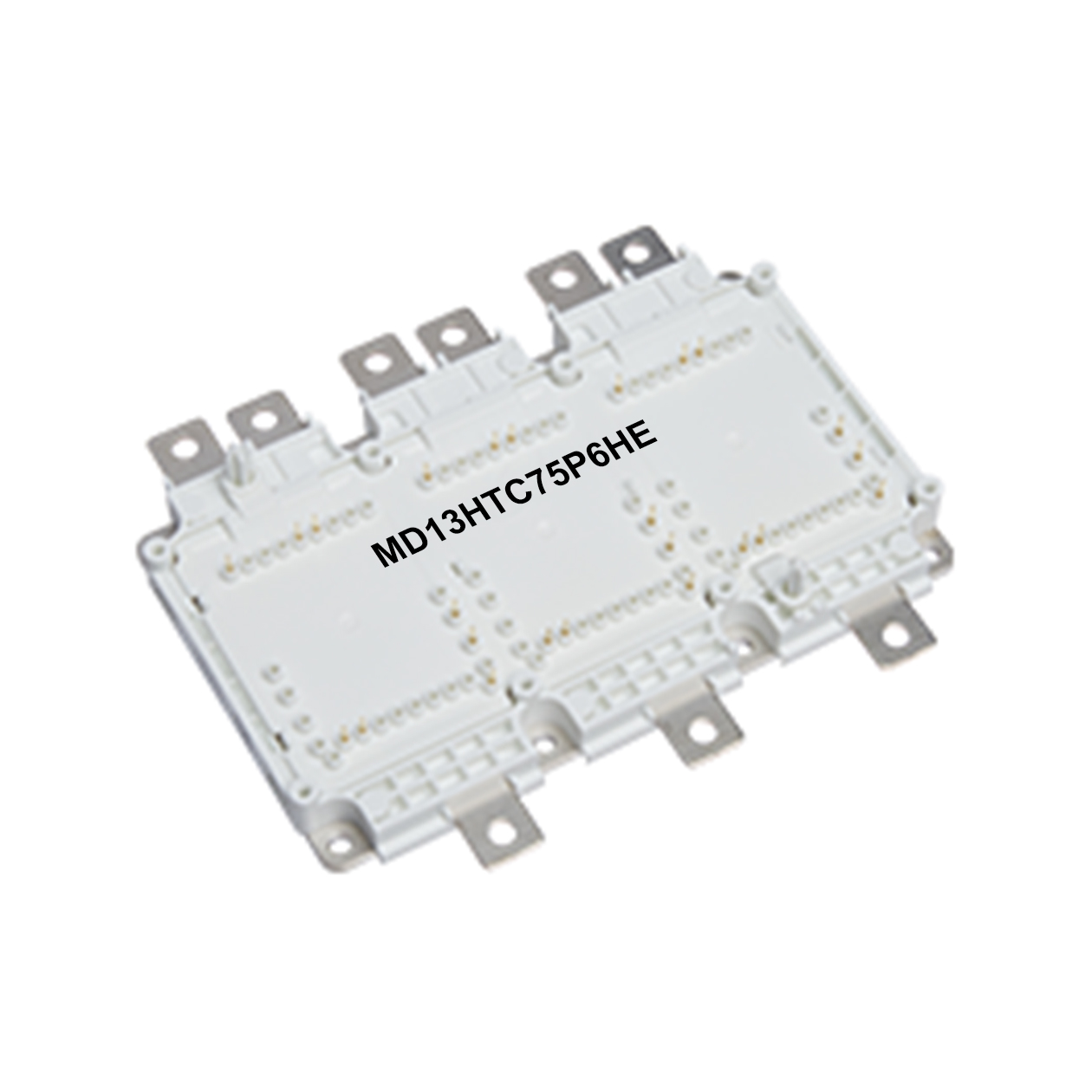

750V/1.25mΩ SiC MOSFET, P6, MD13HTC75P6HE

750V/1.25mΩ SiC MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MD13HTC75P6HE

  • Merry

750V/1.25mΩ SiC MOSFET, P6, MD13HTC75P6HE
Package: P6
Rated Current: -
Chip Type: SiC
Rated Voltage: 750V
Circuit Structure: Sixpack
Hallmark: PINFIN Substrates


Features :
- SiC power MOSFET
- Low RDS(on)
- Optimized intrinsic reverse diode
- Low inductance case avoid oscillations
- Isolated copper pinfin baseplate using Si3N4 AMB technology

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

MD13HTC75P6HEName1
