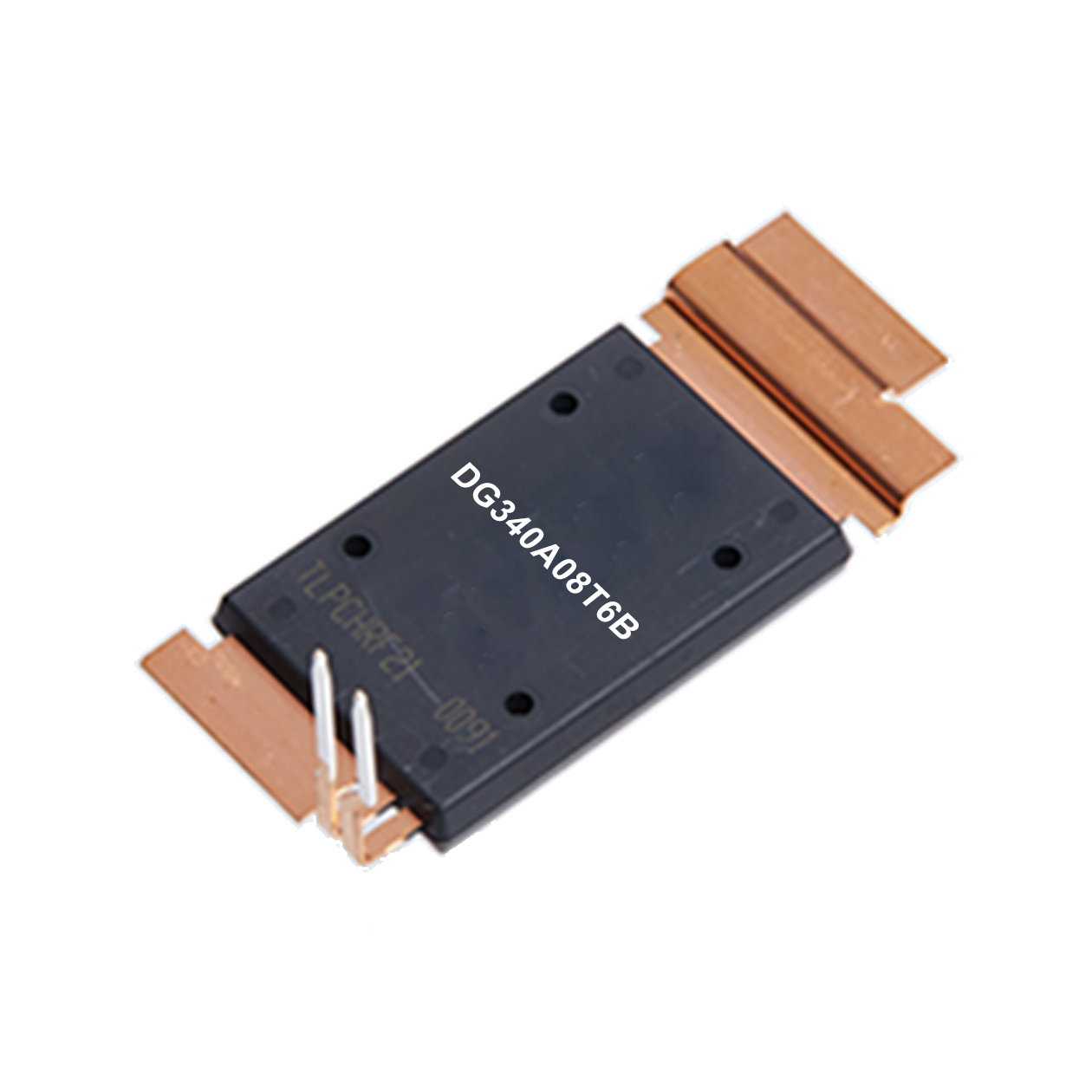

750V/340A IGBT with Diode Single Phase Trench-FS Gen2, T6, DG340A08T6B

750V/340A IGBT with Diode Single Phase Trench-FS Gen2
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DG340A08T6B

  • Merry

750V/340A IGBT with Diode Single Phase Trench-FS Gen2, T6, DG340A08T6B
Package:T6
Rated Current:340A
Chip Type:Trench-FS Gen2
Rated Voltage:750V
Circuit Structure:Single Phase
Hallmark:Injection Molding


Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated heatsink using Si3N4 AMB technology
- ROHS

Typical Applications :
- Inverter for motor drive
- AC and DC servo drive amplifier
- Uninterruptible power supply

DG340A08T6BName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

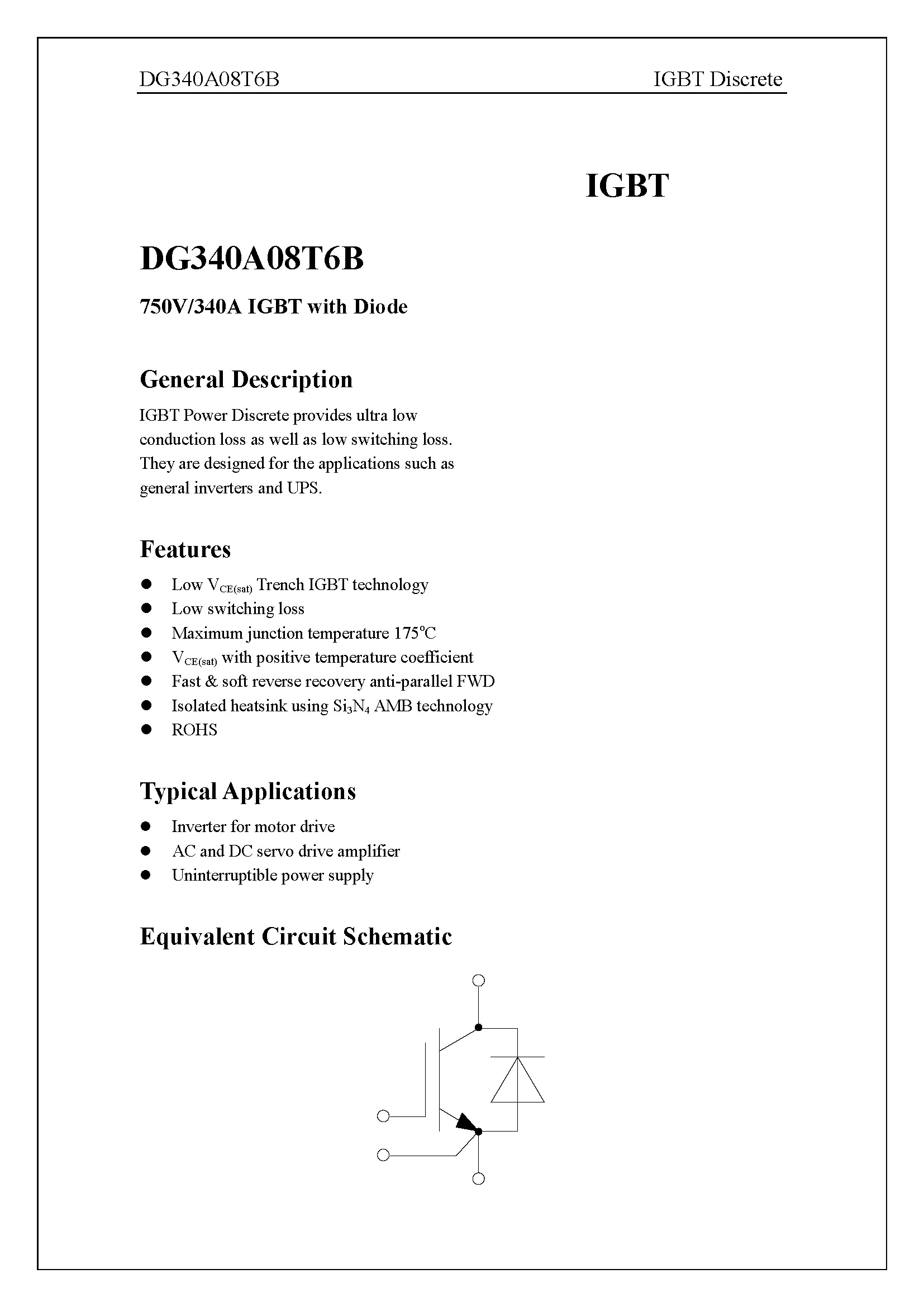

DG340A08T6B-1_页面_01

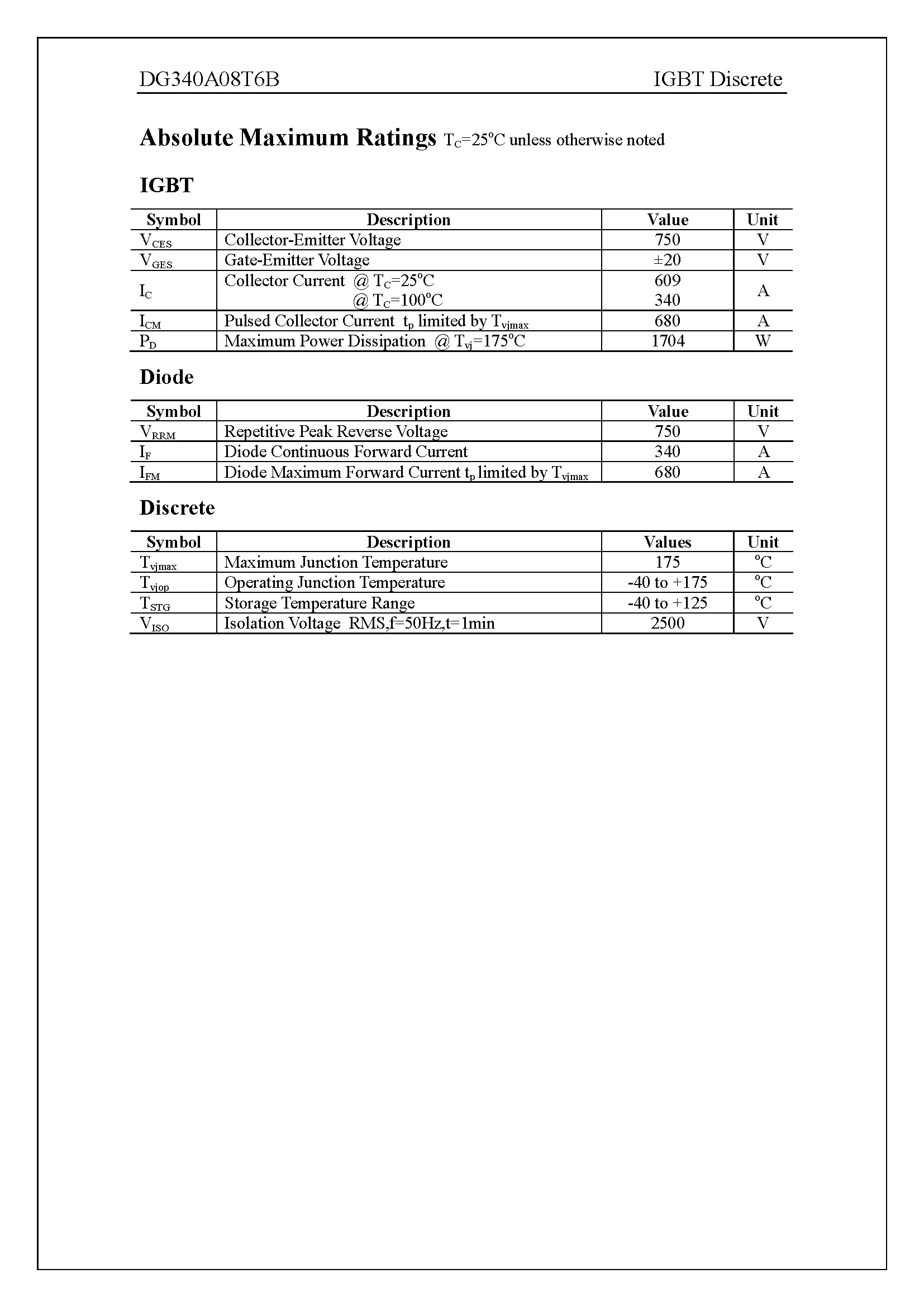

DG340A08T6B-1_页面_02

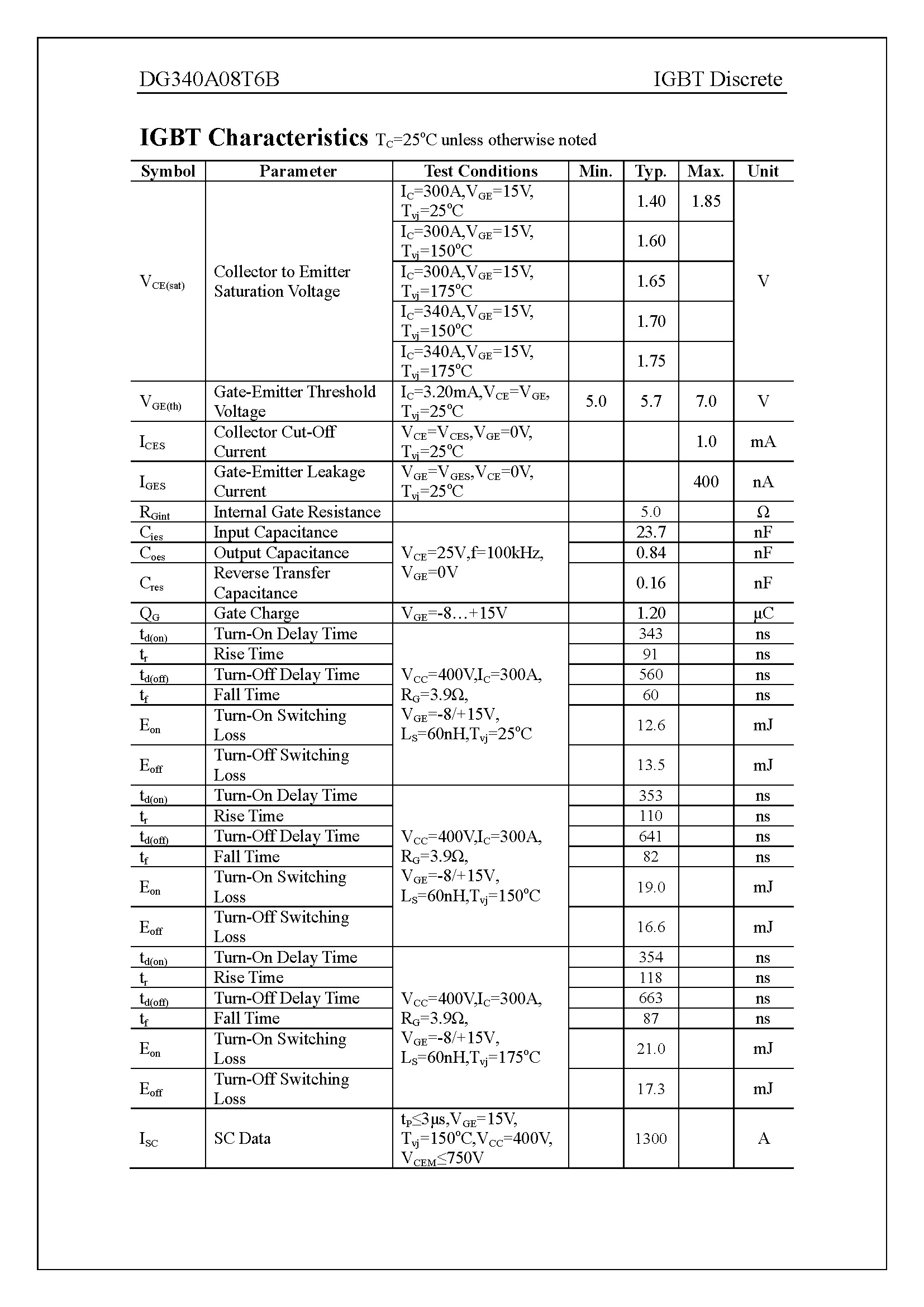

DG340A08T6B-1_页面_03
