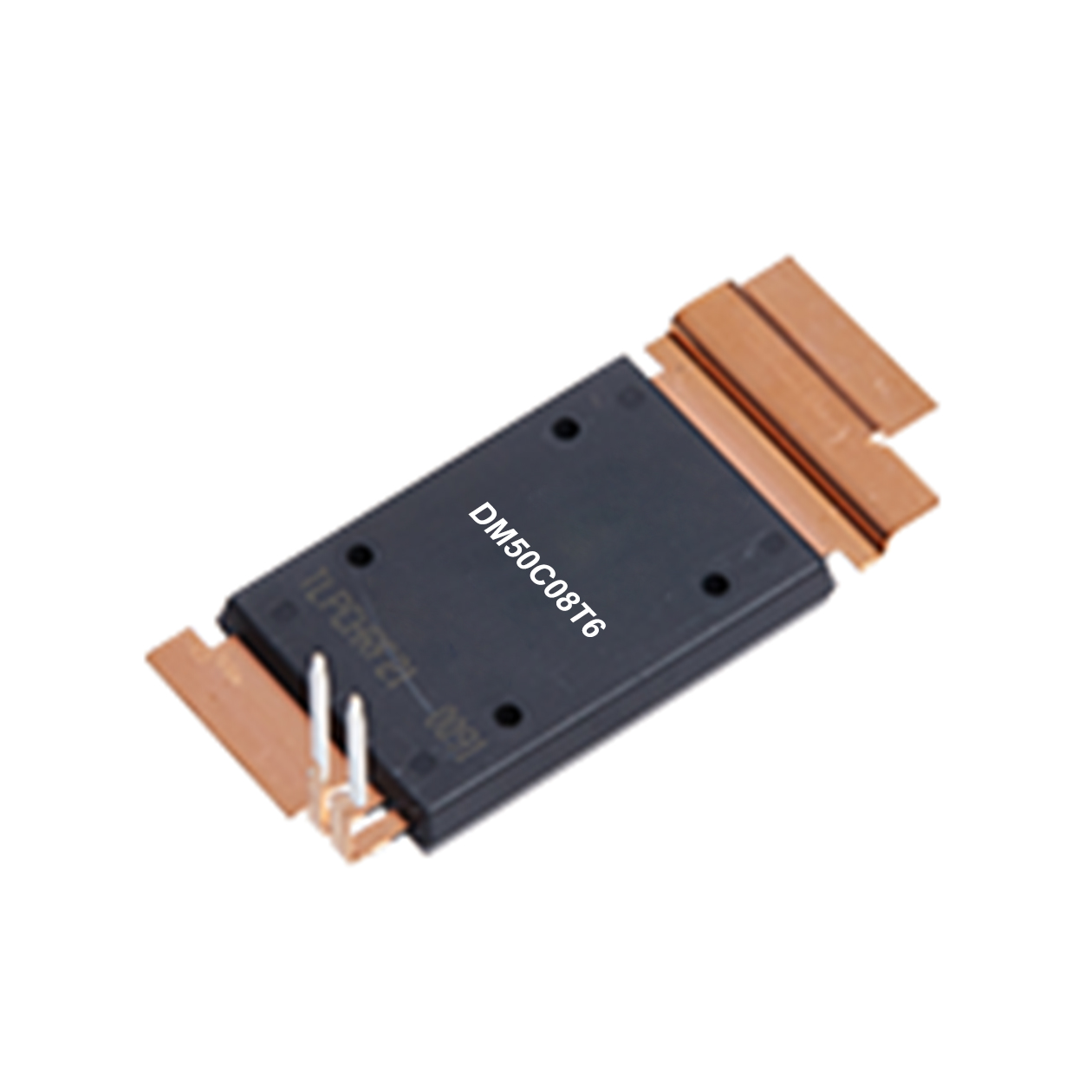

750V/5.0mΩ SiC Mosfet without Diode, T6, DM50C08T6

750V/5.0mΩ SiC Mosfet without Diode
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • DM50C08T6

  • Merry

750V/5.0mΩ SiC Mosfet without Diode, T6, DM50C08T6
Package: T6
Rated Current: -
Chip Type: SiC
Rated Voltage: 750V
Circuit Structure: Single Phase
Hallmark: T-Pack


Features :
- SiC power MOSFET
- Low RDS(on)
- Chip sintering technology
- Low inductance case avoid oscillations
- Isolated heatsink using Si3N4 AMB technology
- ROHS

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

DM50C08T6Name1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

GD560HTX75P7HN

Name1

MG25P12E1

Name2


products-1

Name1

GD660HFA75N5HY_B29

Name2

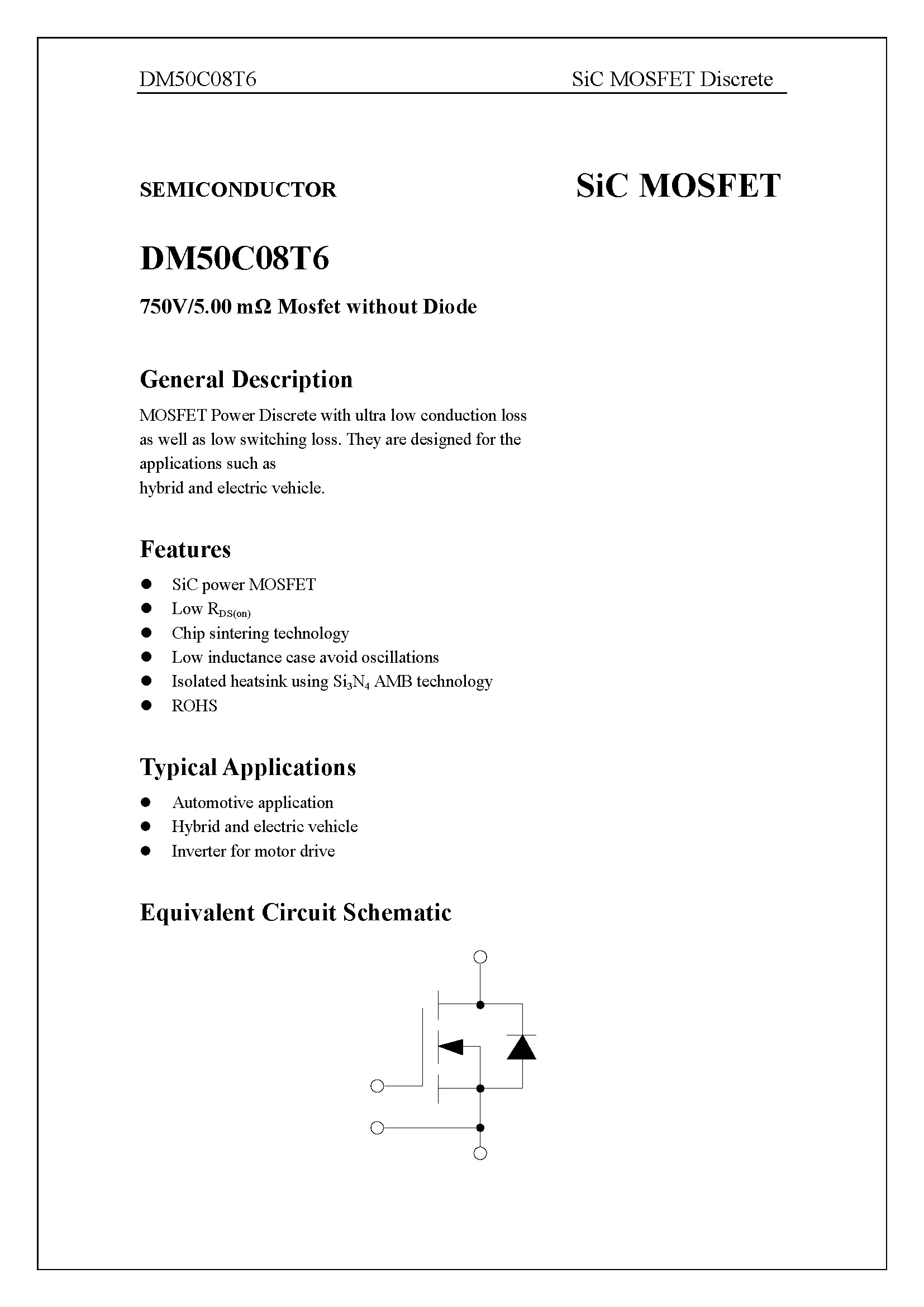

DM50C08T6-1_页面_1

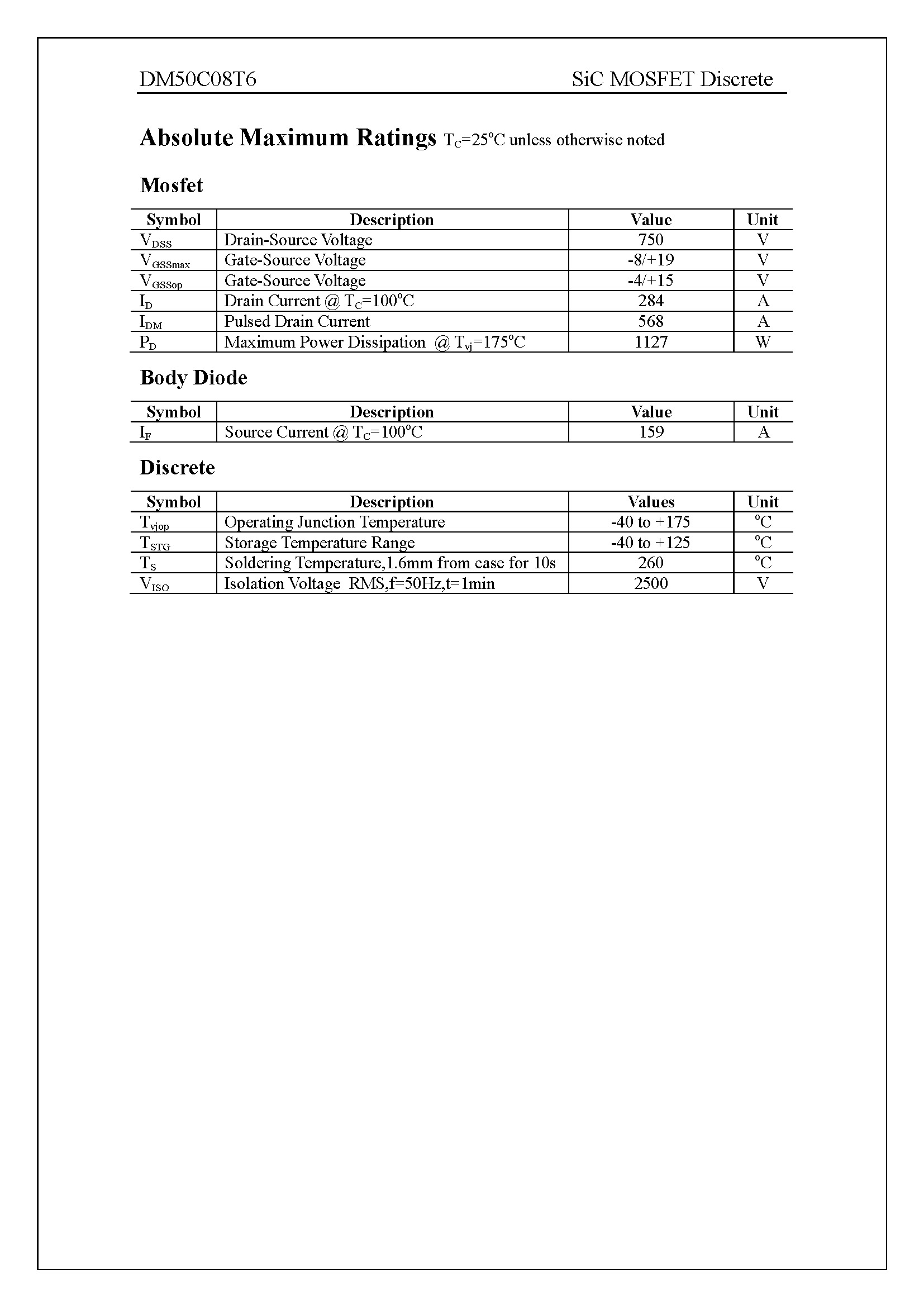

DM50C08T6-1_页面_2

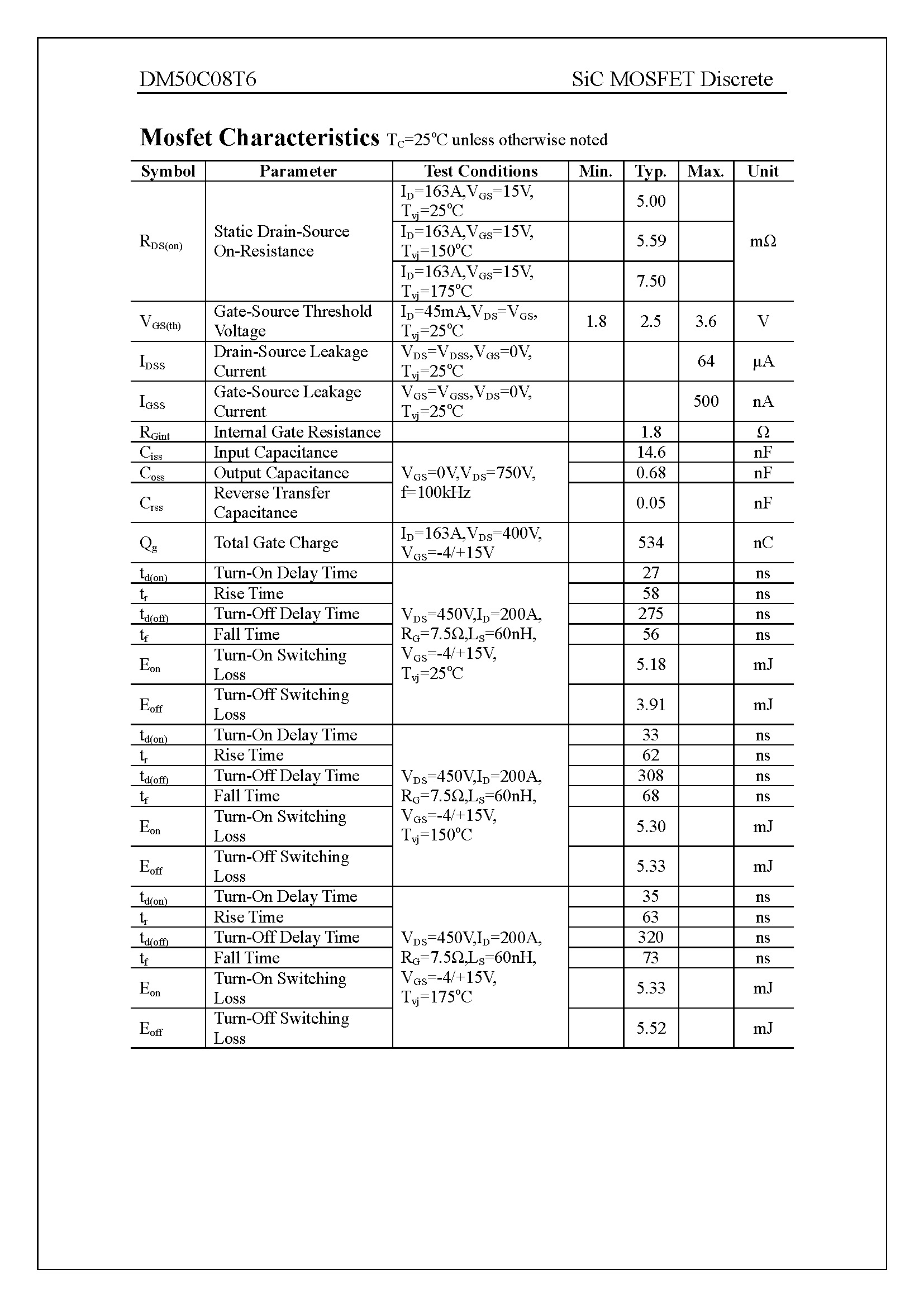

DM50C08T6-1_页面_3
