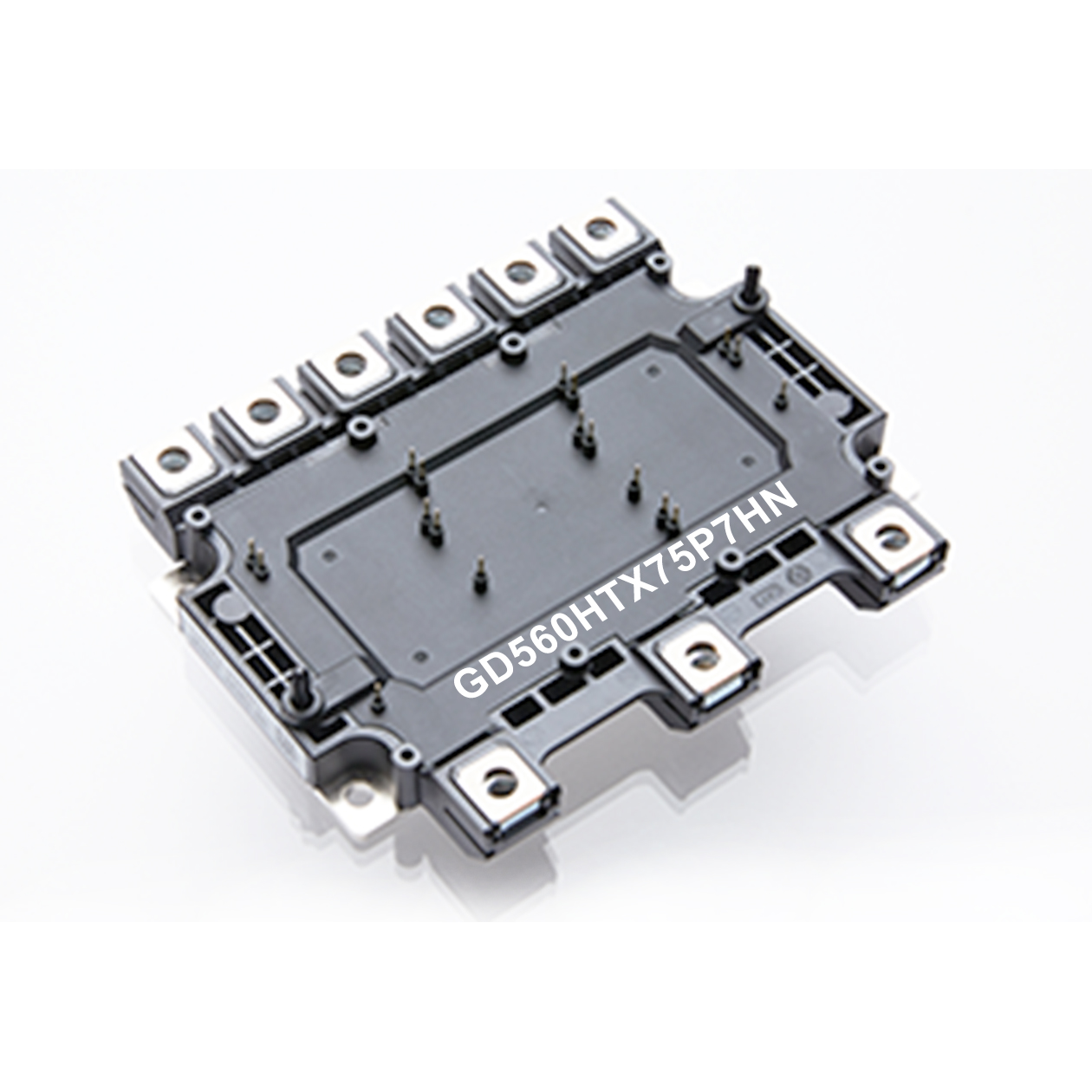

750V/560A IGBT Trench-FS Gen1, P7, GD560HTX75P7HN

750V/560A IGBT Trench-FS Gen1
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD560HTX75P7HN

  • Merry

750V/560A IGBT Trench-FS Gen1, P7, GD560HTX75P7HN
Package: P7
Rated Current: 560A
Chip Type: Trench-FS Gen1
Rated Voltage: 750V
Circuit Structure: Sixpack
Hallmark: PINFIN Substrates


Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper pinfin baseplate using DBC technology
- Low inductance case

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

GD560HTX75P7HNName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

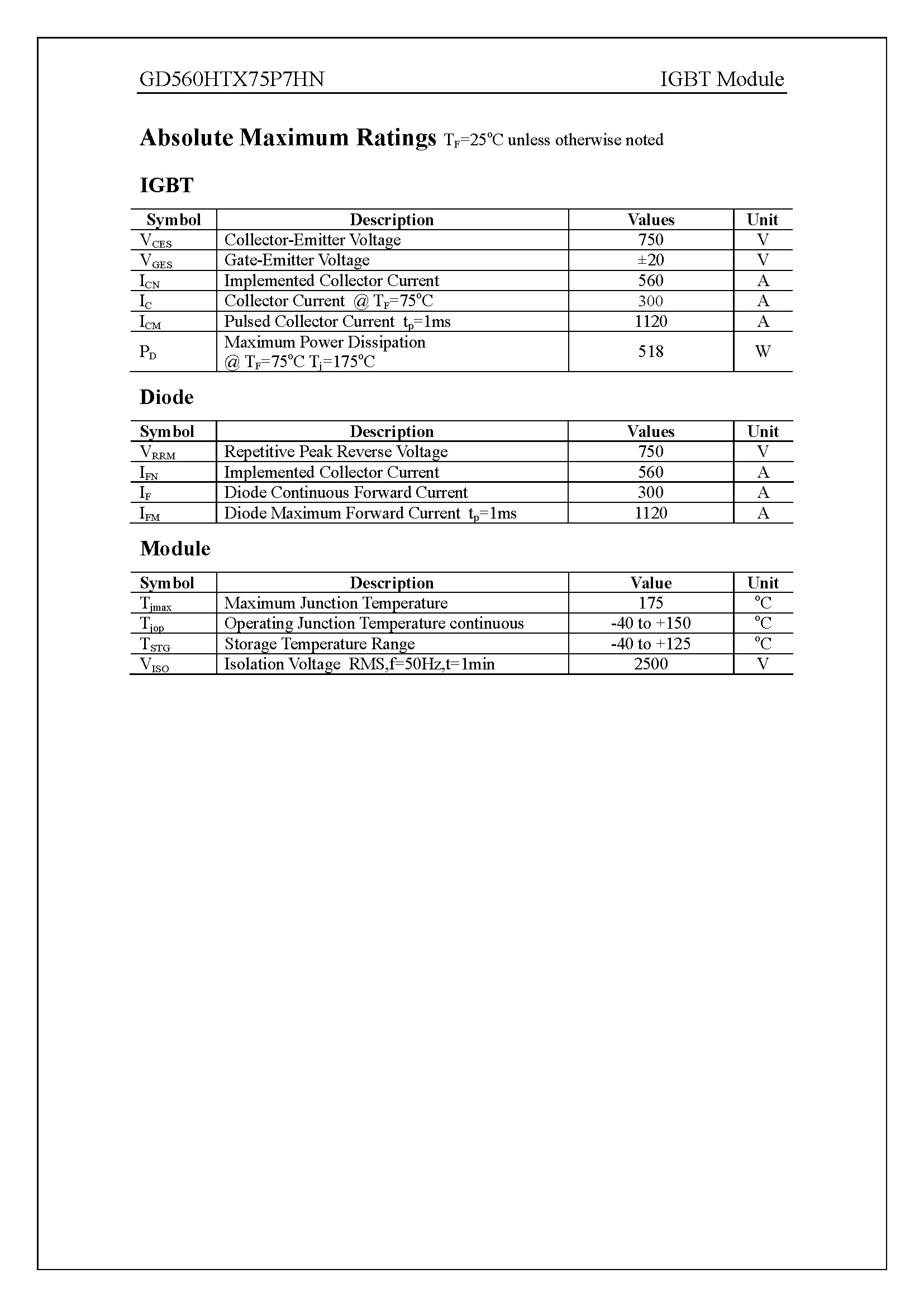

GD560HTX75P7HN-1_页面_01

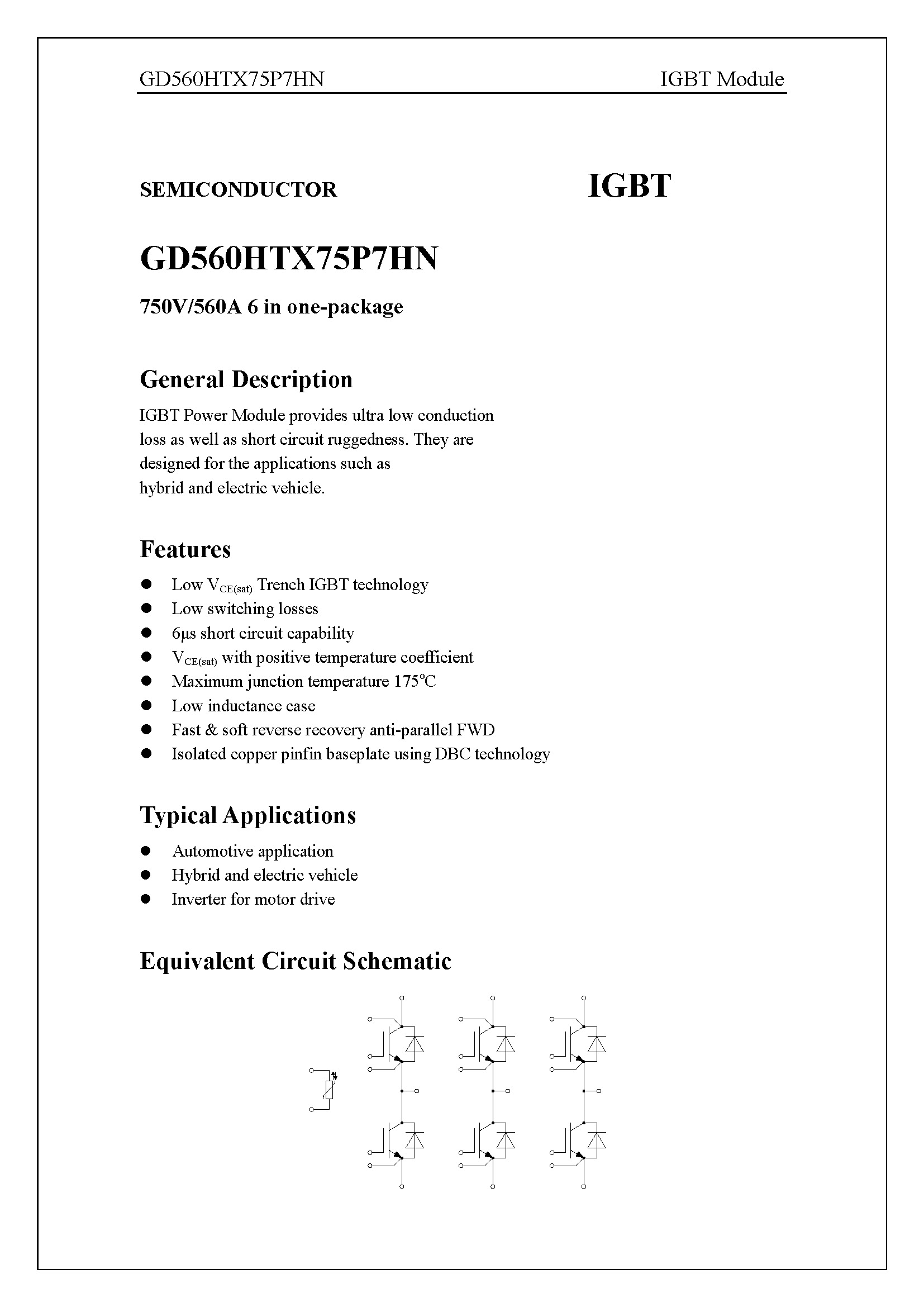

GD560HTX75P7HN-1_页面_02

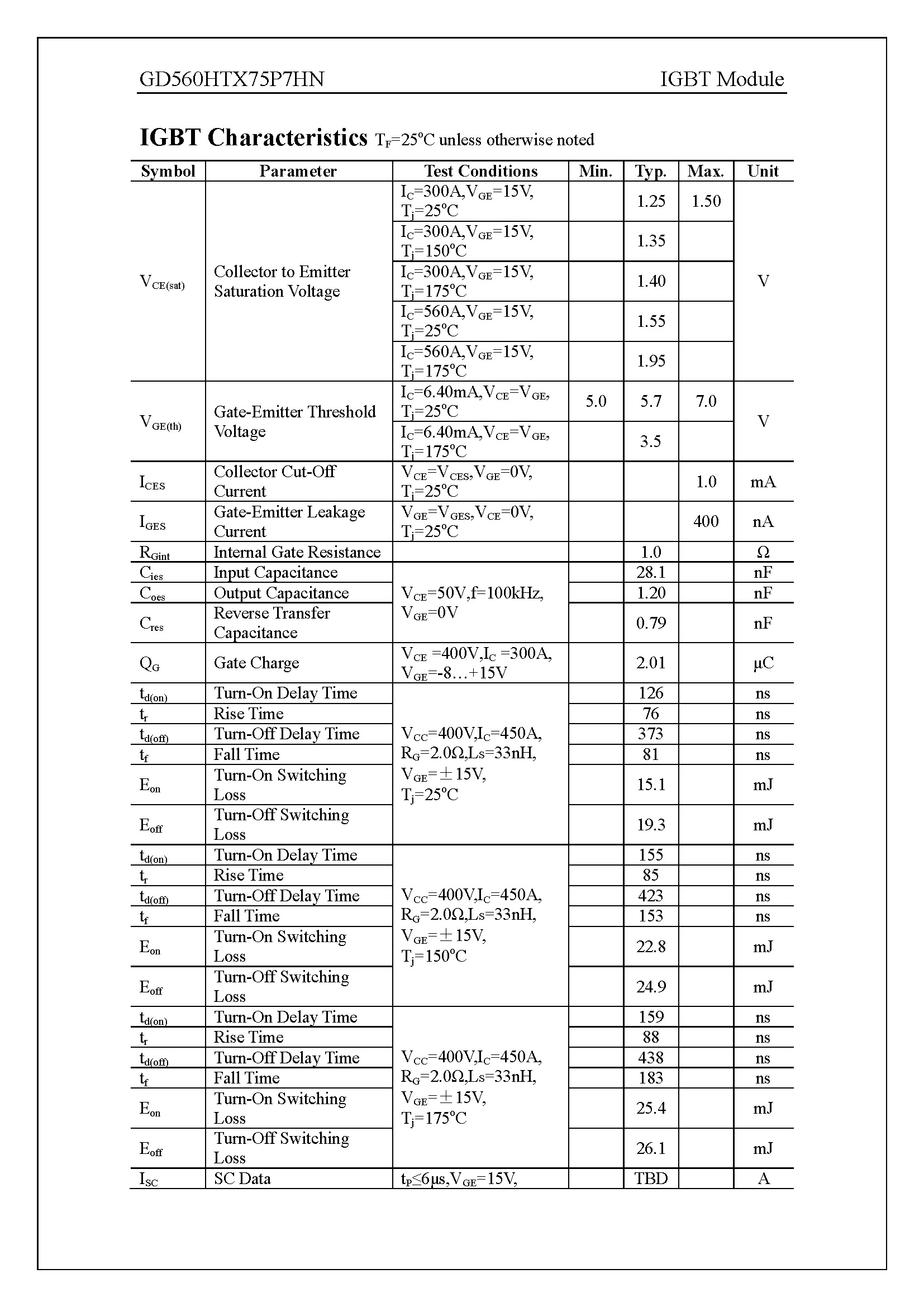

GD560HTX75P7HN-1_页面_03
