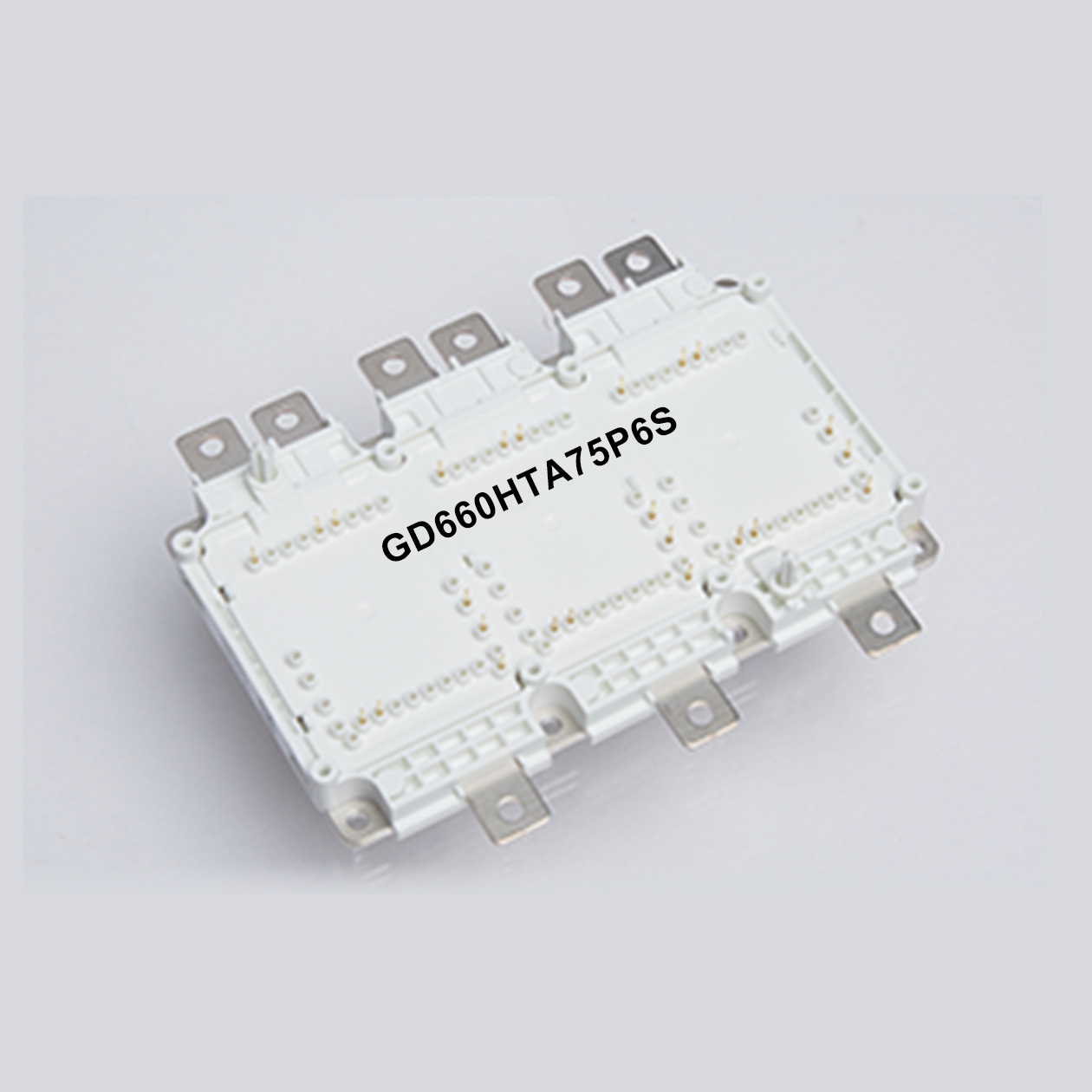

750V/660A Trench-FS Gen2 IGBT, P6, GD660HTA75P6S

750V/660A Trench-FS Gen2 IGBT
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • GD660HTA75P6S

  • Merry

750V/660A Trench-FS Gen2 IGBT, P6, GD660HTA75P6S
Package:P6
Rated Current:660A
Chip Type:Trench-FS Gen2
Rated Voltage:750V
Circuit Structure:Sixpack
Hallmark:Flat Substrates

Features :
- Low VCE(sat) Trench IGBT technology
- Low switching losses
- 6μs short circuit capability
- VCE(sat) with positive temperature coefficient
- Maximum junction temperature 175oC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology

Typical Applications :
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive

GD660HTA75P6SName1

1000_F_48893186

Name2


K7B-A5

Name1

1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name2

MG200HF12LEC2

Name1

MG25P12E1

Name2


products-1

Name1

GD300HFX170C2S

Name2

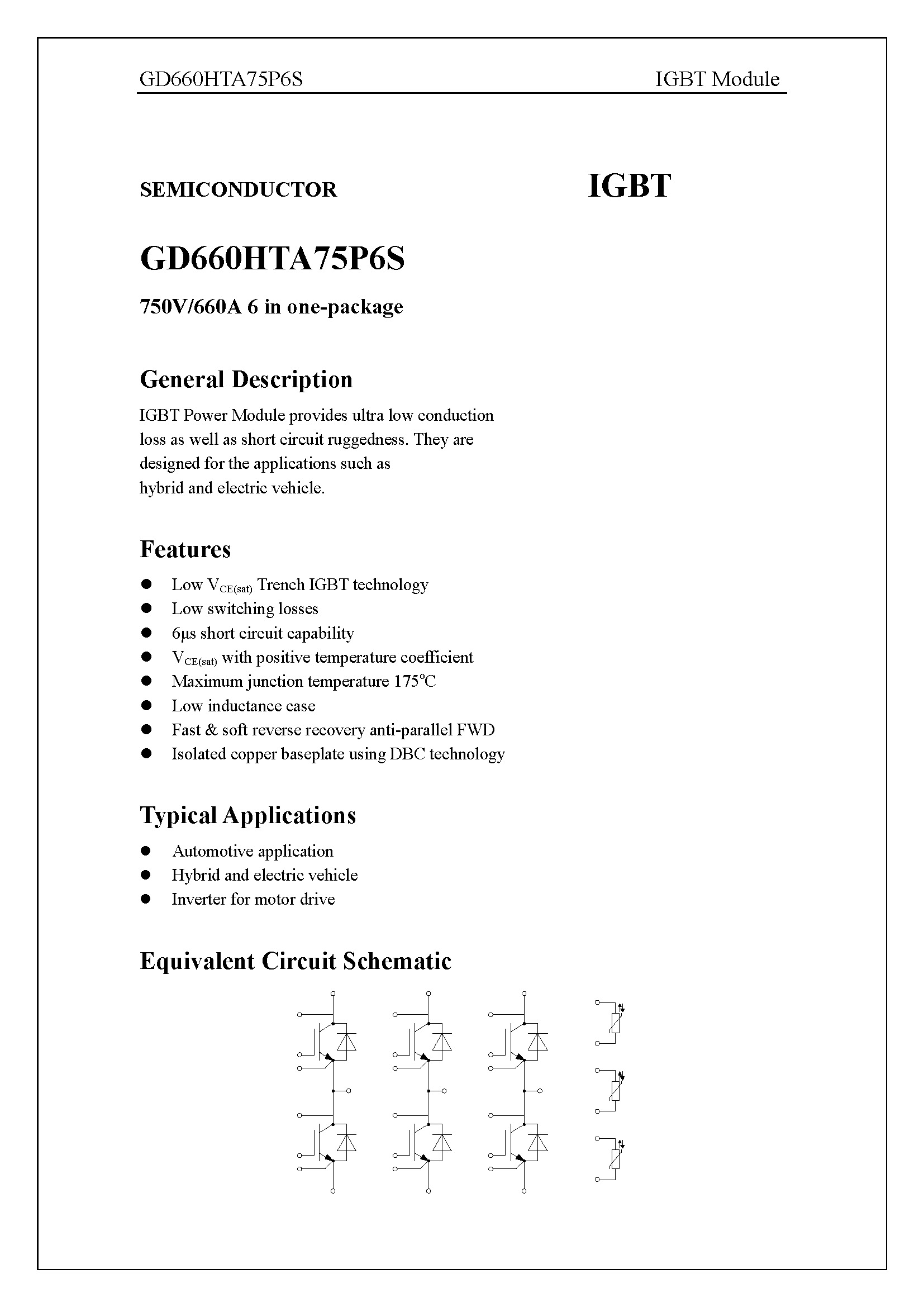

GD660HTA75P6S-1_页面_01

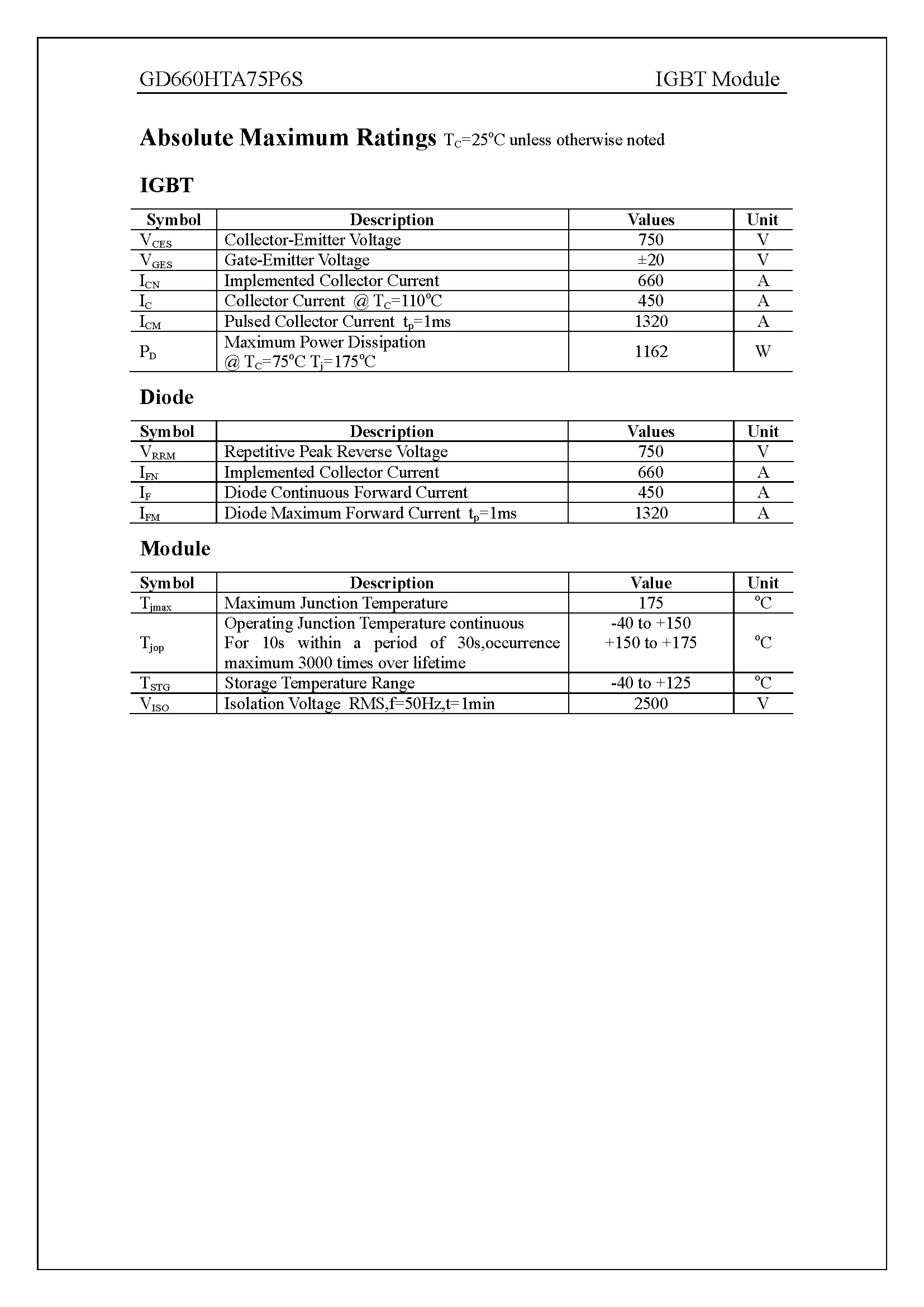

GD660HTA75P6S-1_页面_02

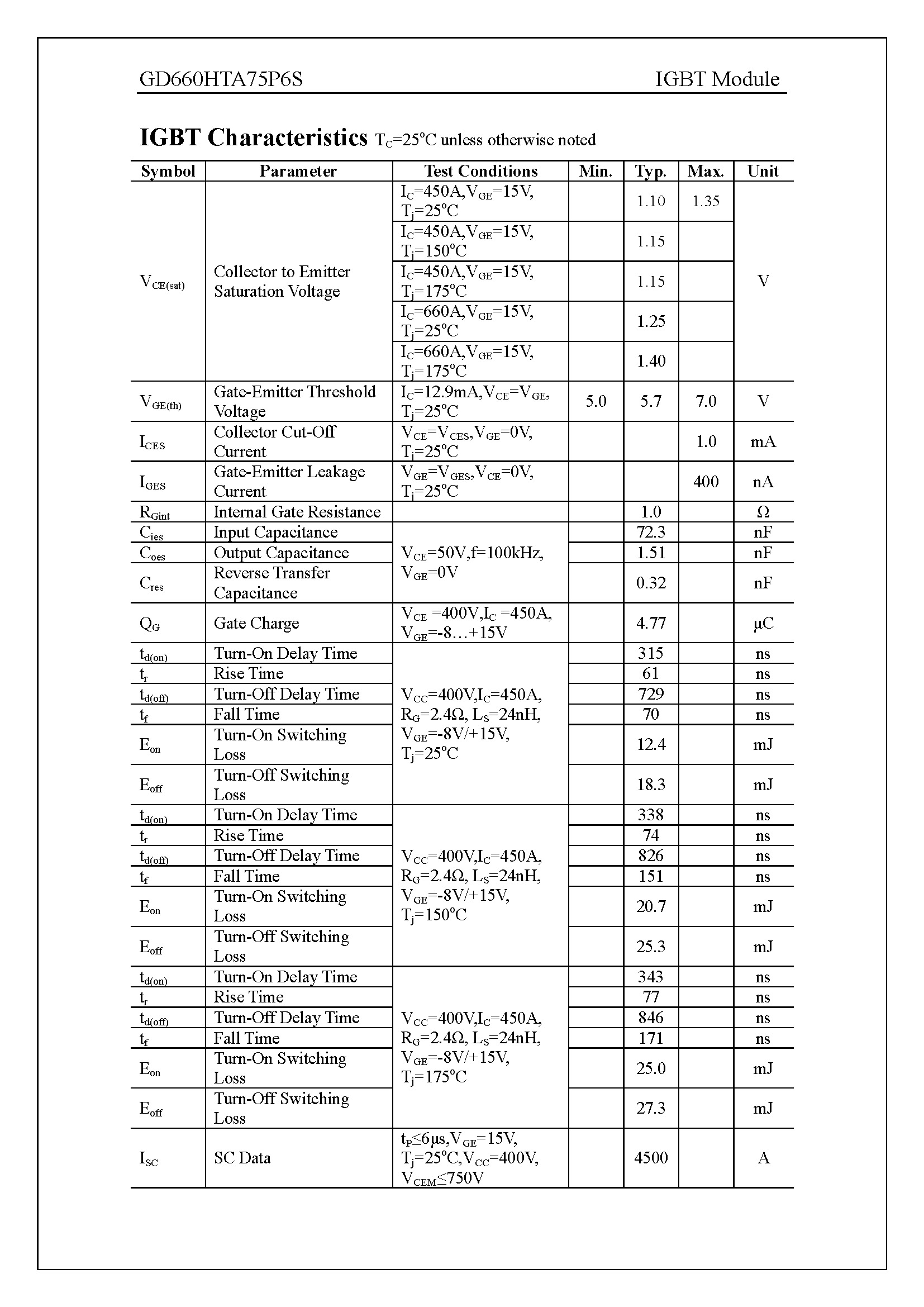

GD660HTA75P6S-1_页面_03
