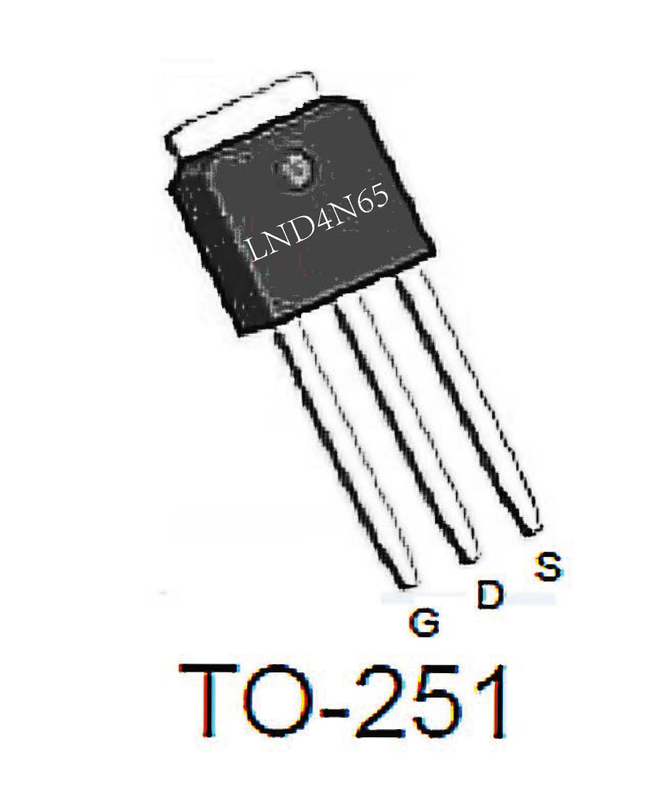

LND4N65
Product Name:

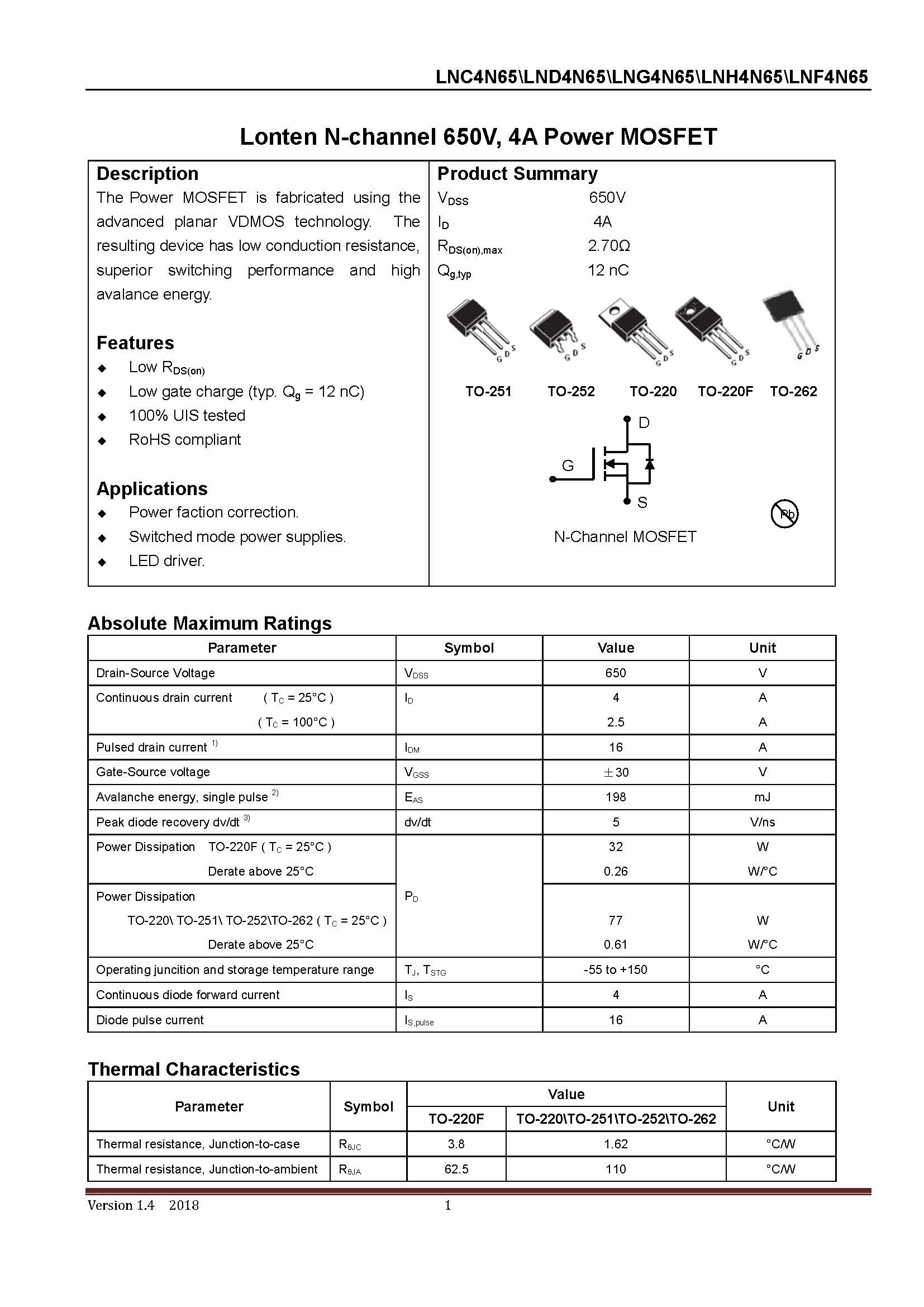

Lonten N-channel 650V, 4A Power MOSFET LNC4N65\LND4N65\LNG4N65\LNH4N65\LNF4N65
Product Description:
Description:
The Power MOSFET is fabricated using the
advanced planar VDMOS technology. The
resulting device has low conduction resistance,
superior switching performance and high
avalance energy.
Features:
Low RDS(on)
Low gate charge (typ. Qg = 12 nC)
100% UIS tested
RoHS compliant
Applications:
Power faction correction.
Switched mode power supplies.
LED driver.
Product Summary:
VDSS: 650V
ID: 4A
RDS(on),max: 2.70Ω
Qg,typ: 12 nC
Introducing the Lonten N-channel 650V, 4A Power MOSFET series, consisting of LNC4N65, LND4N65, LNG4N65, LNH4N65 and LNF4N65 models. These high-performance MOSFETs are designed to meet the demanding requirements of switching and amplifying electronic signals in various electronic devices.
With a voltage rating of 650V and a current handling capacity of 4A, these MOSFETs offer exceptional power management capabilities. Whether you need to efficiently control power flow or enhance signal amplification, the Lonten Power MOSFETs deliver reliable performance.
Designed with precision and expertise, these MOSFETs ensure optimal switching characteristics, enabling seamless transitions between on and off states. This results in improved efficiency and reduced power dissipation, making them ideal for applications where power conservation is crucial.
The Lonten N-channel 650V, 4A Power MOSFET series also boasts excellent thermal performance, allowing for reliable operation even in high-temperature environments. This ensures the longevity and stability of your electronic devices, minimizing the risk of overheating and subsequent damage.
Furthermore, these MOSFETs feature a compact and robust design, making them easy to integrate into various electronic systems. Their versatility allows for seamless integration into a wide range of applications, including power supplies, motor drives, lighting systems, and more.
When it comes to professional-grade power management and signal amplification, the Lonten N-channel 650V, 4A Power MOSFET series stands out as a reliable and efficient choice. With their exceptional performance, thermal stability, and versatile design, these MOSFETs are the perfect solution for your electronic device needs. Trust Lonten to deliver the highest quality components for your projects.
