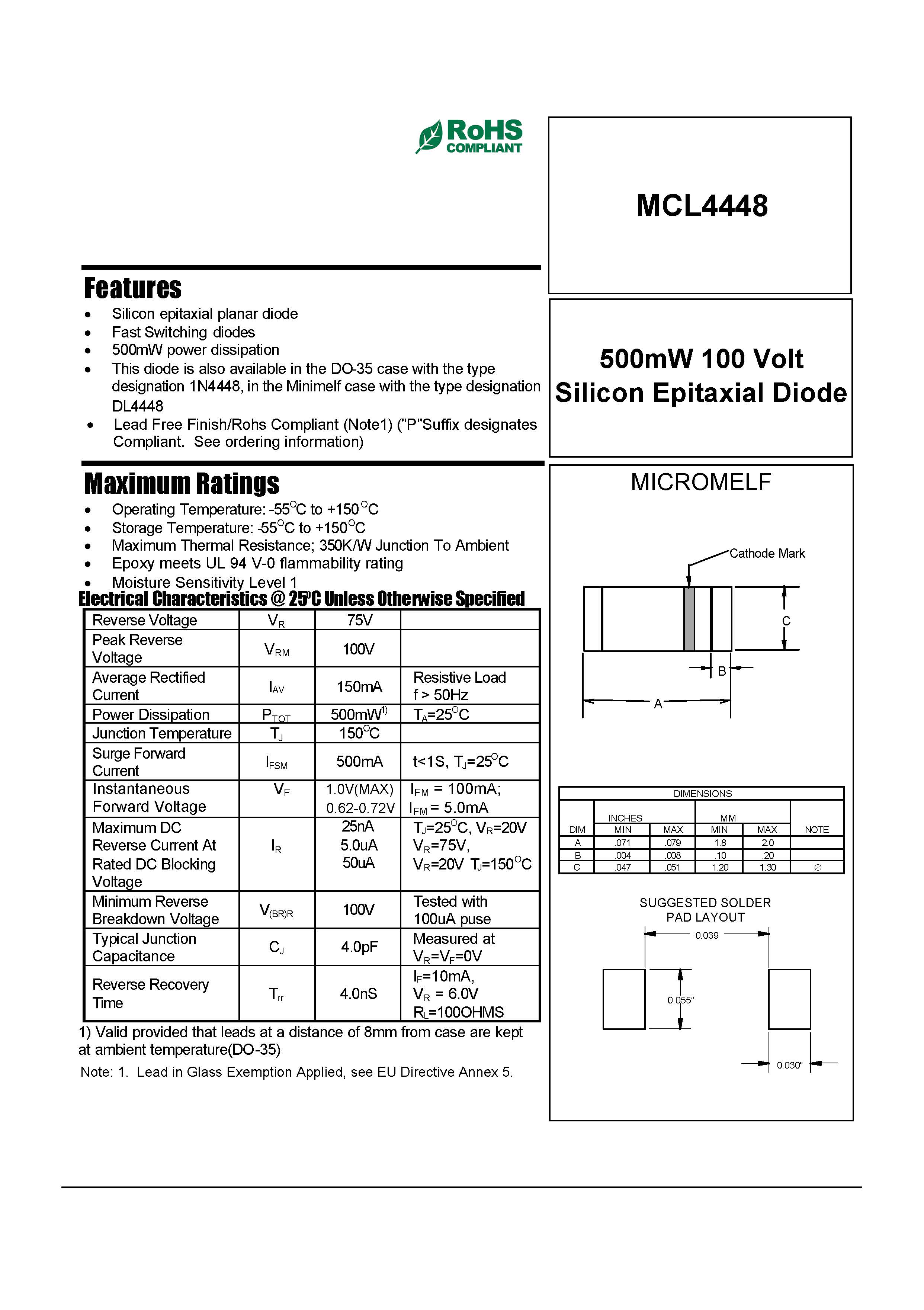

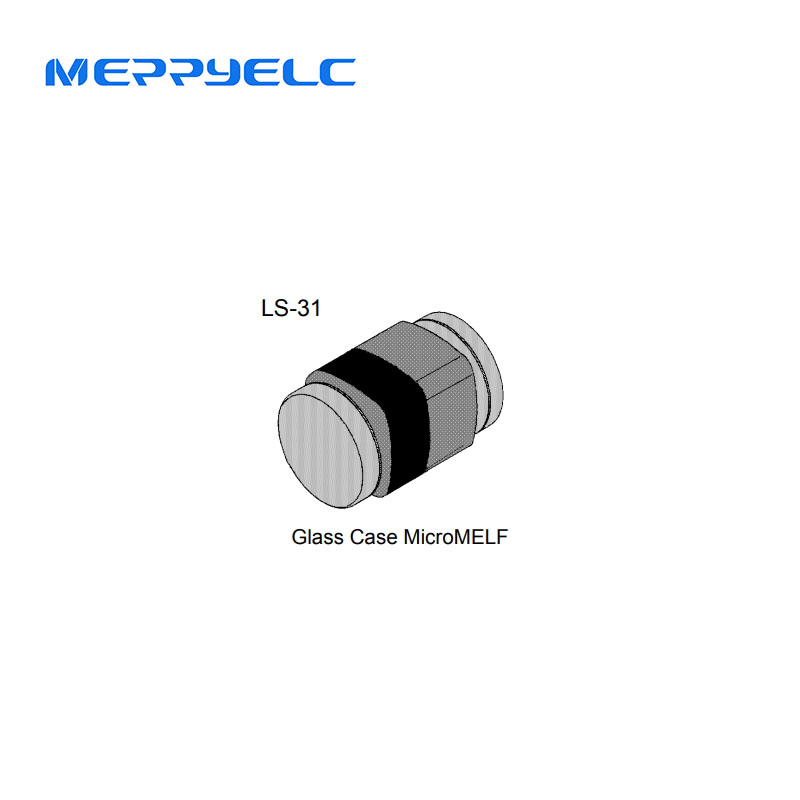

500mW 100 Volt Glass Case MicroMELF Silicon Epitaxial Planar Switching Diode MCL4448

Features
Silicon epitaxial planar diode
Fast Switching diodes500mW power dissipation
This diode is also available in the DO-35 case with the typedesignation 1N4448, in the Minimelf case with the type designationDL4448
Lead Free Finish/Rohs Compliant (Note1)("P"Suffix designatesCompliant..See ordering information)

Maximum Ratings
Operating Temperature: -55'c to +150°C
Storage Temperature: -55'C to +150'C
Maximum Thermal Resistance, 350K/ Junction To Ambient
Epoxy meets UL 94 V-0 flammability ratingMoisture Sensitivity Level 1

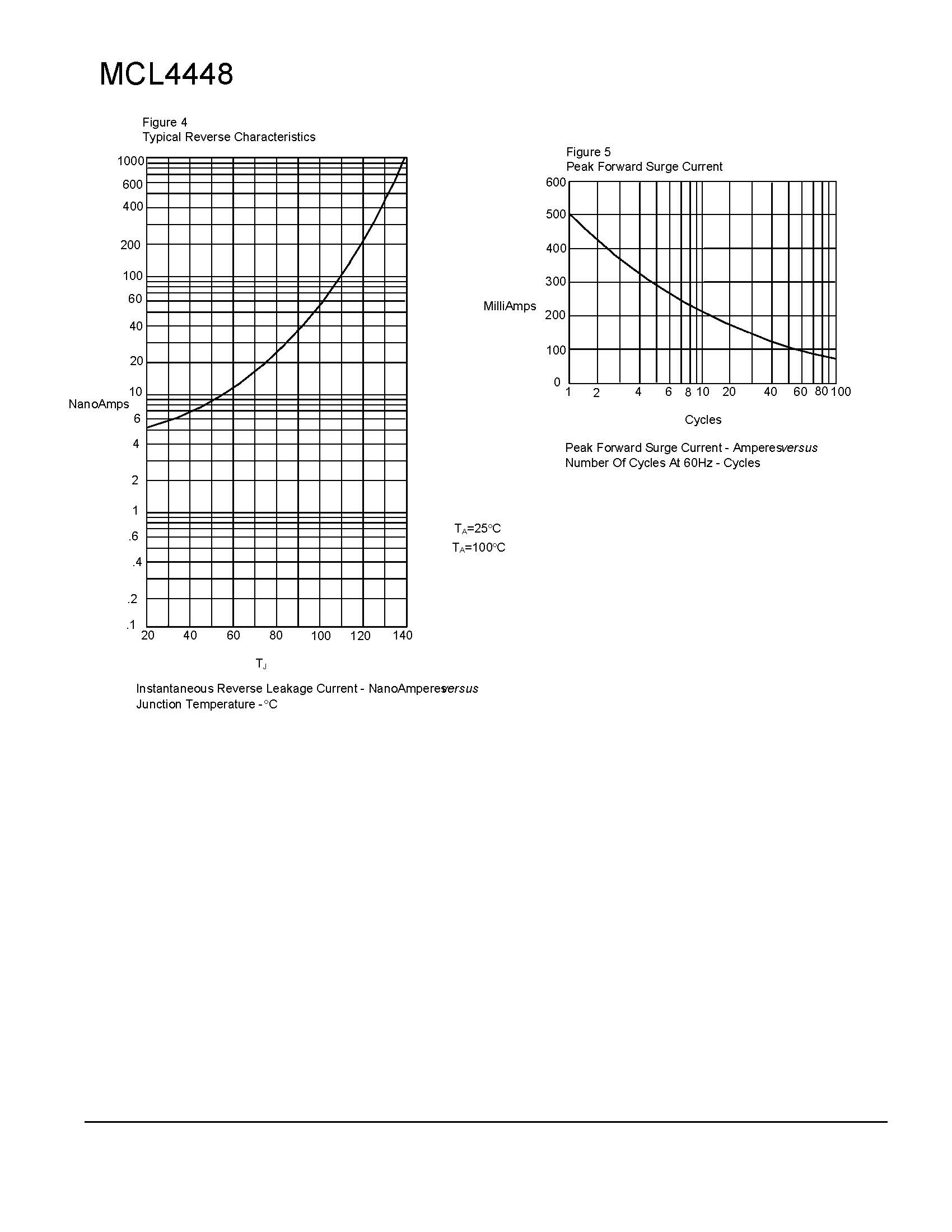

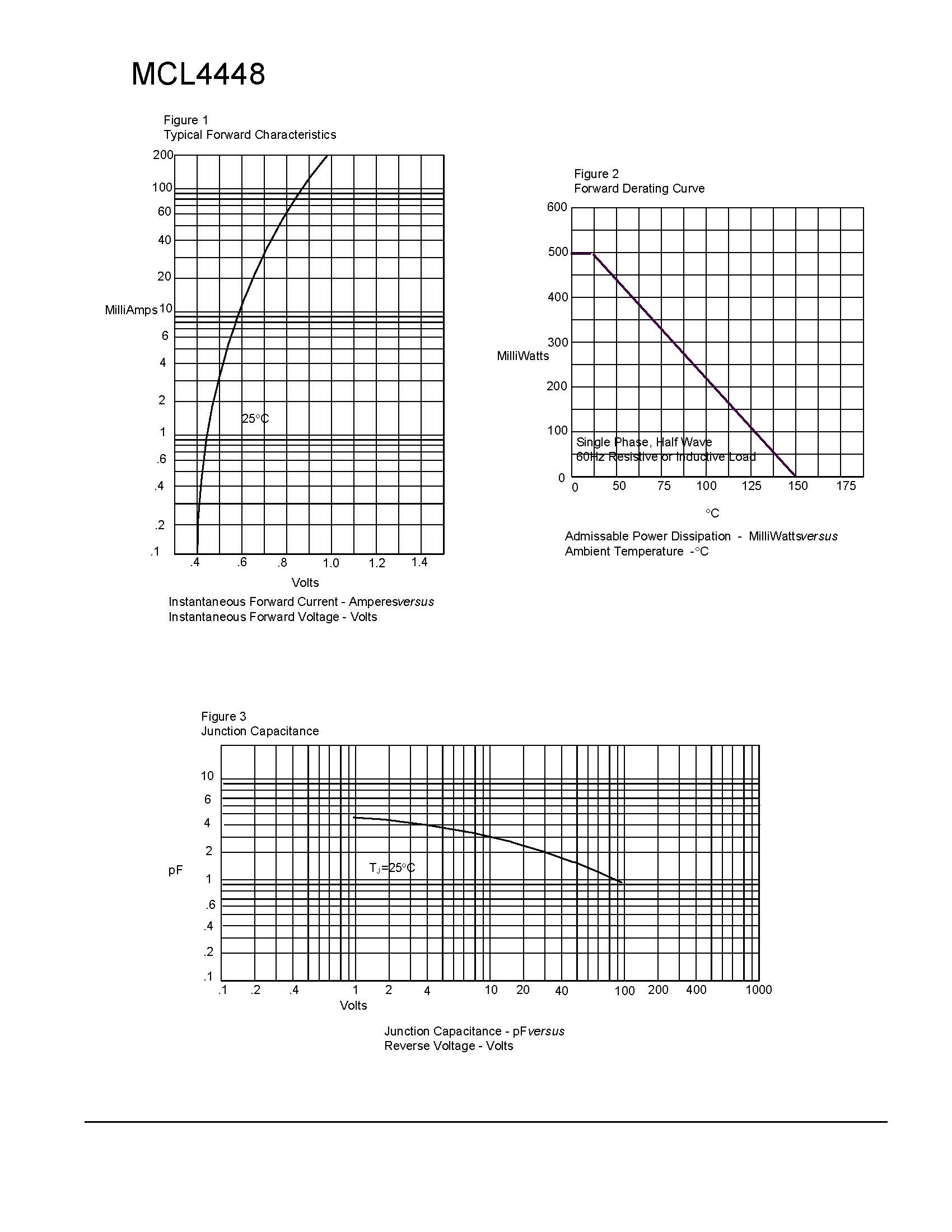

MCL4448.pdf
