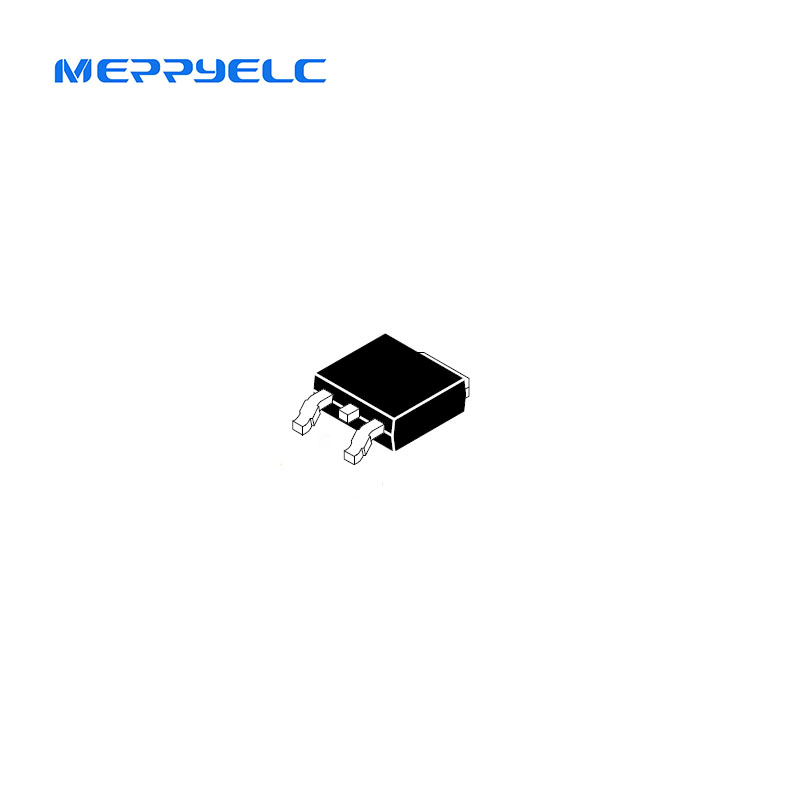

DPAK for Surface Mount 8 AMPERES 80 VOLTS 20 WATTS Silicon Power Transistors MJD45H11

Designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.

Features
• Lead Formed for Surface Mount Application in Plastic Sleeves (No Suffix)
• Straight Lead Version in Plastic Sleeves ("−1" Suffix)
• Electrically Similar to Popular D44H/D45H Series
• Low Collector Emitter Saturation Voltage
• Fast Switching Speeds
• Complementary Pairs Simplifies Designs
• Epoxy Meets UL 94 V−0 @ 0.125 in
• NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
