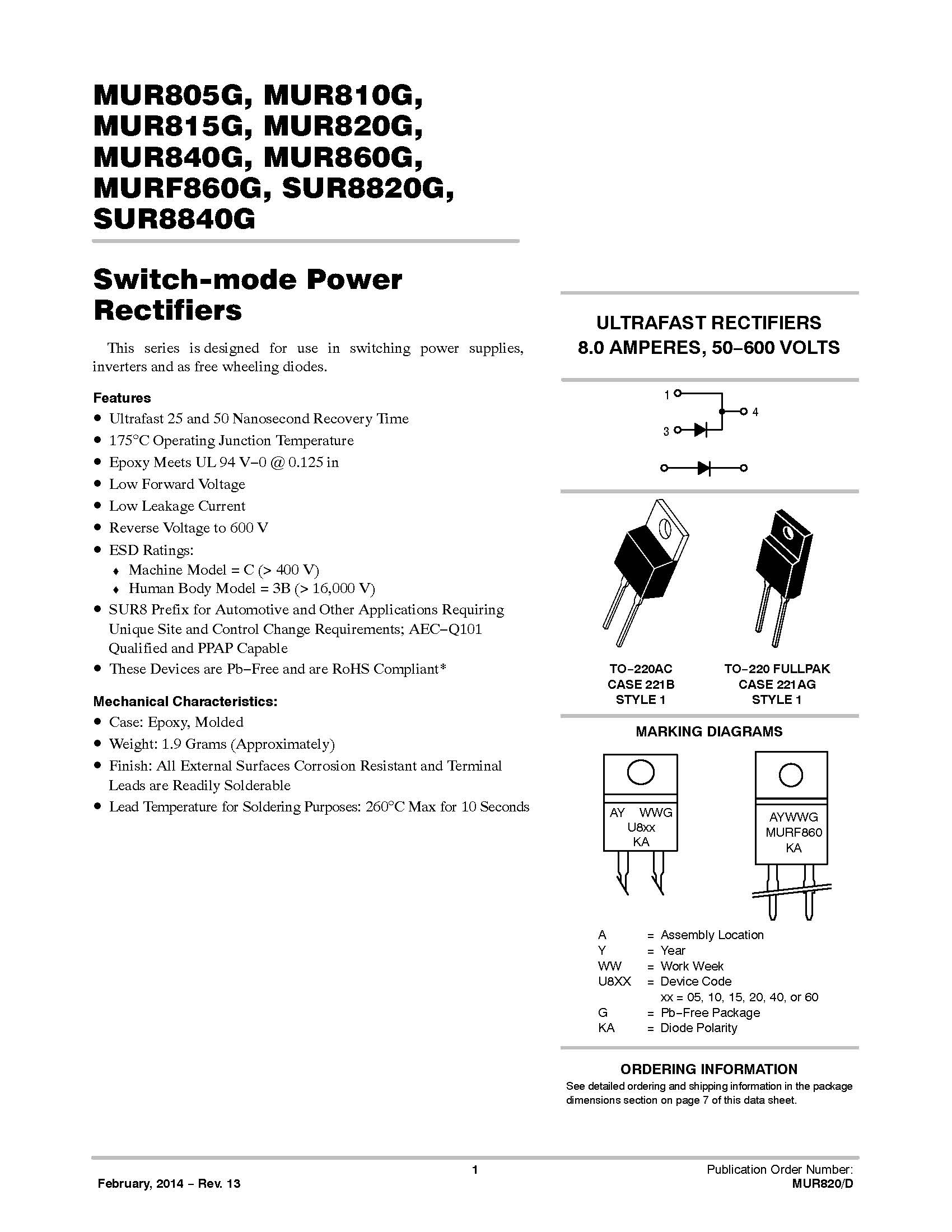

MUR860
This series is designed for use in switching power supplies, inverters and as free wheeling diodes.
Features
• Ultrafast 25 and 50 Nanosecond Recovery Time
• 175°C Operating Junction Temperature
• Epoxy Meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• Reverse Voltage to 600 V
• ESD Ratings:
♦ Machine Model = C (> 400 V)
♦ Human Body Model = 3B (> 16,000 V)
• SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant*
Mechanical Characteristics:

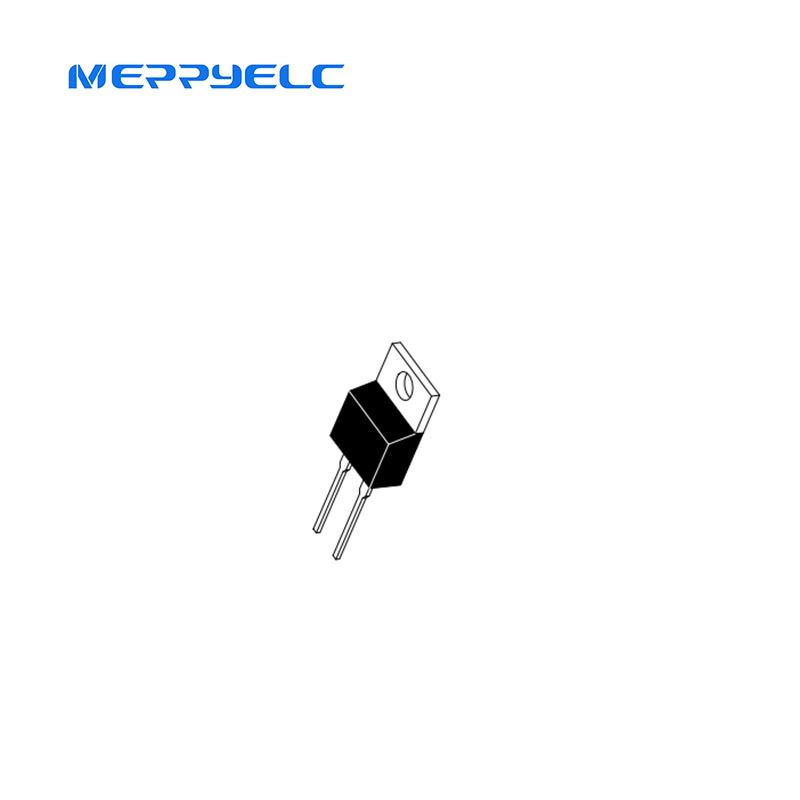

• Case: Epoxy, Molded
• Weight: 1.9 Grams (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max for 10 Seconds
