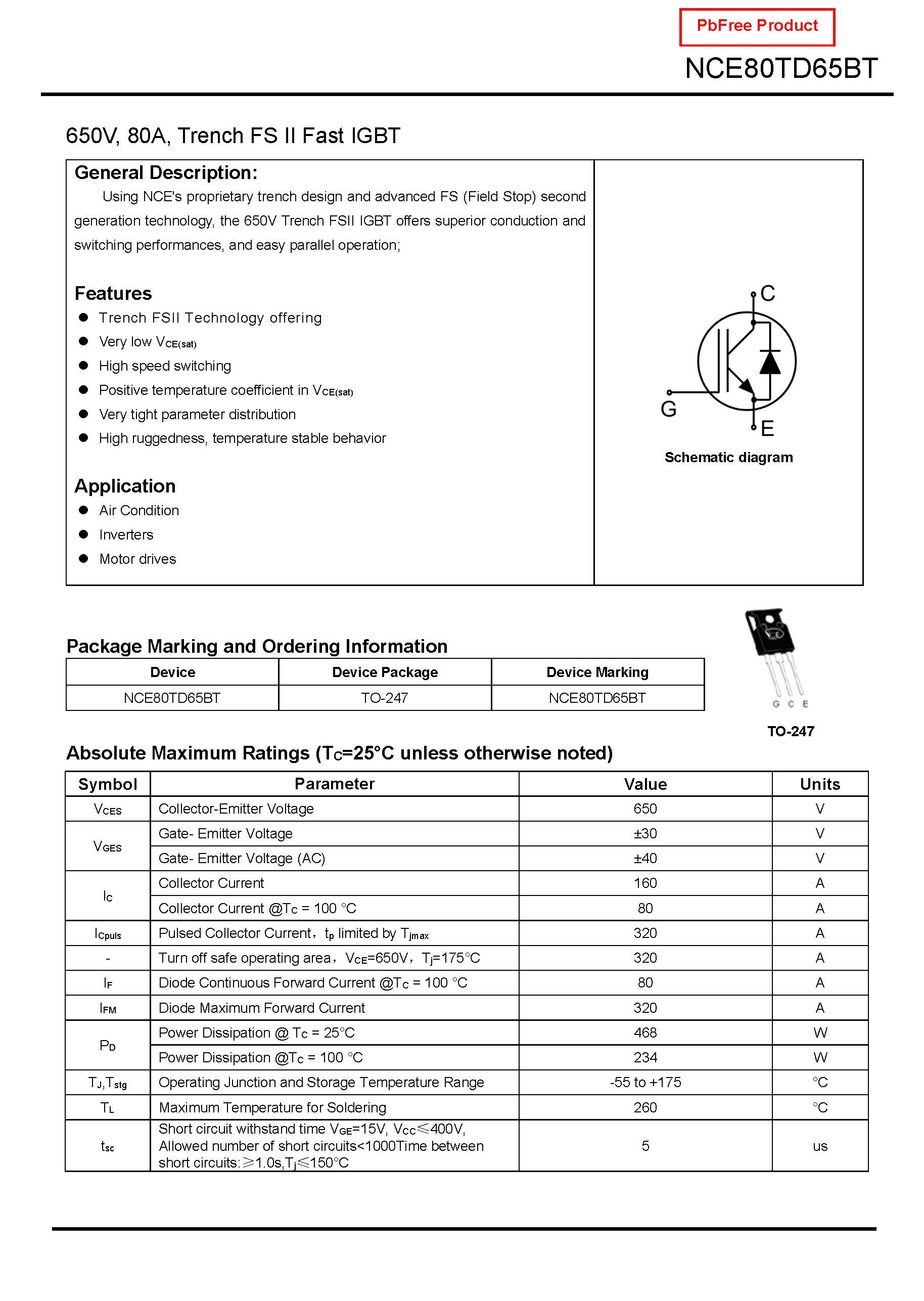

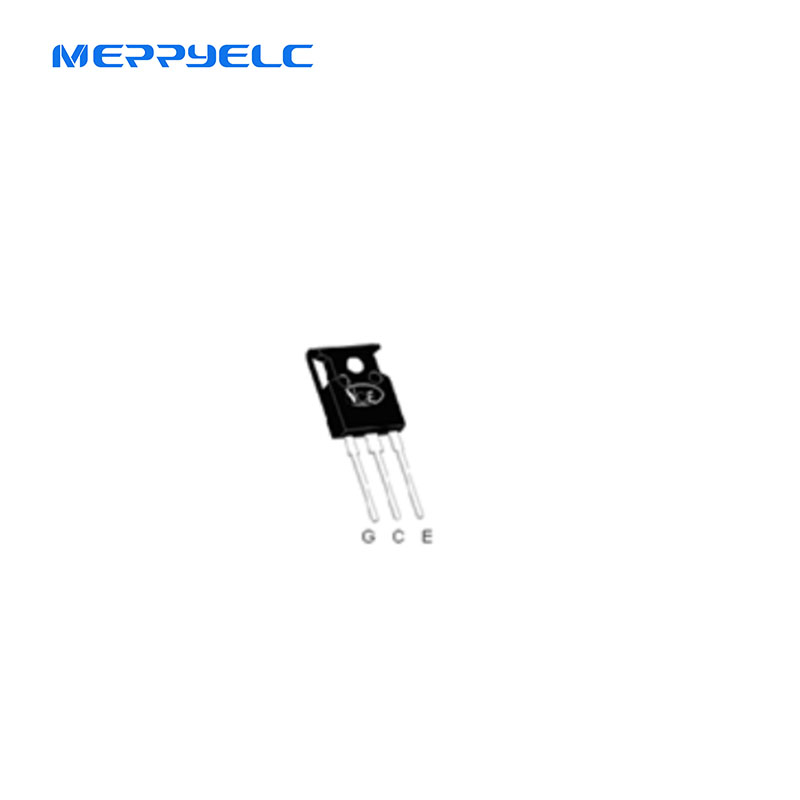

650V 80A Trench Field Stop II Fast IGBT TO-247 NCE80TD65BT

General Description:
Using NCE's proprietary trench design and advanced FS (Field Stop) second generation technology, the 650V Trench FSII IGBT offers superior conduction and switching performances, and easy parallel operation;

Features
Trench FSII Technology offering
Very low VCE(sat)
High speed switching
Positive temperature coefficient in VCE(sat)
Very tight parameter distribution
High ruggedness, temperature stable behavior

Application
Air Condition
Inverters
Motor drives

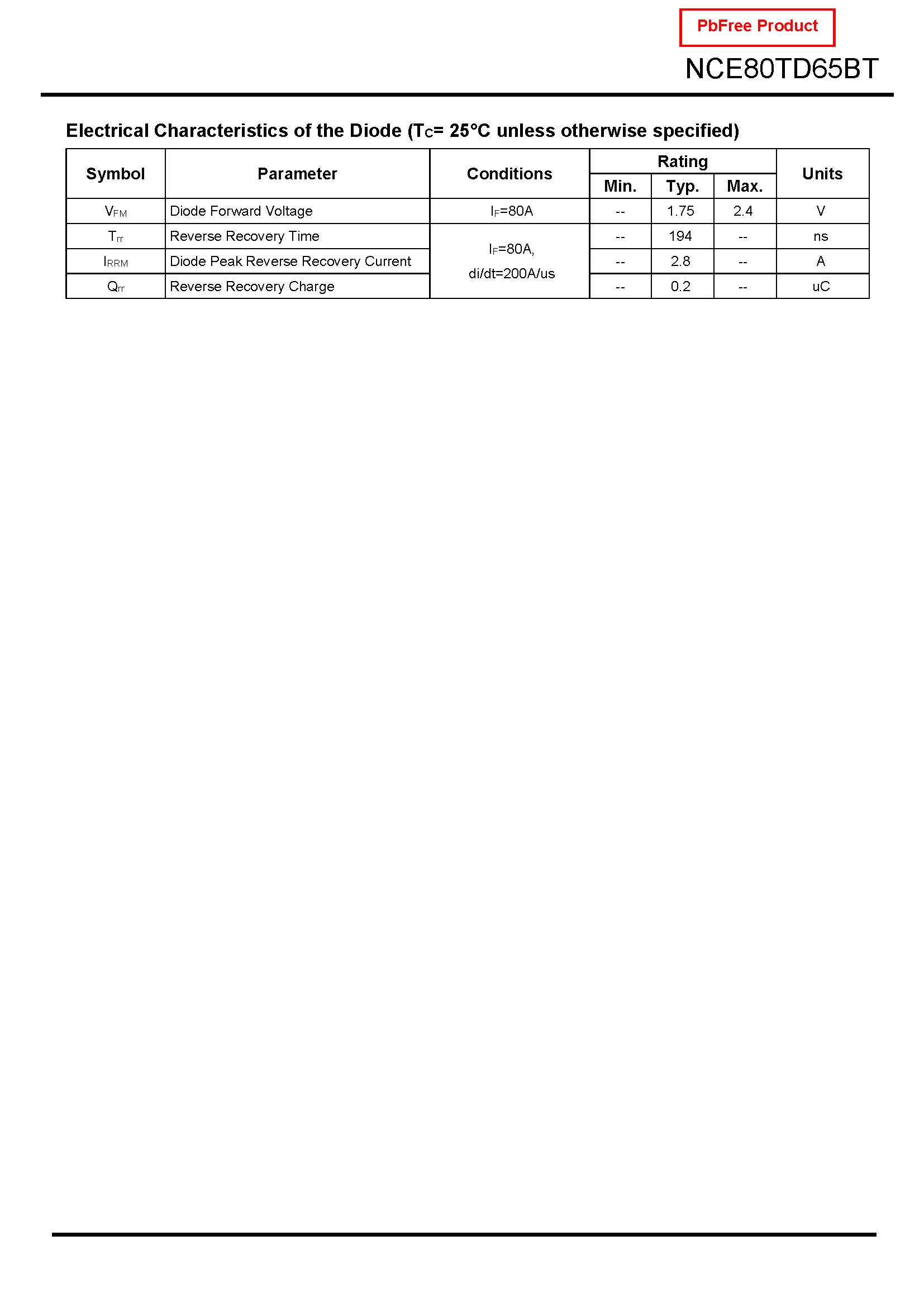

NCE80TD65BT.pdf
