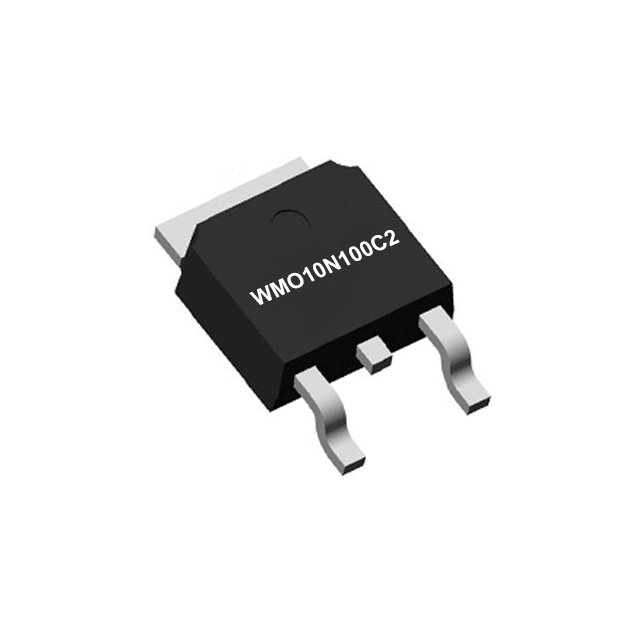

1000V 1.1Ω Super Junction Power MOSFET, VDS: 1000V, ID: 5.5A, VGS: 30V, fetures, applications, TO-252, WMO10N100C2

- Part No.:WMO10N100C2
- Description:N-Channel SJ-MOS C2
- Package:TO-252
- VDS (V):1000
- RDS(on) (Ω) @VGS=10V(max.):1.4
- ID (A) @TA=25ºC:5.5
- PD (W) @TA=25ºC:65
- VGS (V):30
- VGS(th) (V) (Typ.):3.5


Features :

- VDS= 1050V@Tjmax
- Typ. Rds(on)=1.1Ω
- Pb-Free plating, Halogen free
- 100% UIS tested


Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WMO10N100C2

  • Merry

1000V 1.1Ω Super Junction Power MOSFET, VDS: 1000V, ID: 5.5A, VGS: 30V, fetures, applications, TO-252, WMO10N100C2

- Part No.:WMO10N100C2
- Description:N-Channel SJ-MOS C2
- Package:TO-252
- VDS (V):1000
- RDS(on) (Ω) @VGS=10V(max.):1.4
- ID (A) @TA=25ºC:5.5
- PD (W) @TA=25ºC:65
- VGS (V):30
- VGS(th) (V) (Typ.):3.5


Features :

- VDS= 1050V@Tjmax
- Typ. Rds(on)=1.1Ω
- Pb-Free plating, Halogen free
- 100% UIS tested


Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server


WMO10N100C2

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

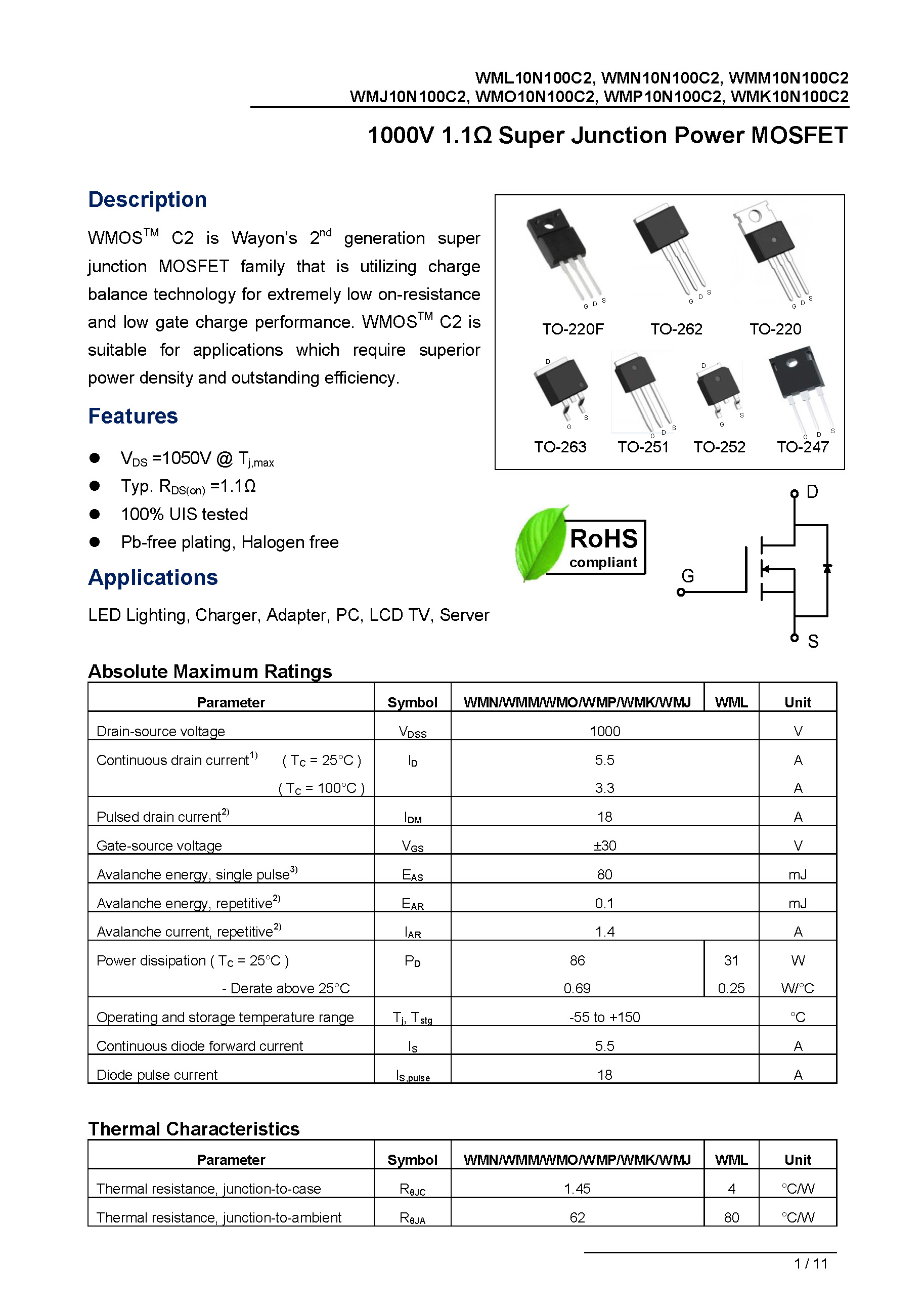

WMO10N100C2-1_页面_01

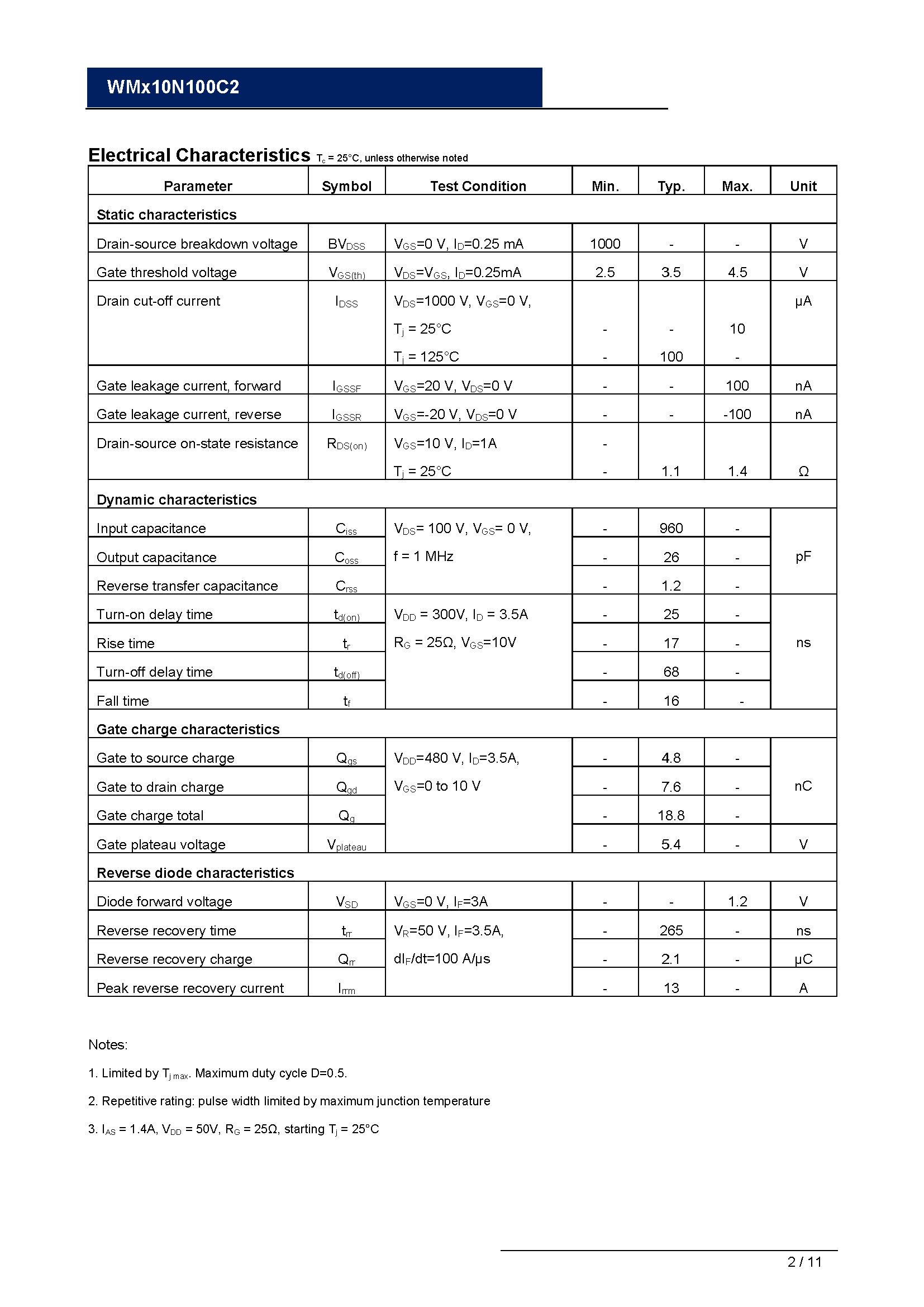

WMO10N100C2-1_页面_02

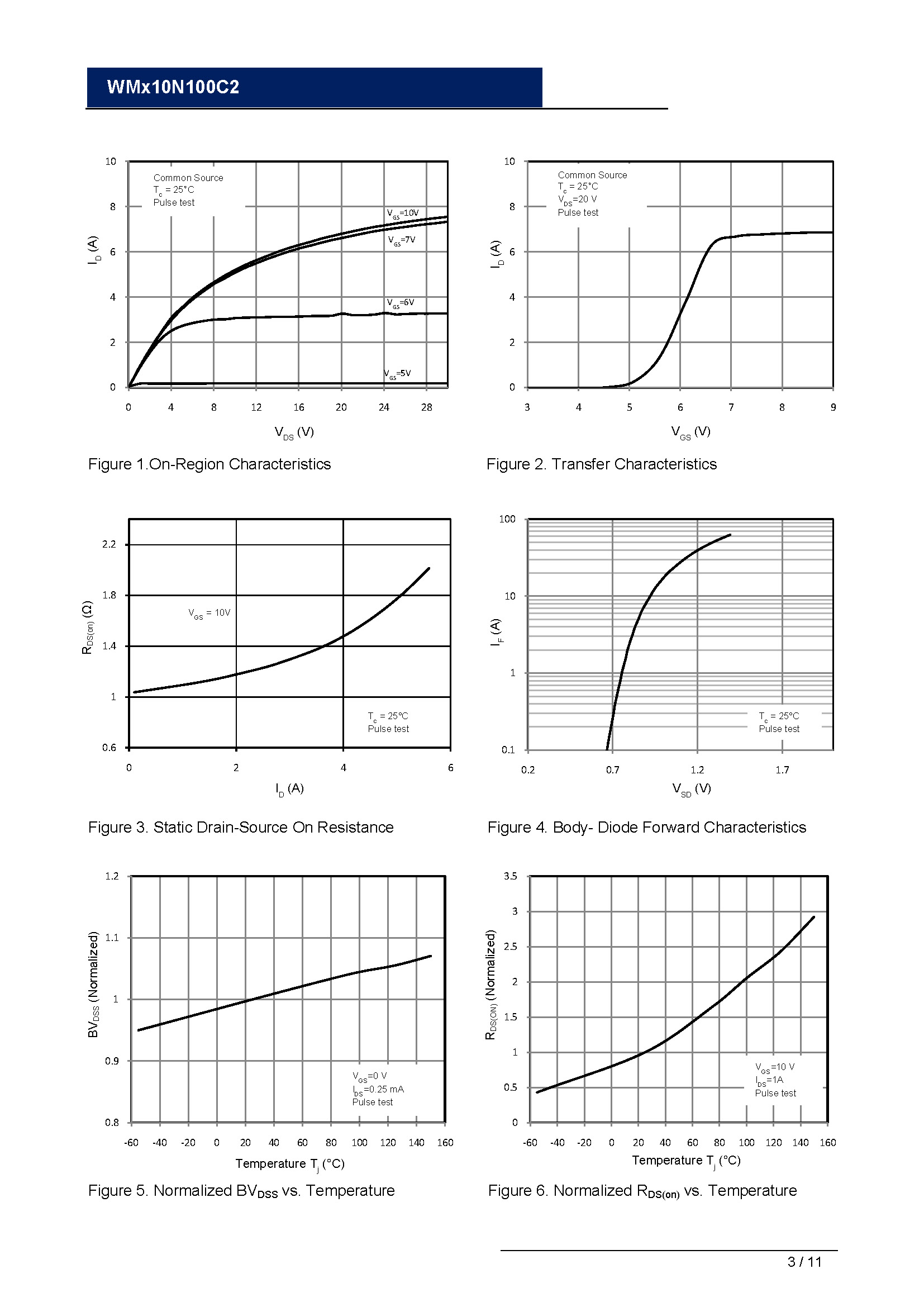

WMO10N100C2-1_页面_03

WMO10N100C2-1_页面_06

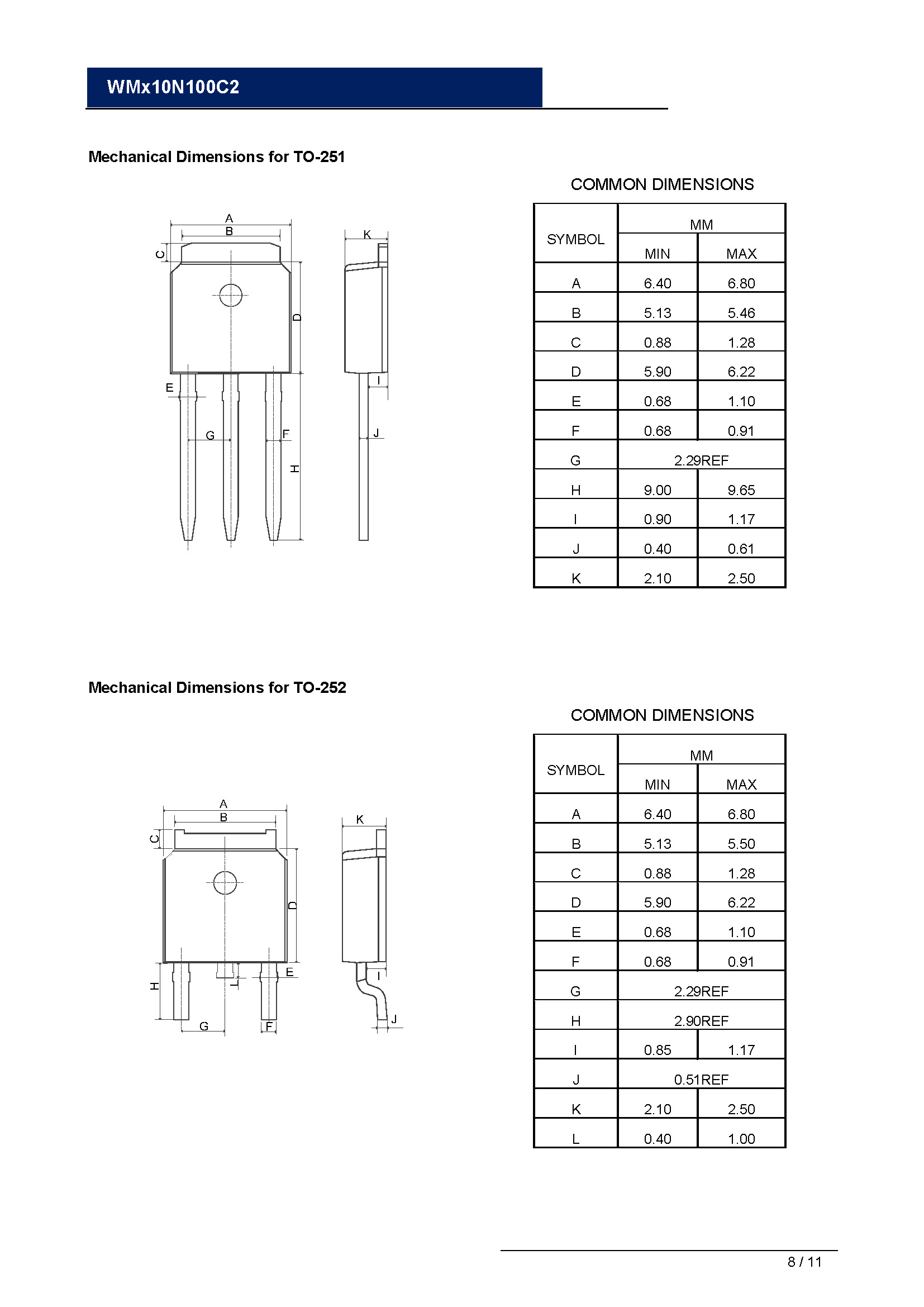

WMO10N100C2-1_页面_08
