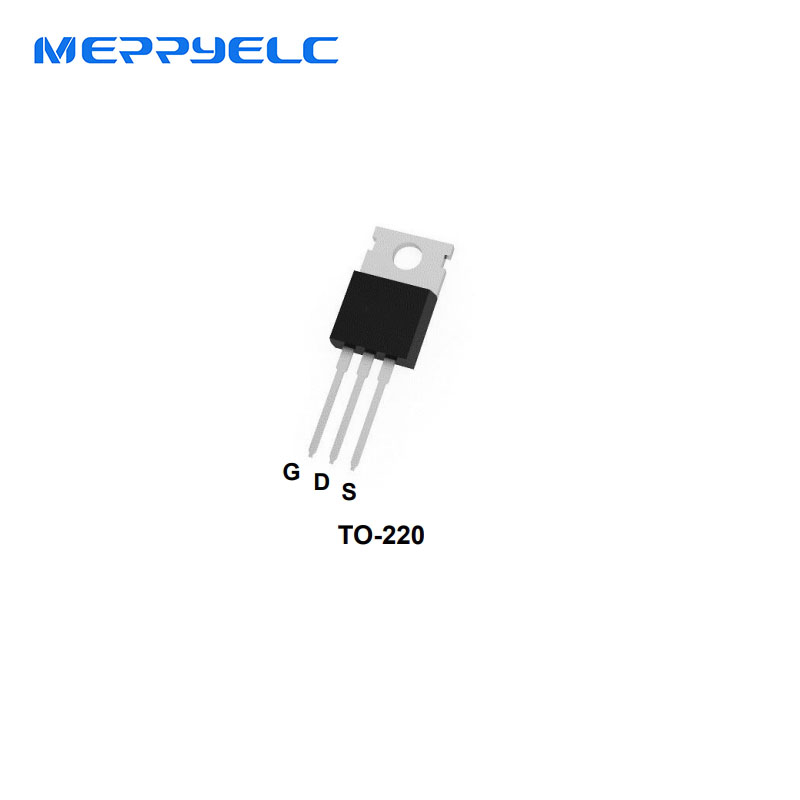

150V 120A Single N-channel Trench MOSFET TO-220 MDP15N075TH

150V 120A Single N-channel Trench MOSFET TO-220 MDP15N075TH
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MDP15N075TH

General Description
The MDP15N075TH uses advanced Magnachip's MV MOSFET Technology, which provides high performance in on-state resistance, fast switching performance, and excellent quality.


Applications
These devices can also be utilized in industrial applications such as Low Power Drives of E-bike (E-Vehicles), DC/DC converter, and general purpose applications.

Features
VDS = 150V
ID = 120A @VGS = 10V
Very low on-resistance RDS(ON) < 7.5 mΩ @VGS = 10V
100% UIL Tested
100% Rg Tested

MDP15N075TH.pdf

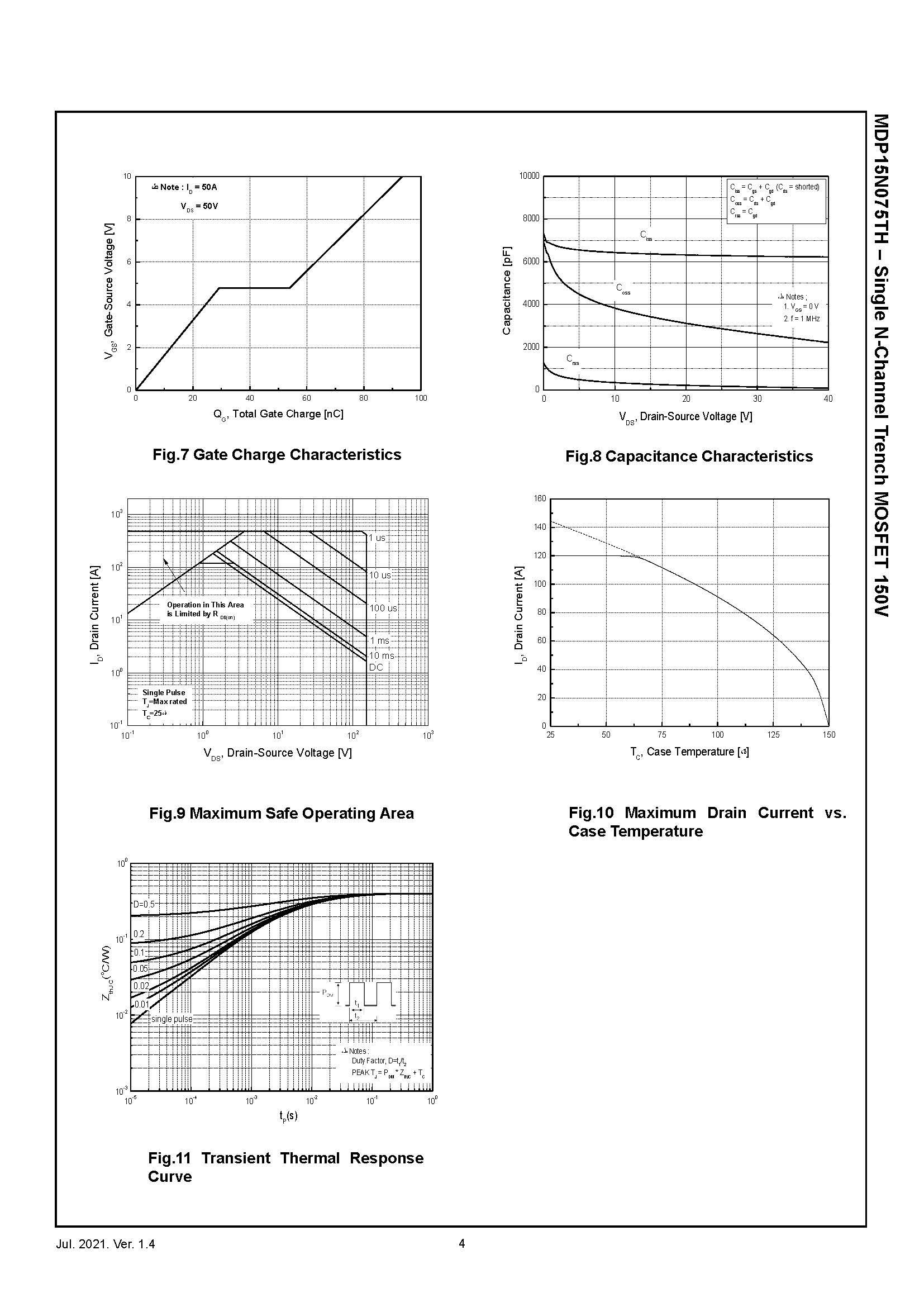

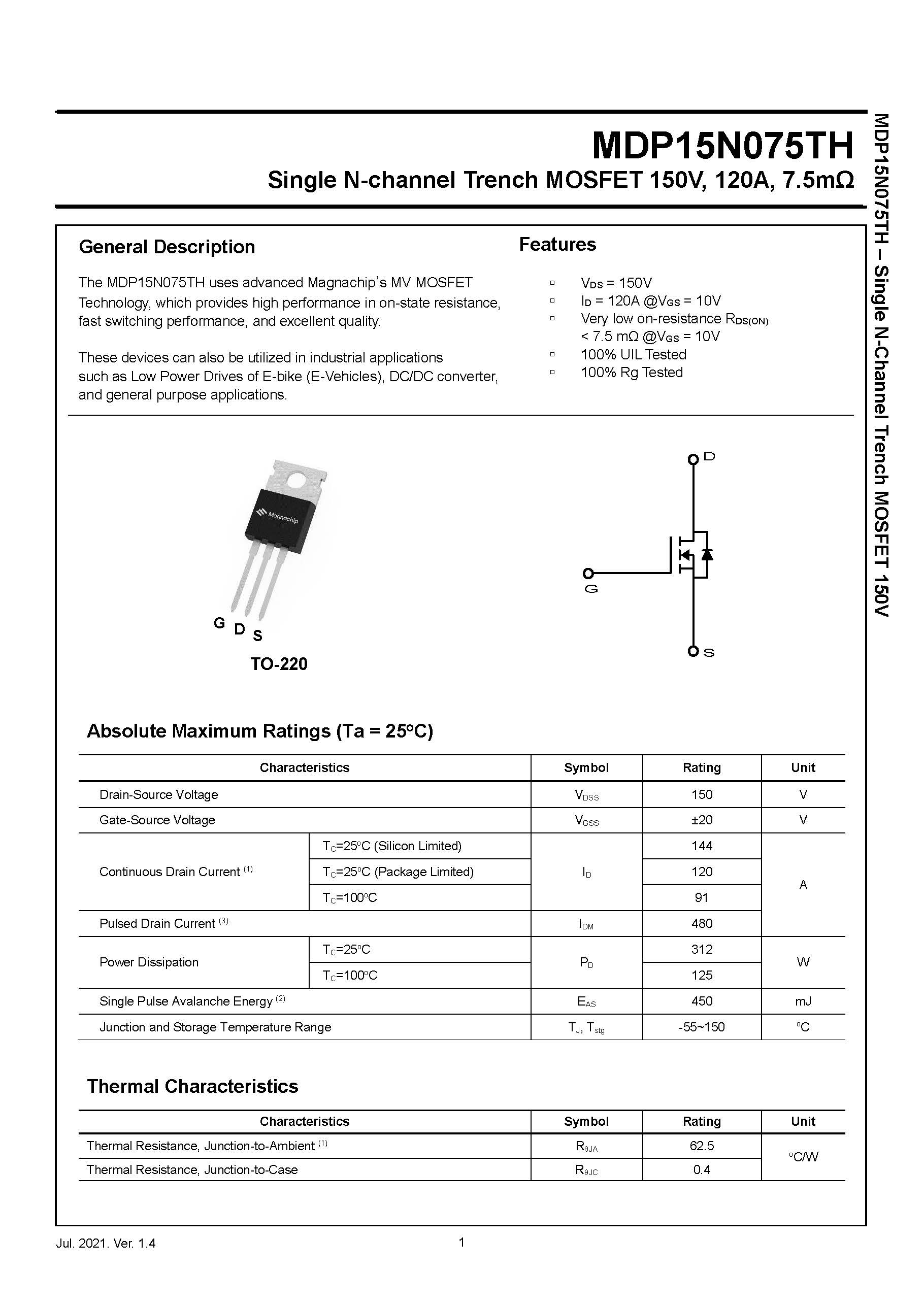

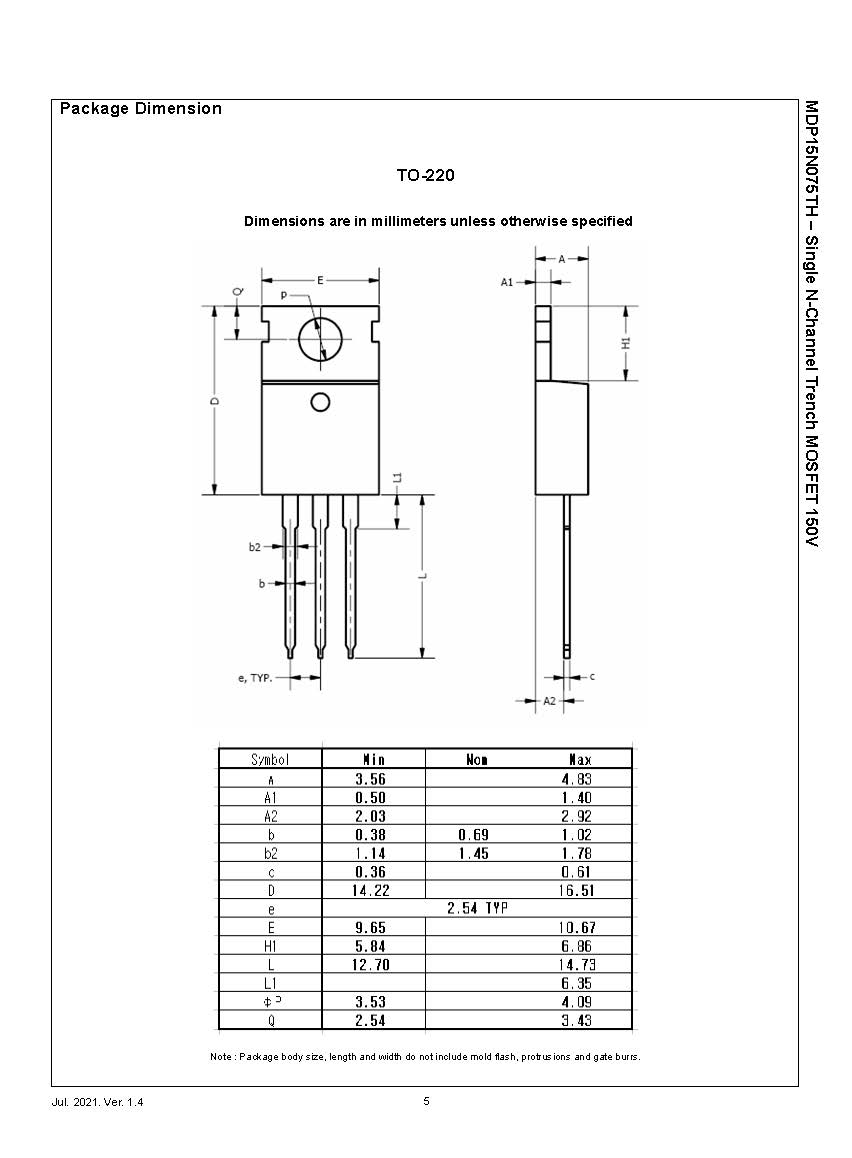

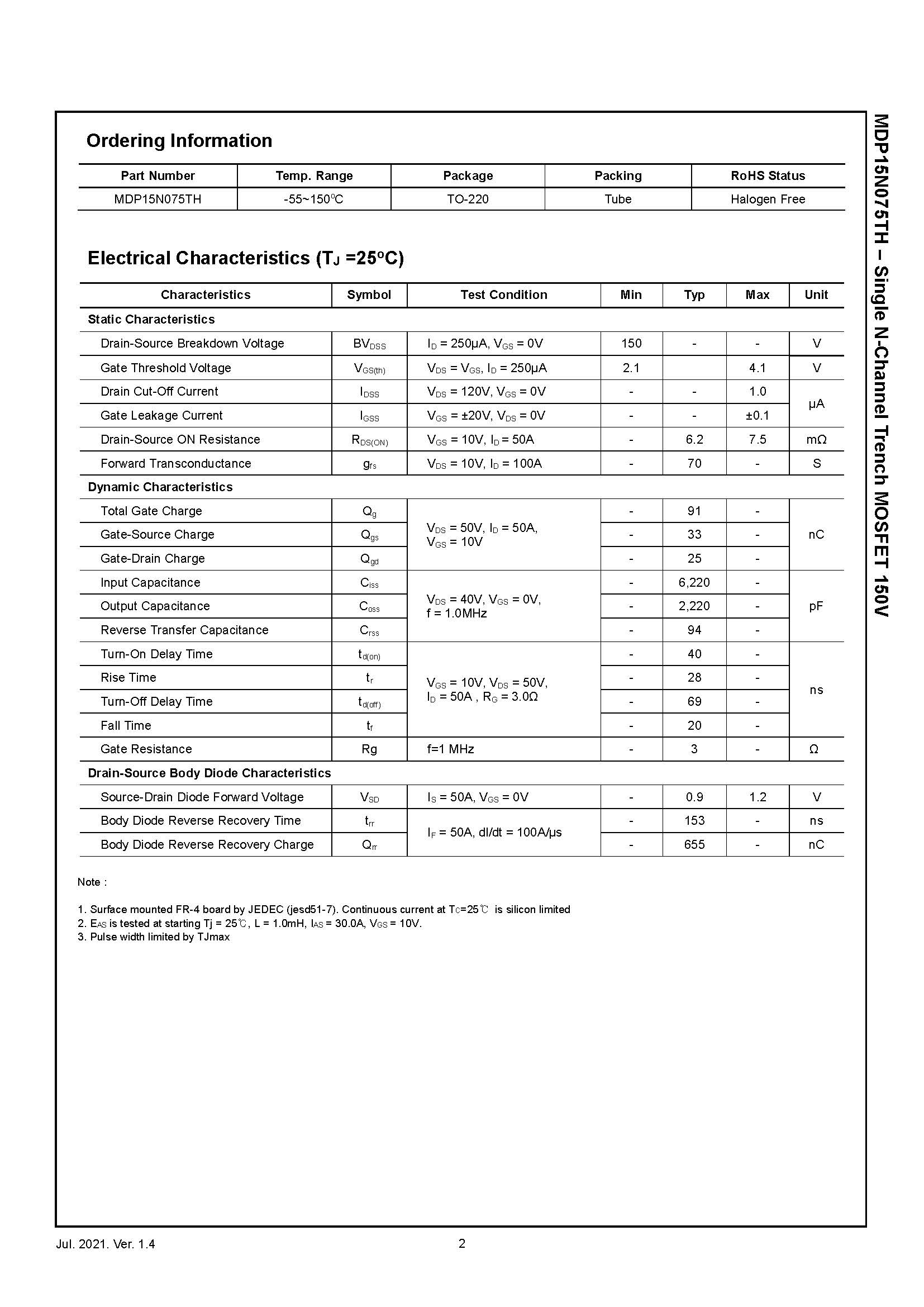

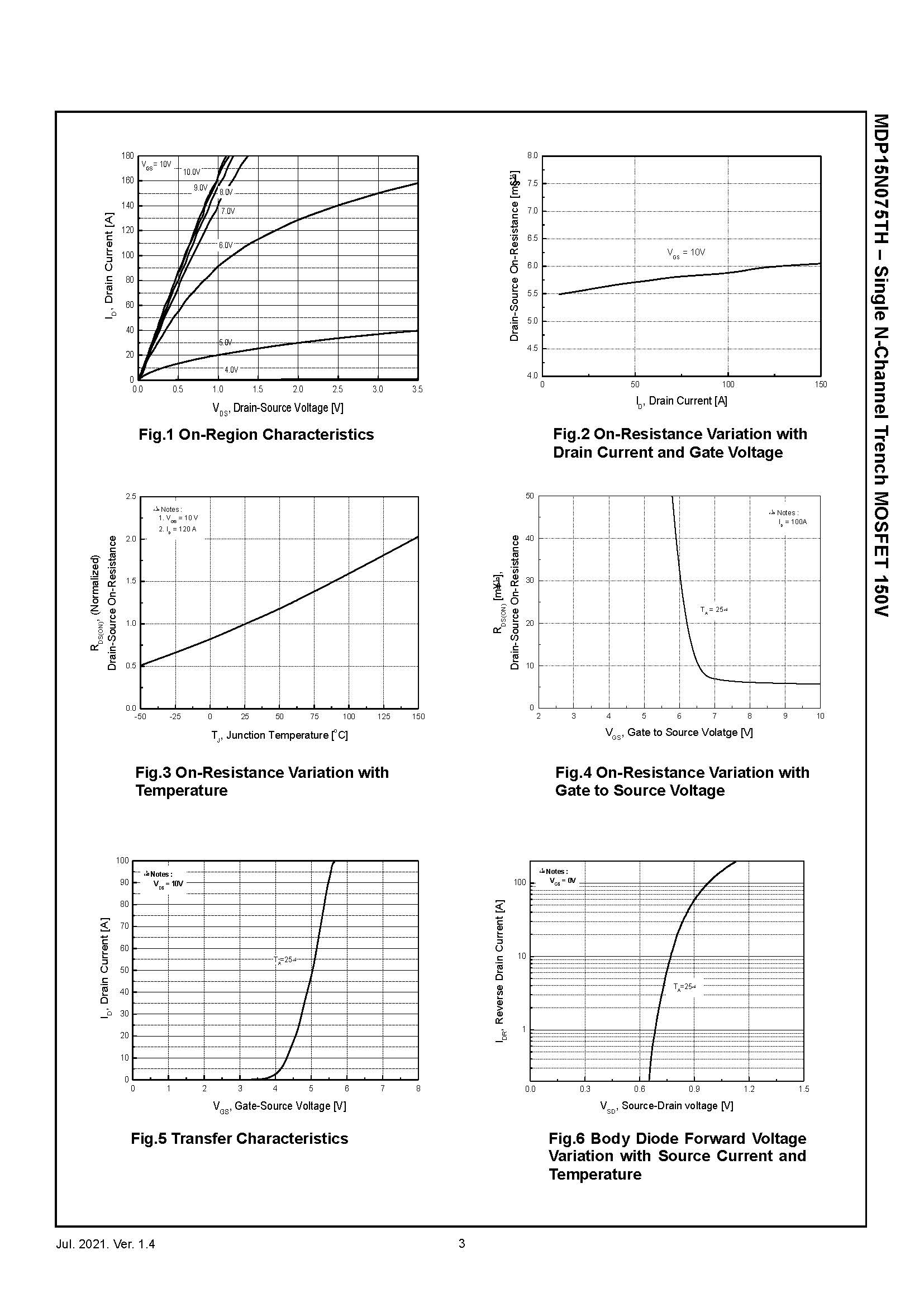

MDP15N075TH_页面_1MDP15N075TH_页面_2MDP15N075TH_页面_3MDP15N075TH_页面_4MDP15N075TH_页面_5
