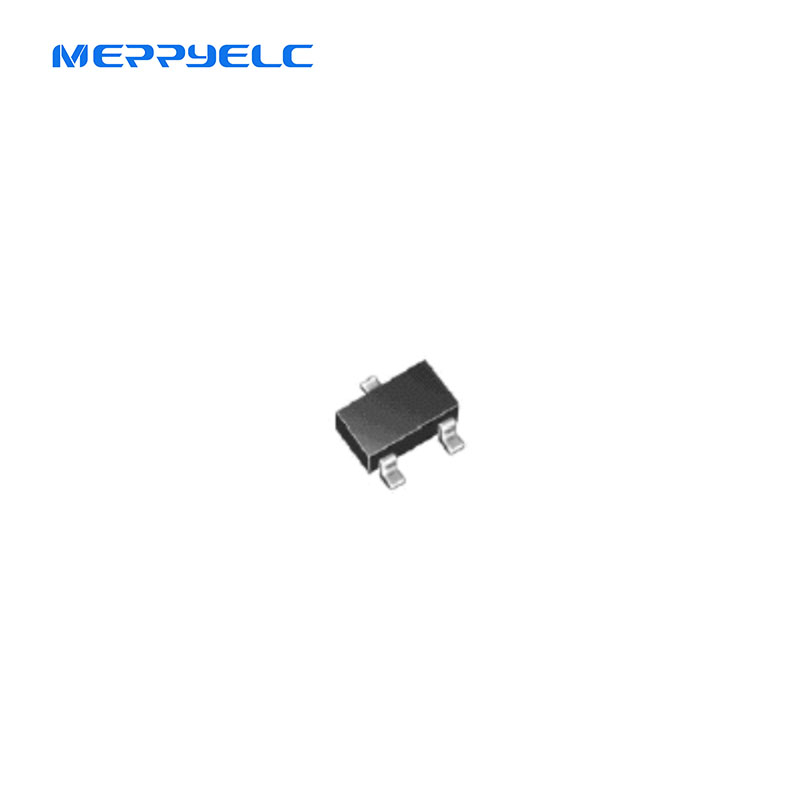

18V 3.5A N-Channel Enhancement Mode SOT-23 Package MOSFET NTR4501N

18V 3.5A N-Channel Enhancement Mode SOT-23 Package MOSFET NTR4501N
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • NTR4501N

Feature
18V,3.5A DS(ON) = 80mΩ(MAX)  VGS = 4.5V. RDS(ON) = 90mΩ(MAX)  VGS = 2.5V.
Super High dense cell design for extremely low RDS(ON) .
Reliable and Rugged.
SOT-23 for Surface Mount Package. SOT-23

Applications
Power Management
Portable Equipment
Battery Powered Systems.


NTR4501N.pdf

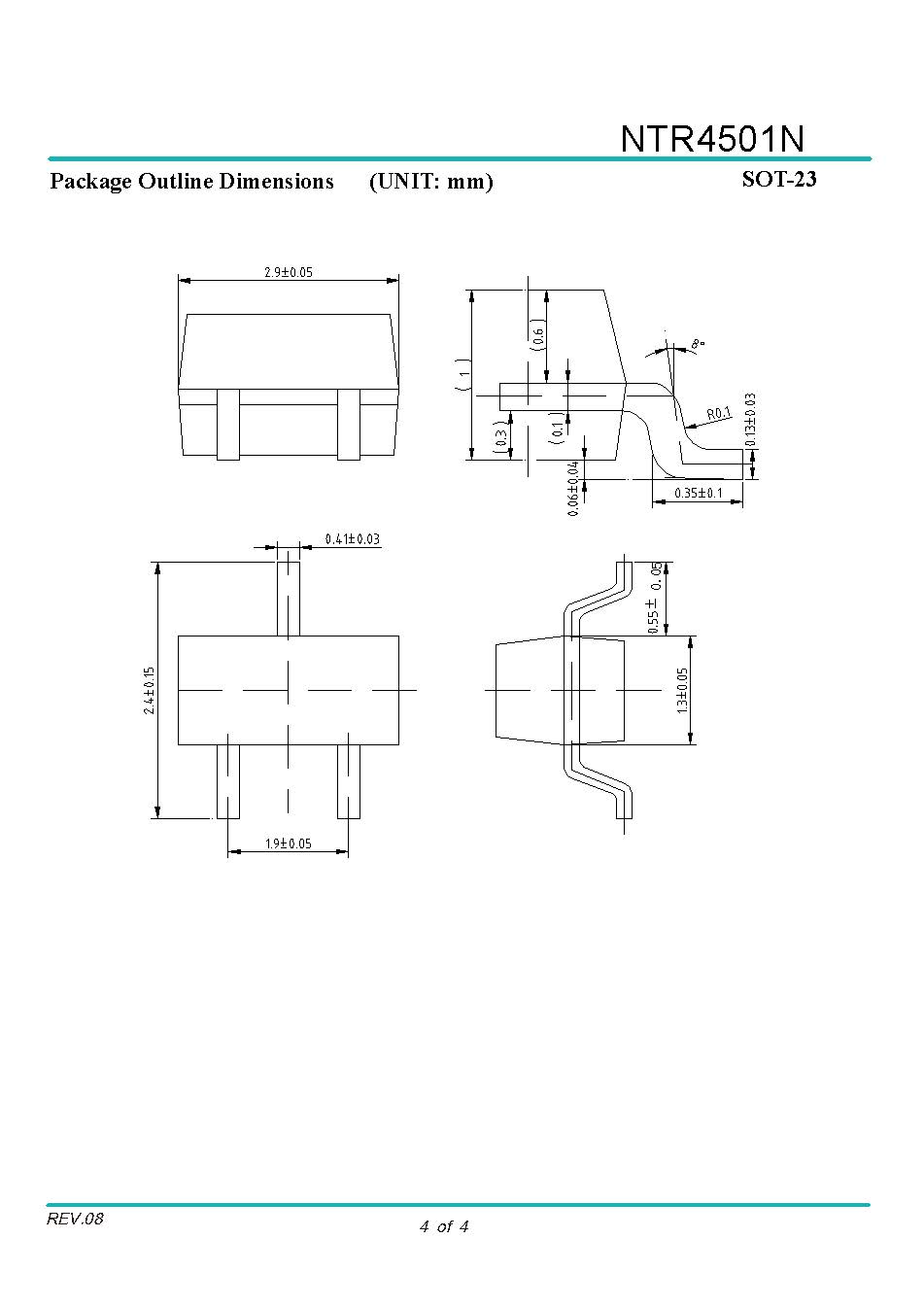

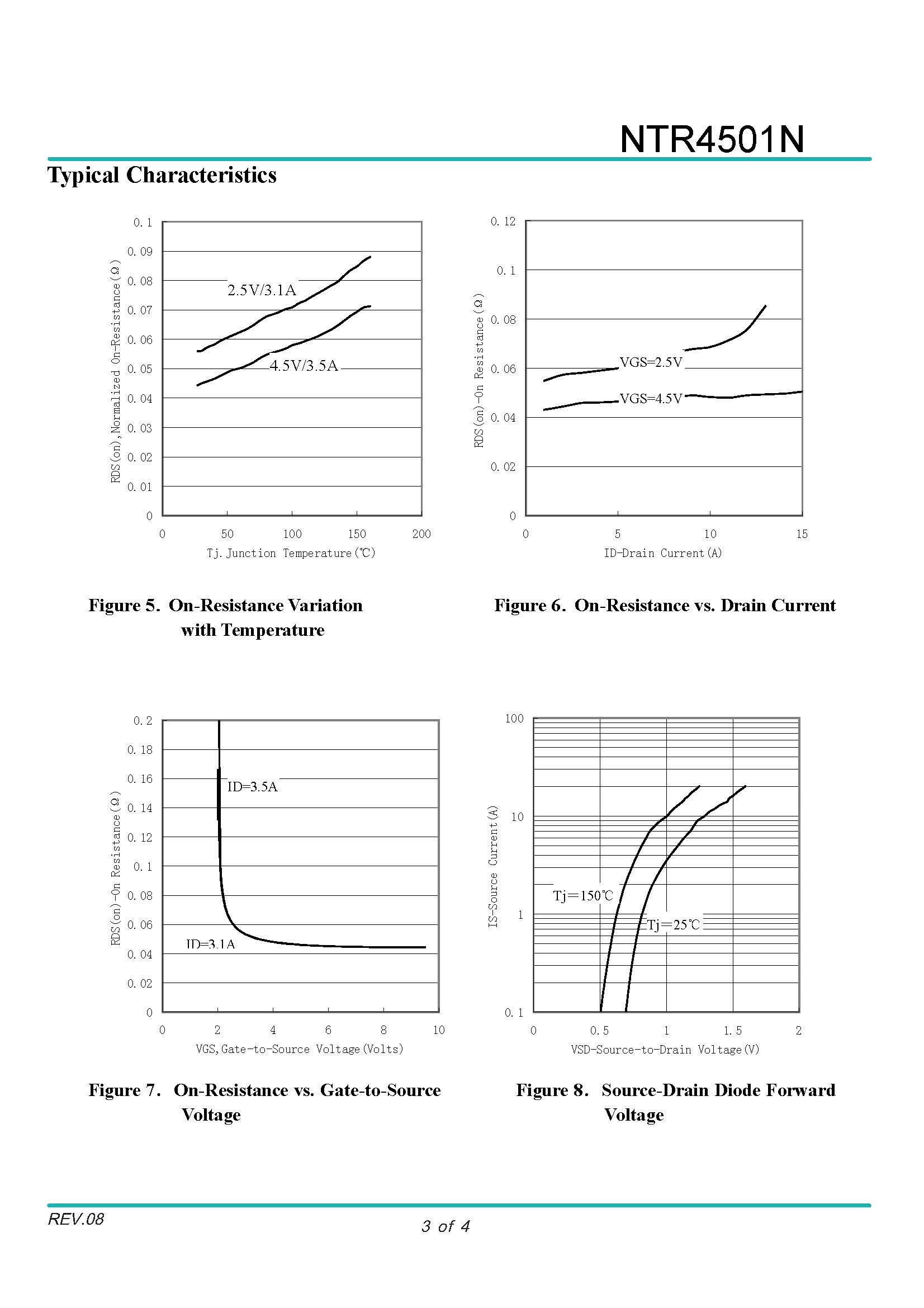

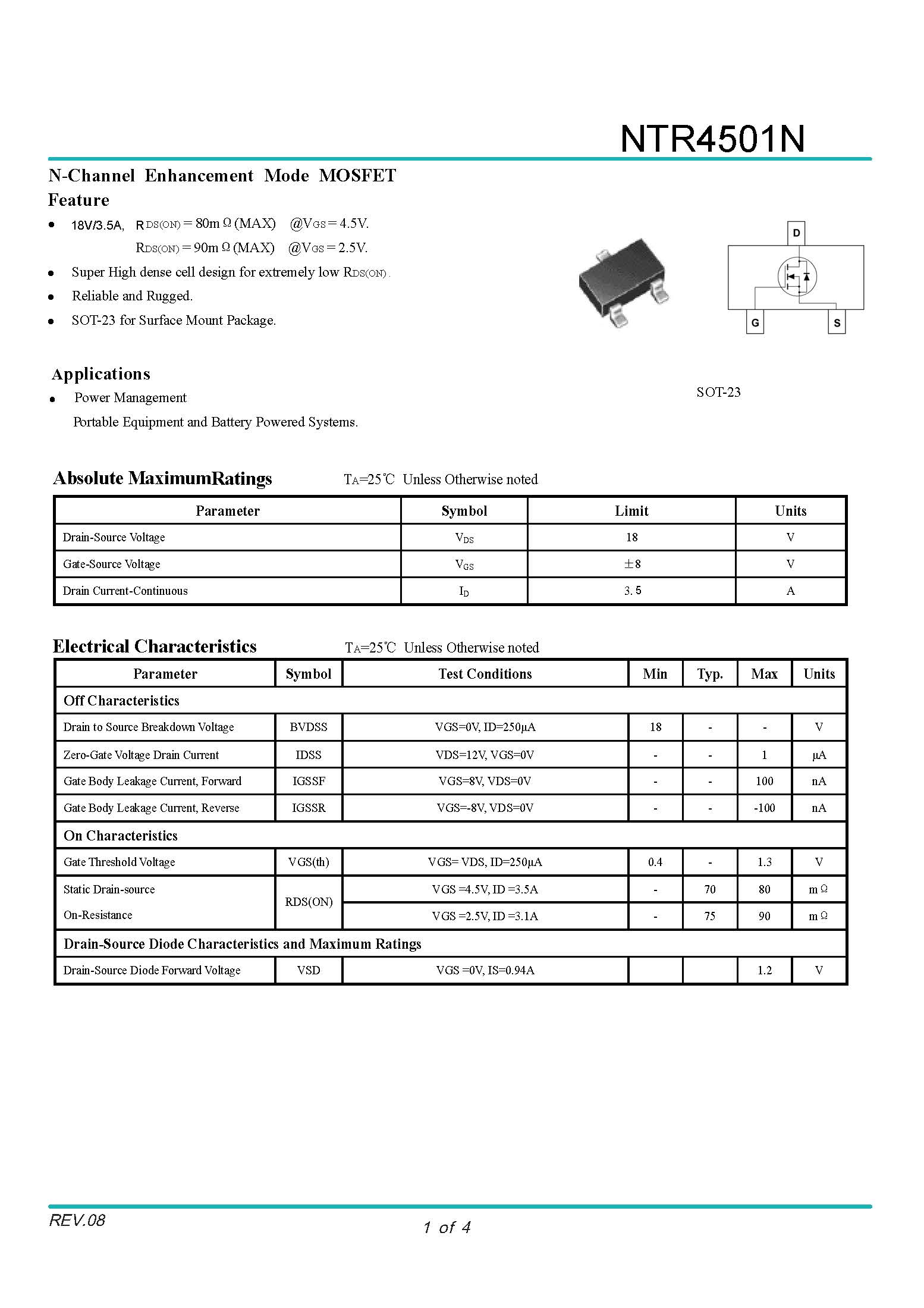

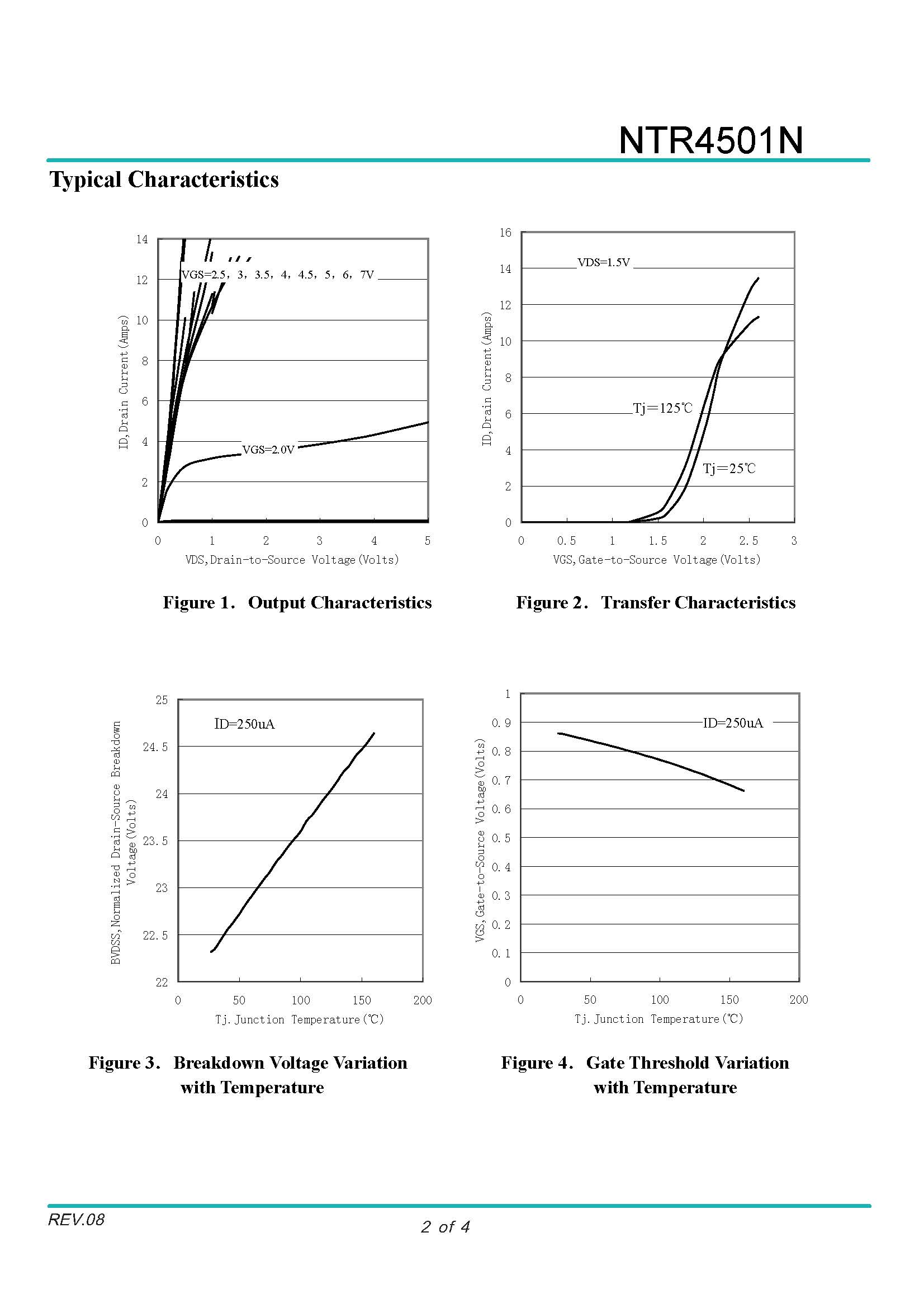

NTR4501N_页面_1NTR4501N_页面_2NTR4501N_页面_3NTR4501N_页面_4
