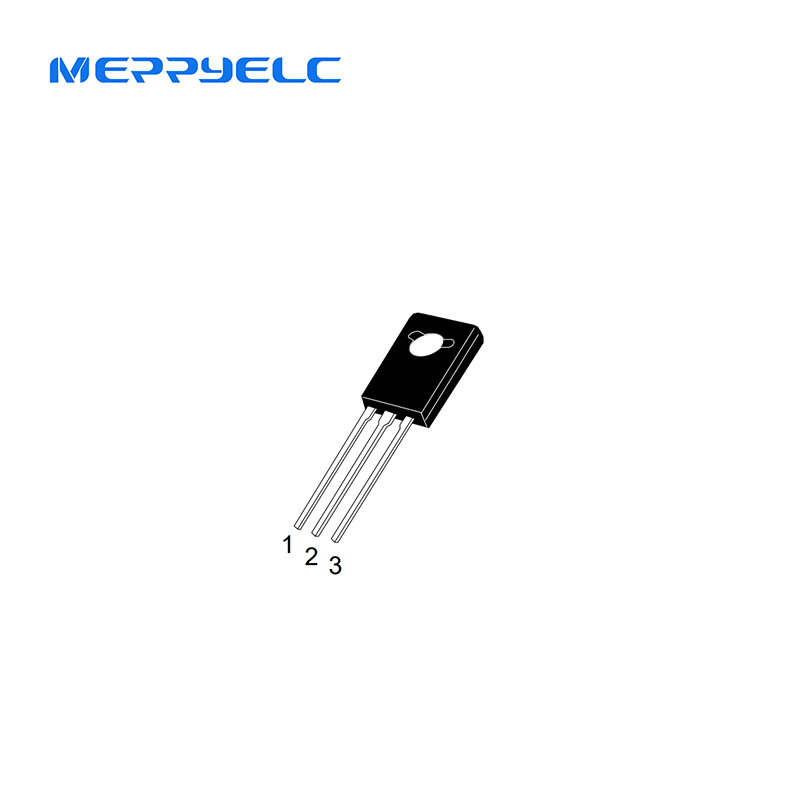

40-60-80V 12.5W 3A Complementary Plastic Silicon Power Transistors TO-225 MJE172G

40-60-80V 12.5W 3A Complementary Plastic Silicon Power Transistors TO-225 MJE172G
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • MJE172G

The MJE170/180 series is designed for low power audio amplifier and low current, high speed switching applications.

Features
• High DC Current Gain
• High Current−Gain − Bandwidth Product
• Annular Construction for Low Leakages
• Epoxy Meets UL 94 V−0 @ 0.125 in
• These Devices are Pb−Free and are RoHS Compliant*

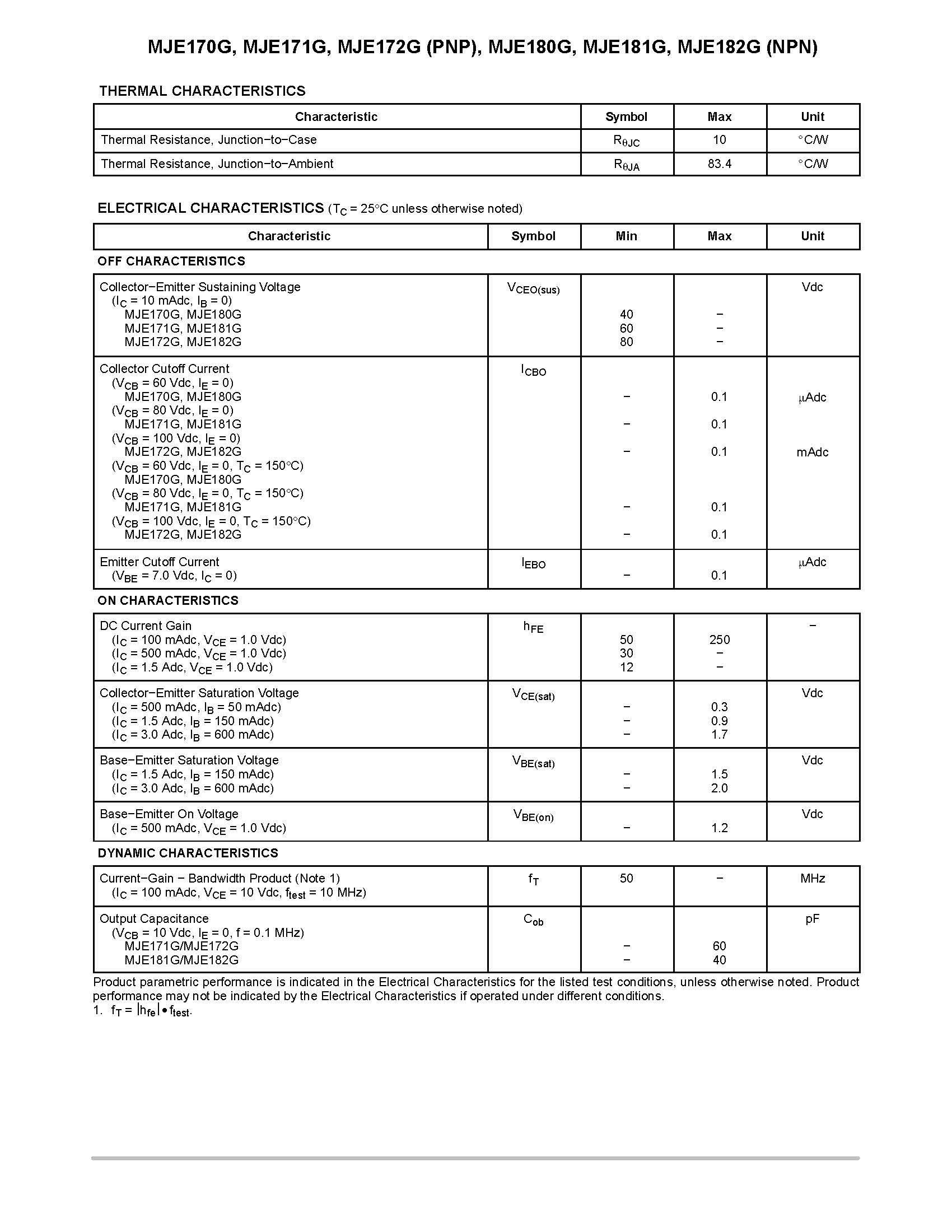

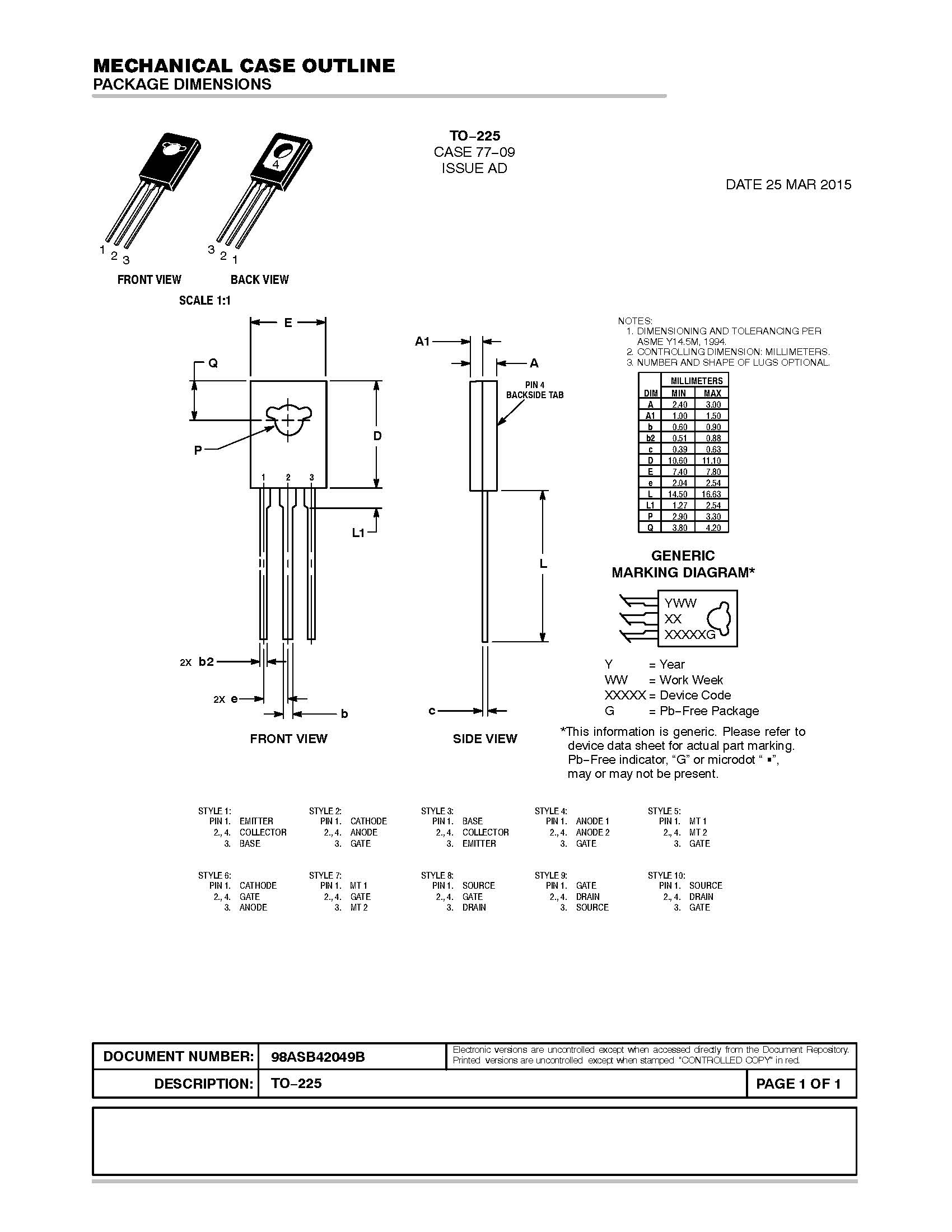

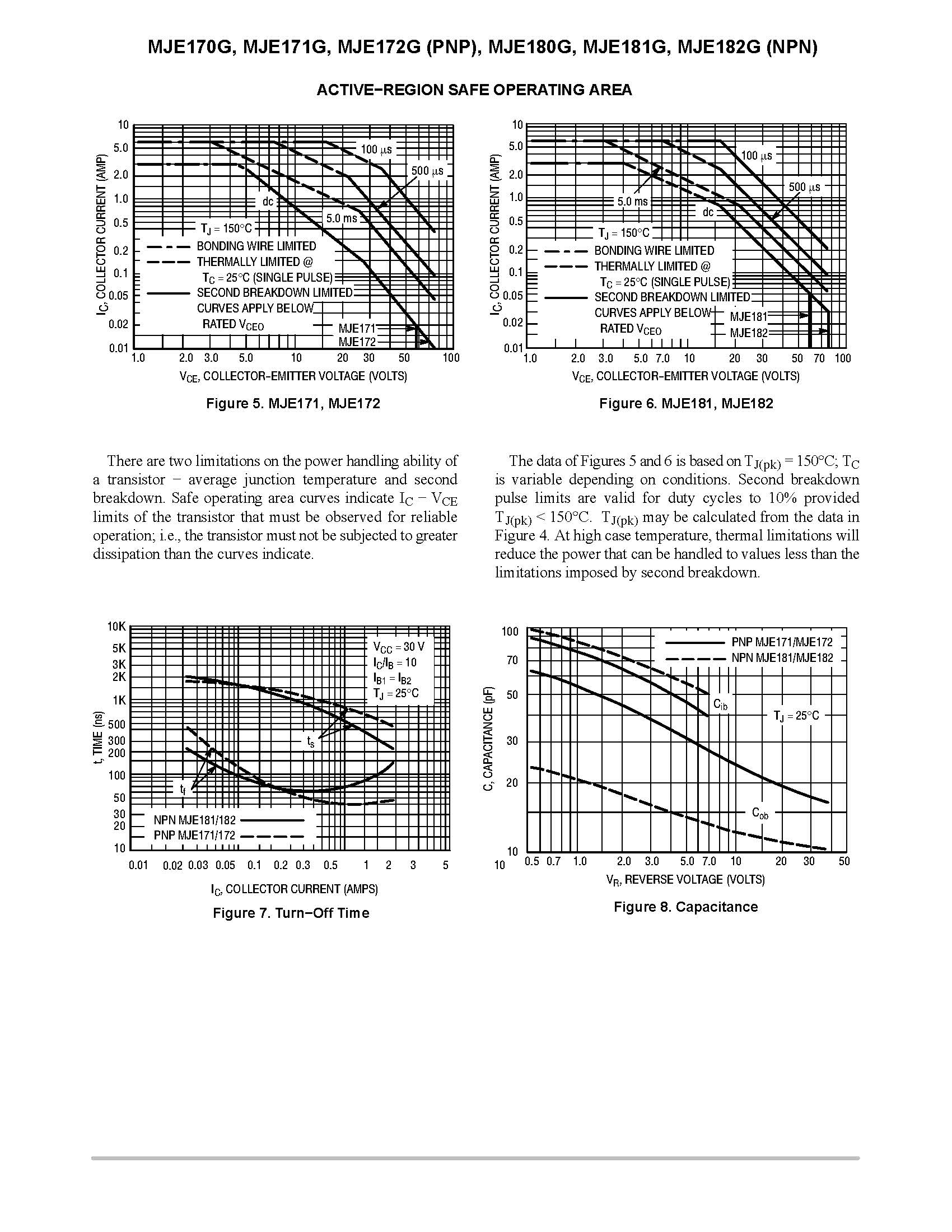

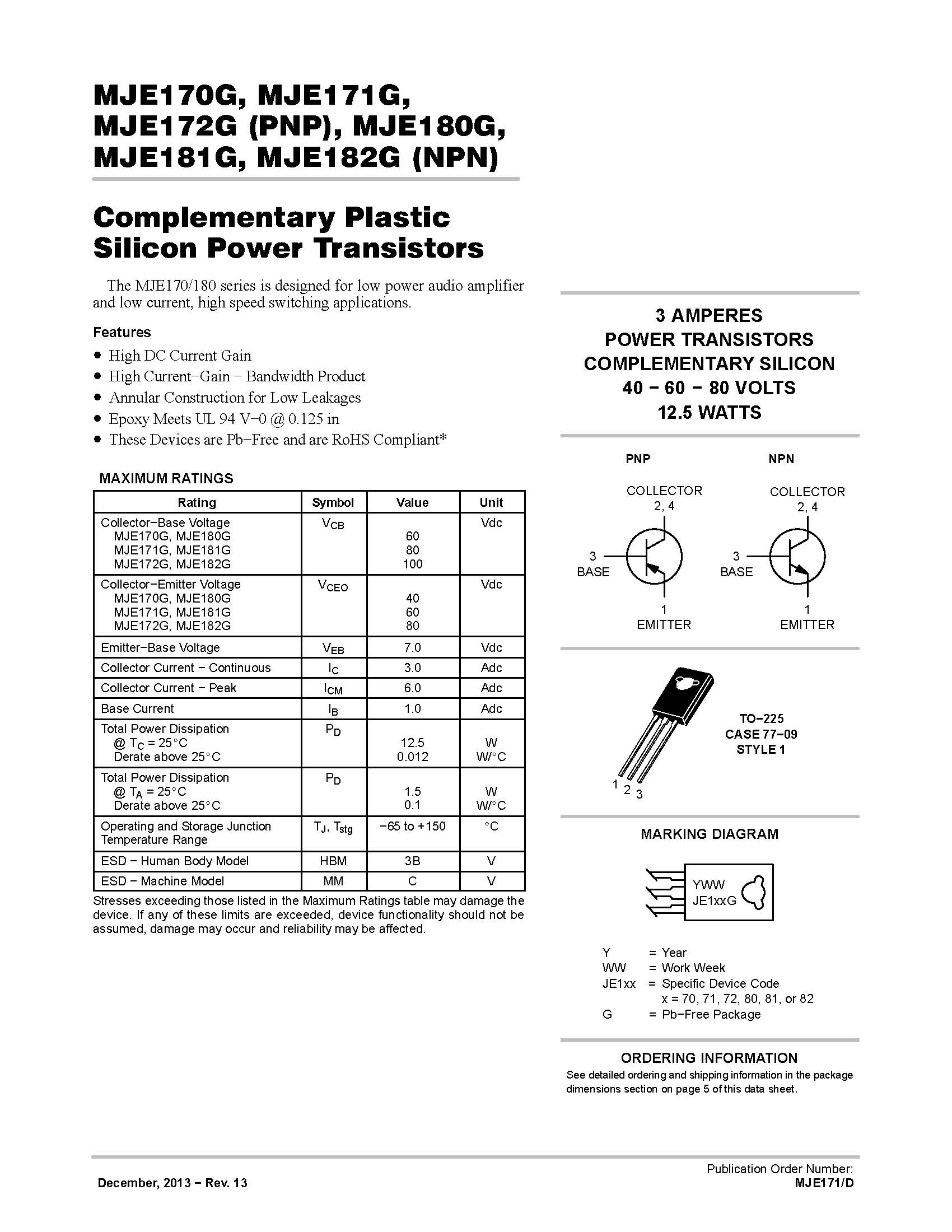

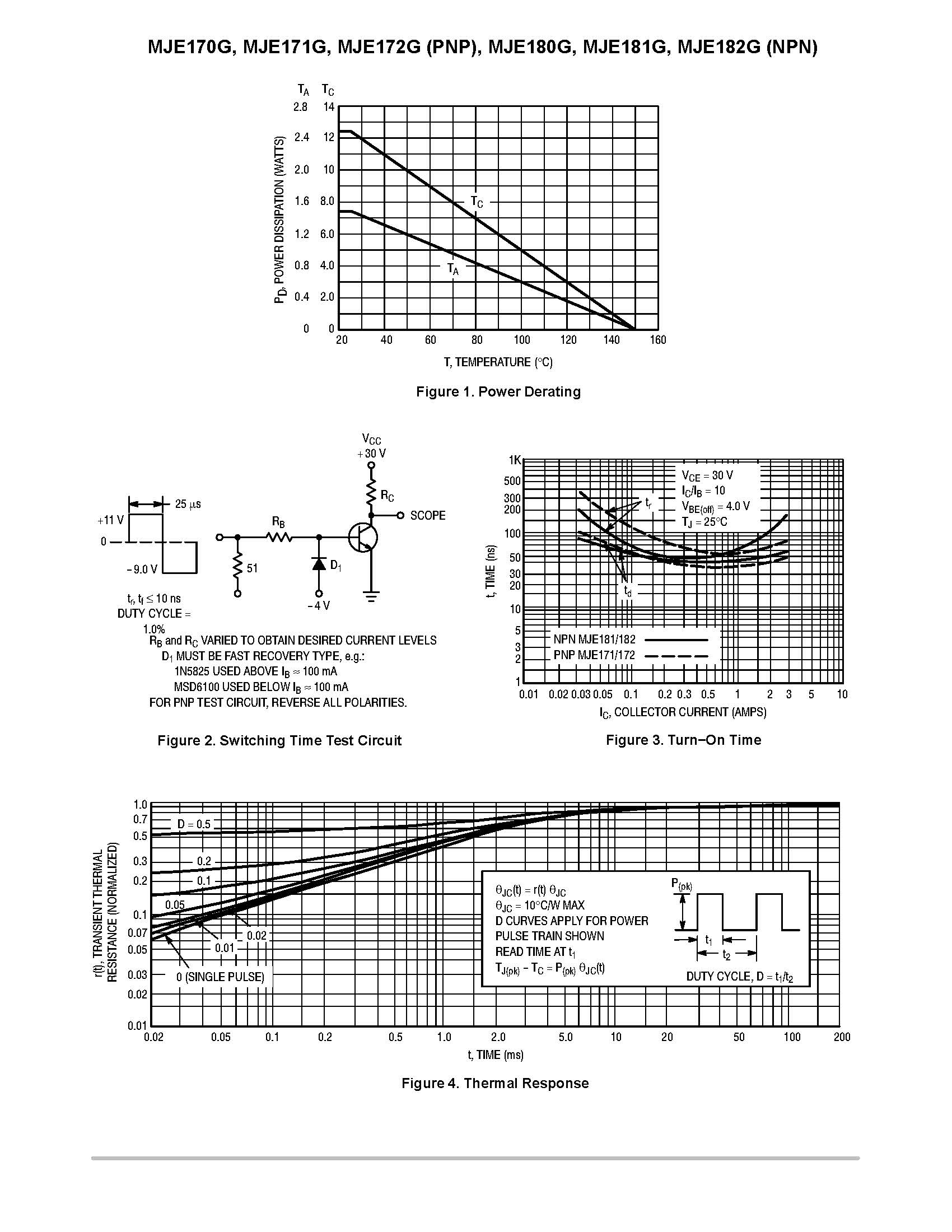

MJE172.pdf

MJE172_页面_1MJE172_页面_4MJE172_页面_3MJE172_页面_2MJE172_页面_5MJE172_页面_6

Previous:
Next:
Transistor Power Transistor silicon power transistor Transistors moudles MJE172G
