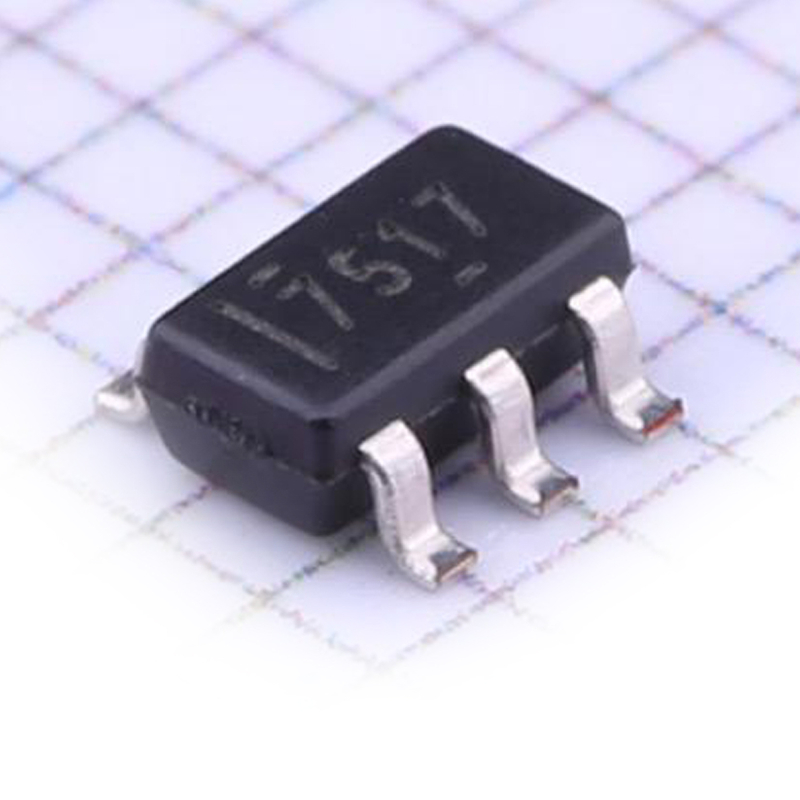

4A/4A single channel high-speed low side gate driver, SOT-23-5, UCC27517DBVR

4A/4A single channel high-speed
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • UCC27517DBVR

  • Merry

4A/4A single channel high-speed low side gate driver, SOT-23-5, UCC27517DBVR


Number of channels (#)

1
Power switch

MOSFET, IGBT, GaNFET
Peak output current (A)

4
Input VCC (Min) (V)

4.5
Input VCC (Max) (V)

18
Features

Hysteretic Logic
Operating temperature range (C)

-40 to 140
Rise time (ns)

9
Fall time (ns)

7
Prop delay (ns)

13
Input threshold

CMOS, TTL
Channel input logic

Inverting, Non-Inverting
Input negative voltage (V)

0
Rating

Catalog
Undervoltage lockout (Typ)

4

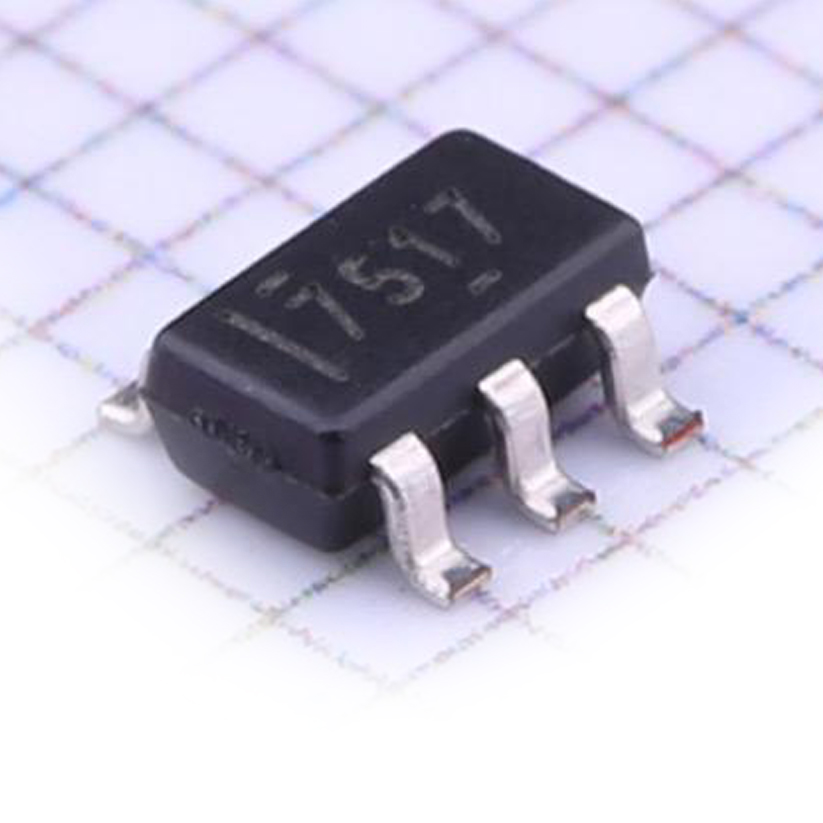

UCC27517DBVR-2

Name1

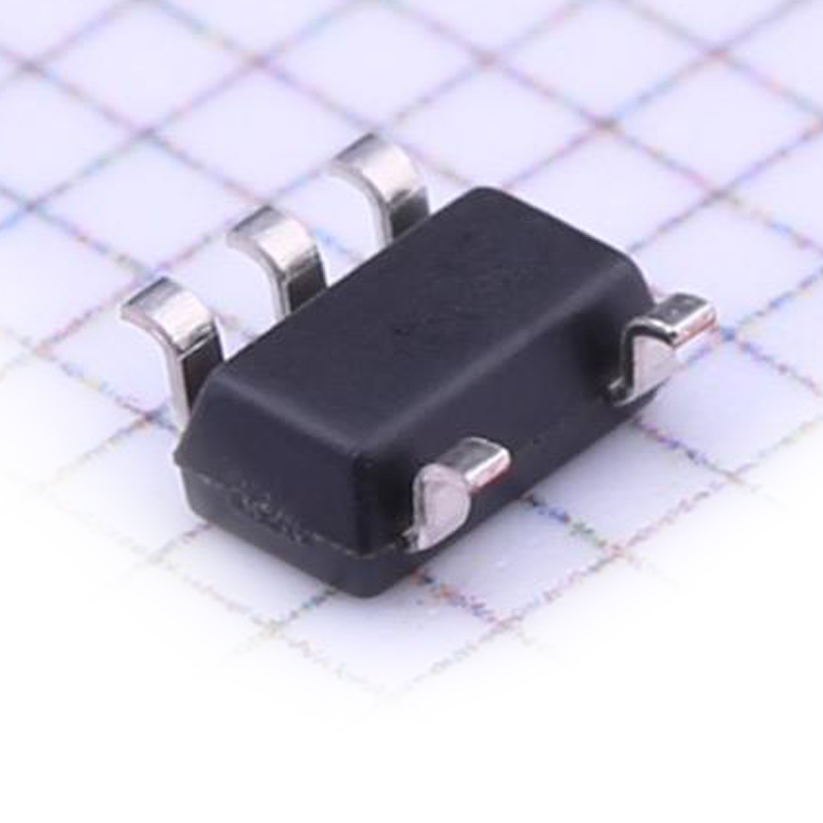

UCC27517DBVR-3
