MMBF170

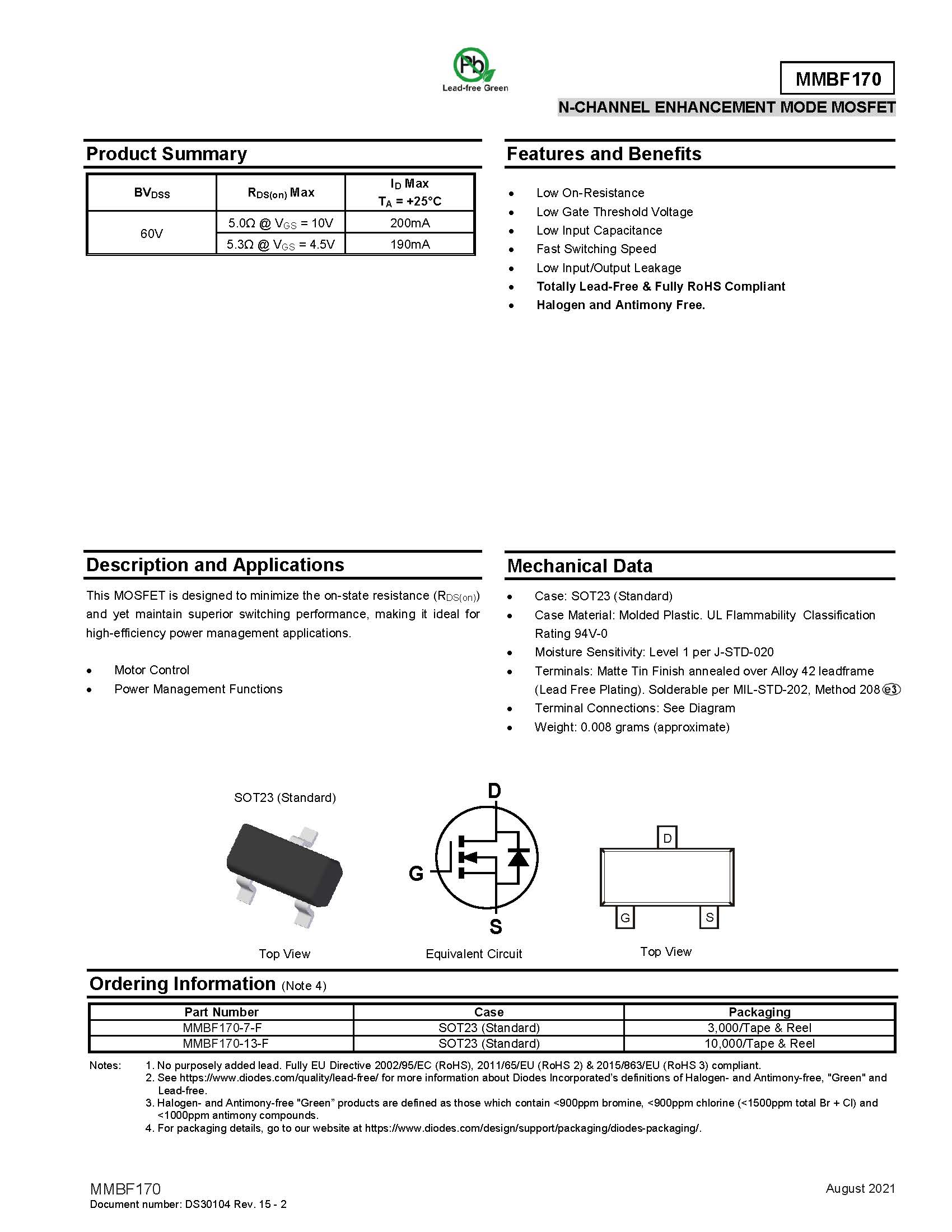

Description and Applications
This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
• Motor Control
• Power Management Functions
Features
Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Output Leakage
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free.
Mechanical Data

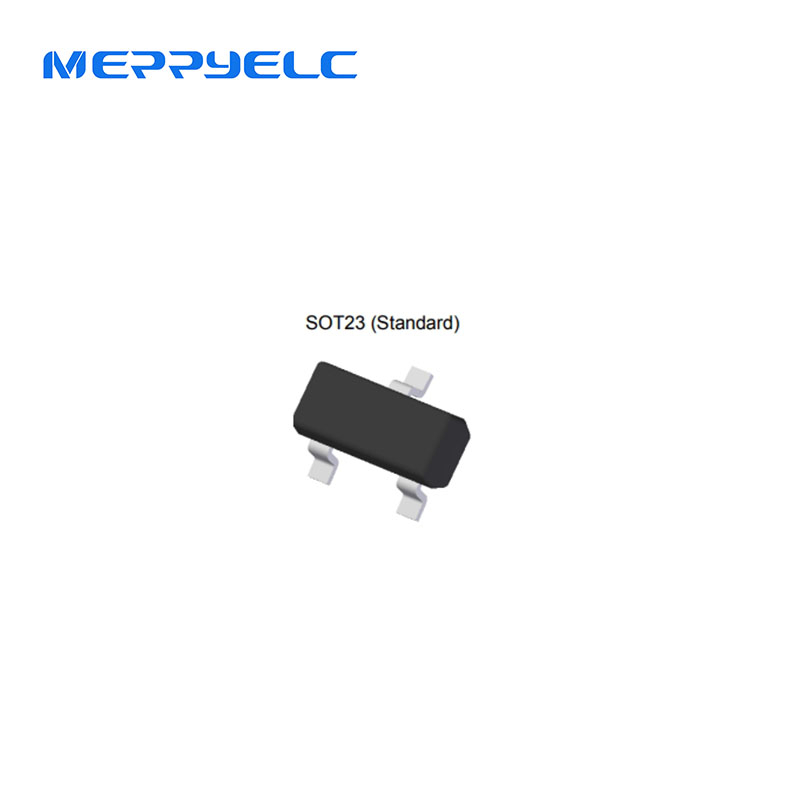

• Case: SOT23 (Standard)
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208
• Terminal Connections: See Diagram
• Weight: 0.008 grams (approximate)
