60mA 250kHz charge pump voltage inverter, SOT-23-5, TPS60403DBVR

60mA 250kHz charge
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • TPS60403DBVR

  • Merry

60mA 250kHz charge pump voltage inverter, SOT-23-5, TPS60403DBVR

Vin (Min) (V)

1.6
Vin (Max) (V)

5.5
Vout (Min) (V)

-5.25
Vout (Max) (V)

-1.6
Iout (Max) (A)

0.06
Regulated outputs (#)

1
Switching frequency (Min) (kHz)

150
Switching frequency (Max) (kHz)

400
Iq (Typ) (mA)

0.4
Features

Light Load Efficiency Mode, Synchronous Rectification
Operating temperature range (C)

-40 to 85
Rating

Catalog
Type

Charge Pump

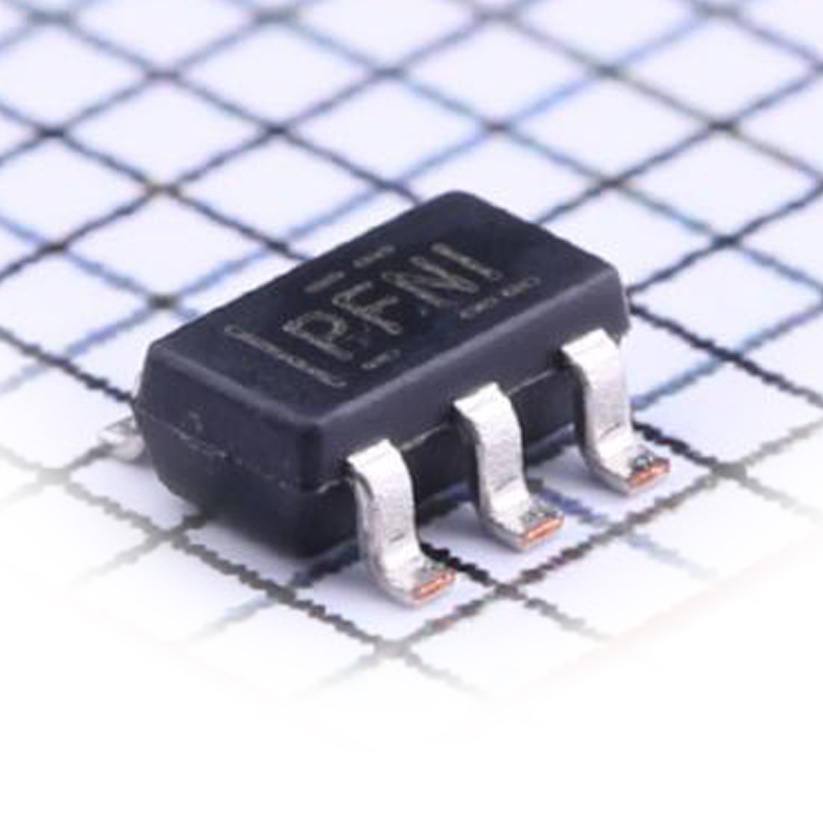

TPS60403DBVR-2

Name1

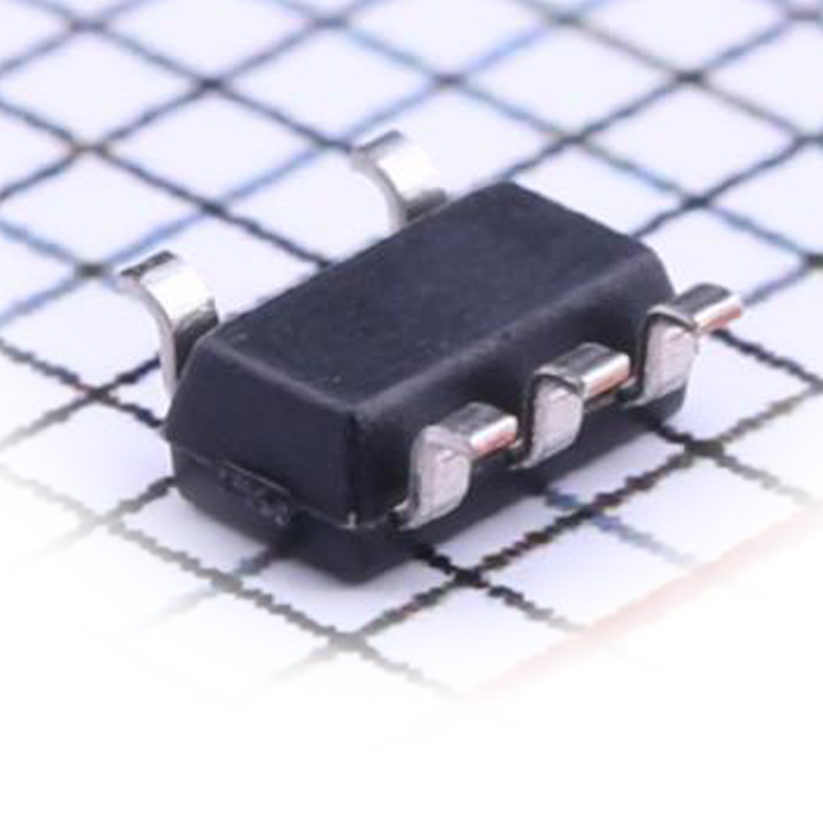

TPS60403DBVR-3

Name2
