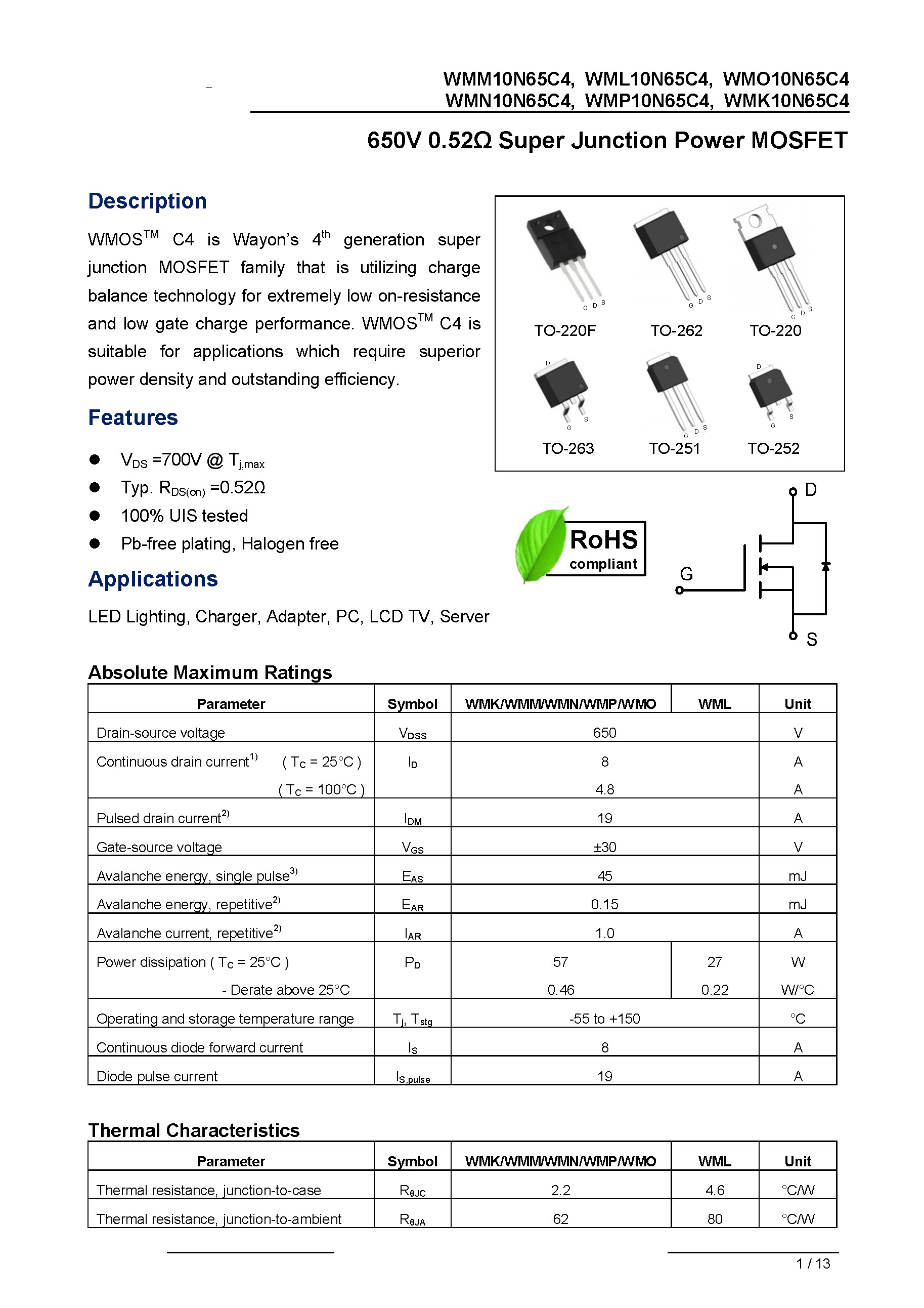

650V 0.52Ω Super Junction Power MOSFET, VDS: 650V, ID: 8A, VGS: 30V, fetures, applications, TO-252, WMO10N65C4

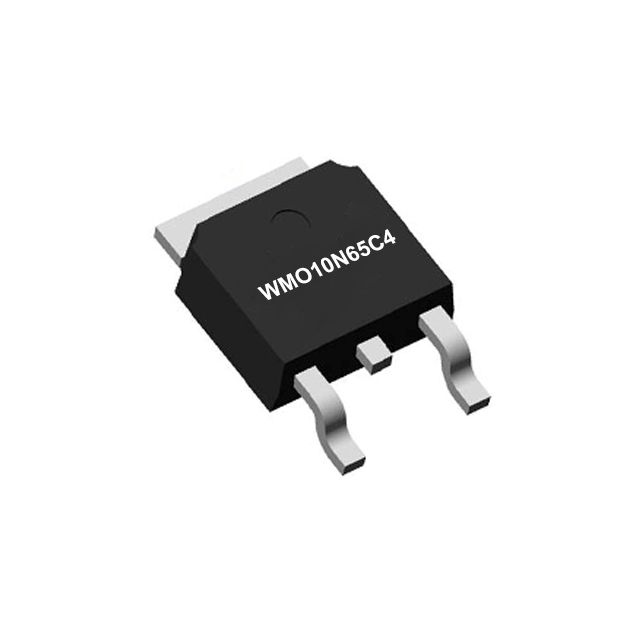

- Part No.: WMO10N65C4
- Description: N-Channel SJ-MOS C4

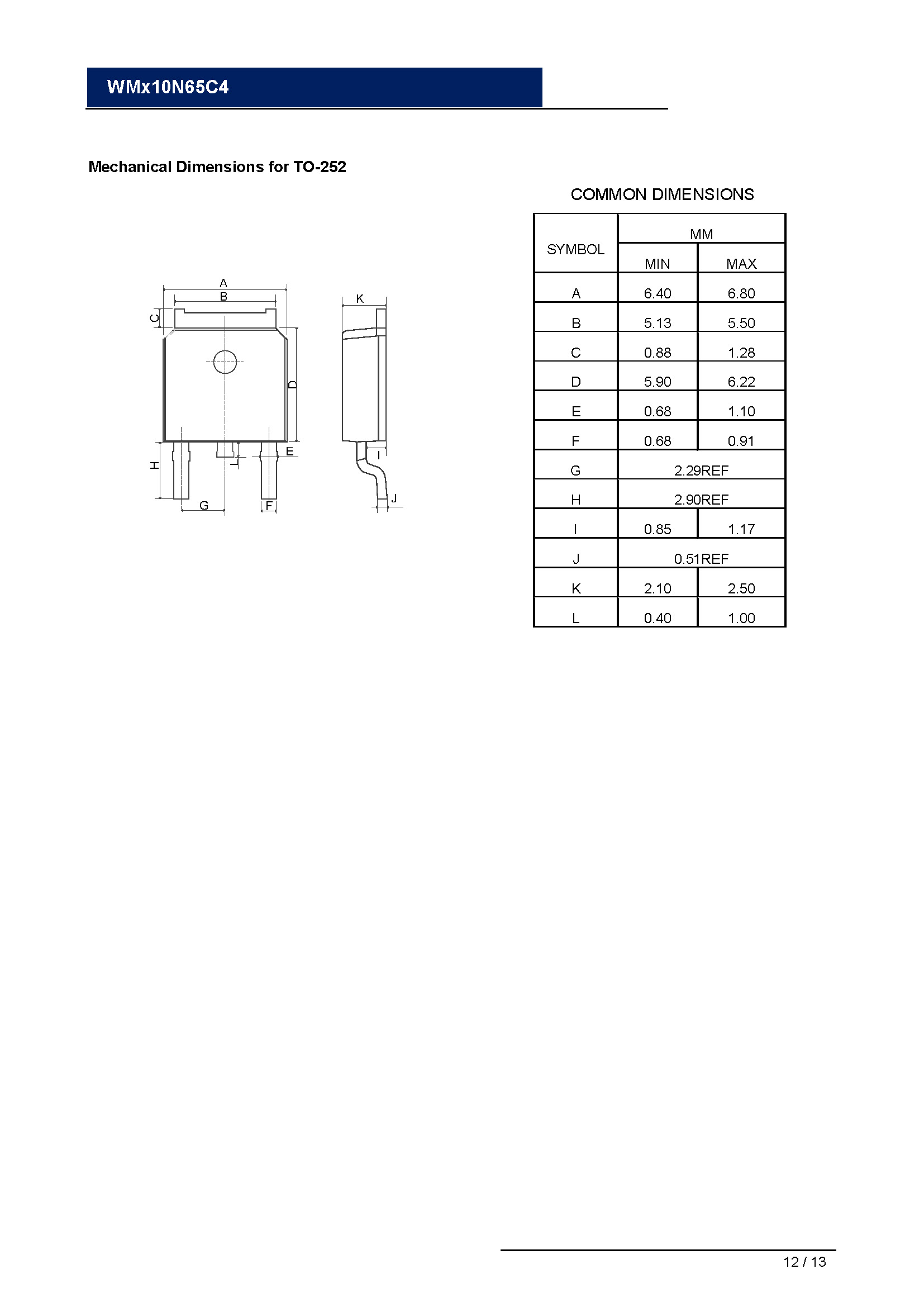

- Package: TO-252
- VDS (V): 650
- RDS(on) (Ω) @VGS=10V(max.):0.6
- ID (A) @TA=25ºC:8
- PD (W) @TA=25ºC:57
- VGS (V): 30
- VGS(th) (V) (Typ.): 3
Features :
- Typ. Rds(on)=0.52Ω
- Pb-Free plating, Halogen free
- 100% UIS tested
Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server
