900V 1.28Ω Super Junction Power MOSFET, VDS: 900V, ID: 4.5A, VGS: 30V, fetures, applications, TO-252, WMO90R1K5S

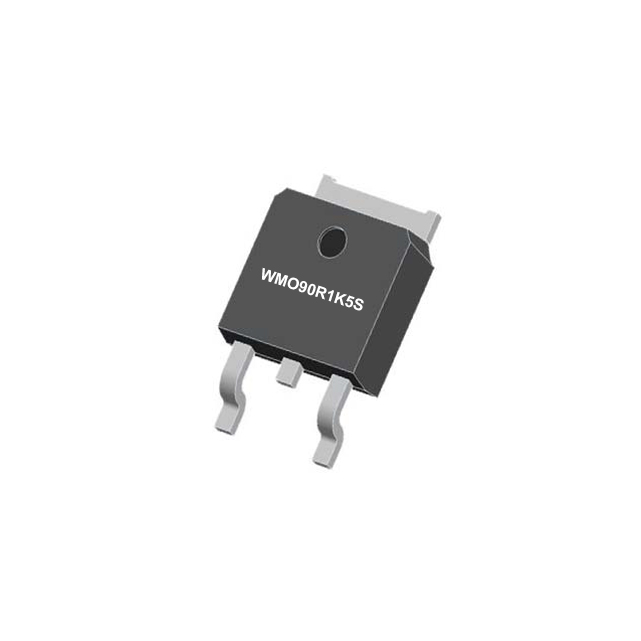

- Part No.:WMO90R1K5S
- Description:N-Channel SJ-MOS S
- Package:TO-252
- VDS (V):900
- RDS(on) (Ω) @VGS=10V(max.):1.5
- ID (A) @TA=25ºC:4.5
- PD (W) @TA=25ºC:50
- VGS (V):30
- VGS(th) (V) (Typ.):3.5

Features :

- VDS=950V@Tjmax
- Typ. Rds(on)=1.28Ω
- Pb-Free plating, Halogen free
- 100% UIS tested


Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WMO90R1K5S

  • Merry

900V 1.28Ω Super Junction Power MOSFET, VDS: 900V, ID: 4.5A, VGS: 30V, fetures, applications, TO-252, WMO90R1K5S

- Part No.:WMO90R1K5S
- Description:N-Channel SJ-MOS S
- Package:TO-252
- VDS (V):900
- RDS(on) (Ω) @VGS=10V(max.):1.5
- ID (A) @TA=25ºC:4.5
- PD (W) @TA=25ºC:50
- VGS (V):30
- VGS(th) (V) (Typ.):3.5


Features :

- VDS=950V@Tjmax
- Typ. Rds(on)=1.28Ω
- Pb-Free plating, Halogen free
- 100% UIS tested


Applications :
- LED Lighting, Charger, Adapter, PC, LCD TV, Server


WMO90R1K5S

Name1

1000_F_48893186

Name2


1000_F_460390235_DKAoH3ELvcr7UgoNEvY6RhQod3WGy88k

Name1

MF200DU06FJ

Name2

A9RDA01

Name1

MF200K04F3LG

Name2


1000_F_7729663_28CIkxq1Vtz80Q8zUQHmVvkae3SmjH2b

Name1

MF300U05F6

Name2

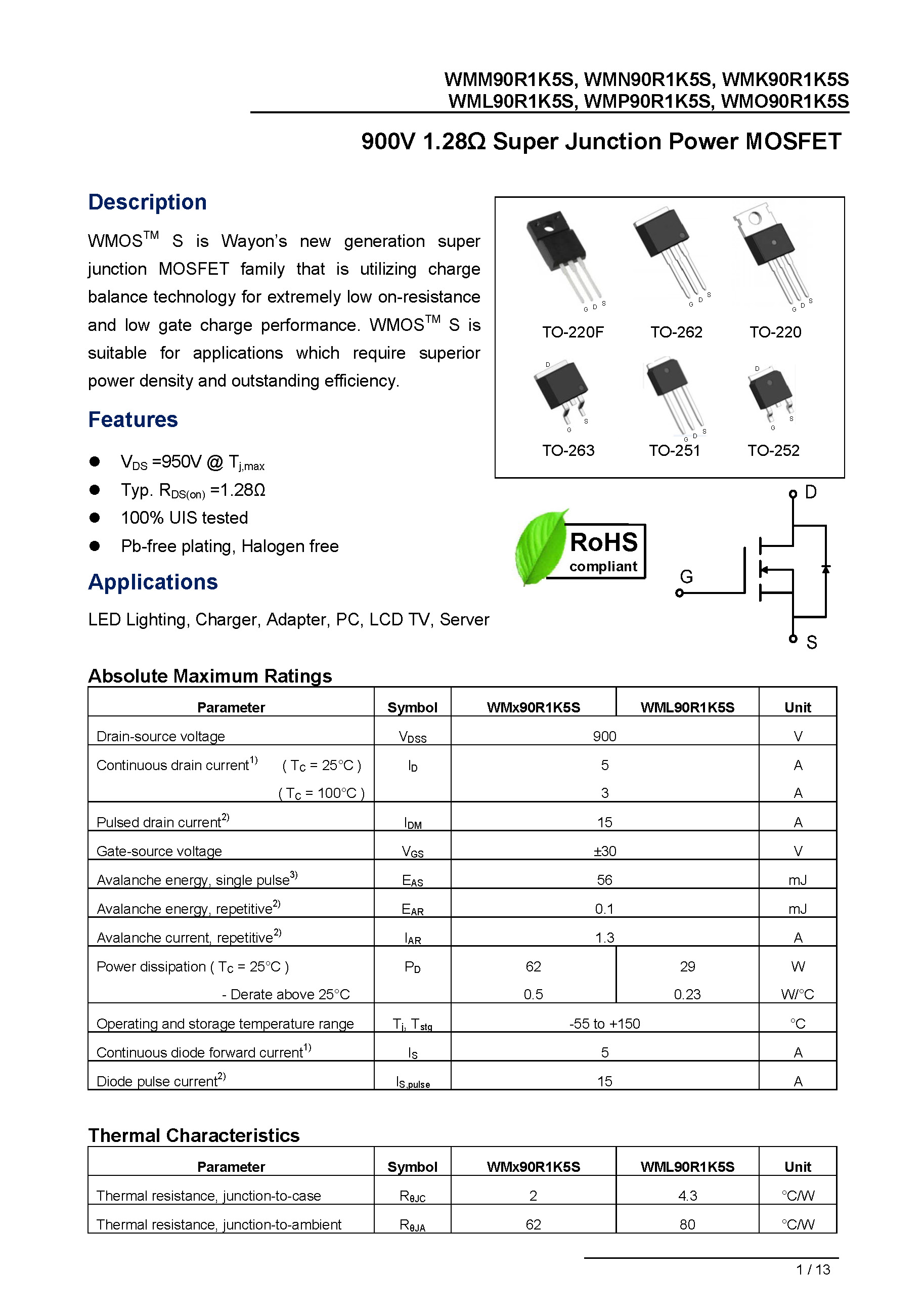

WMO90R1K5S-1_页面_01

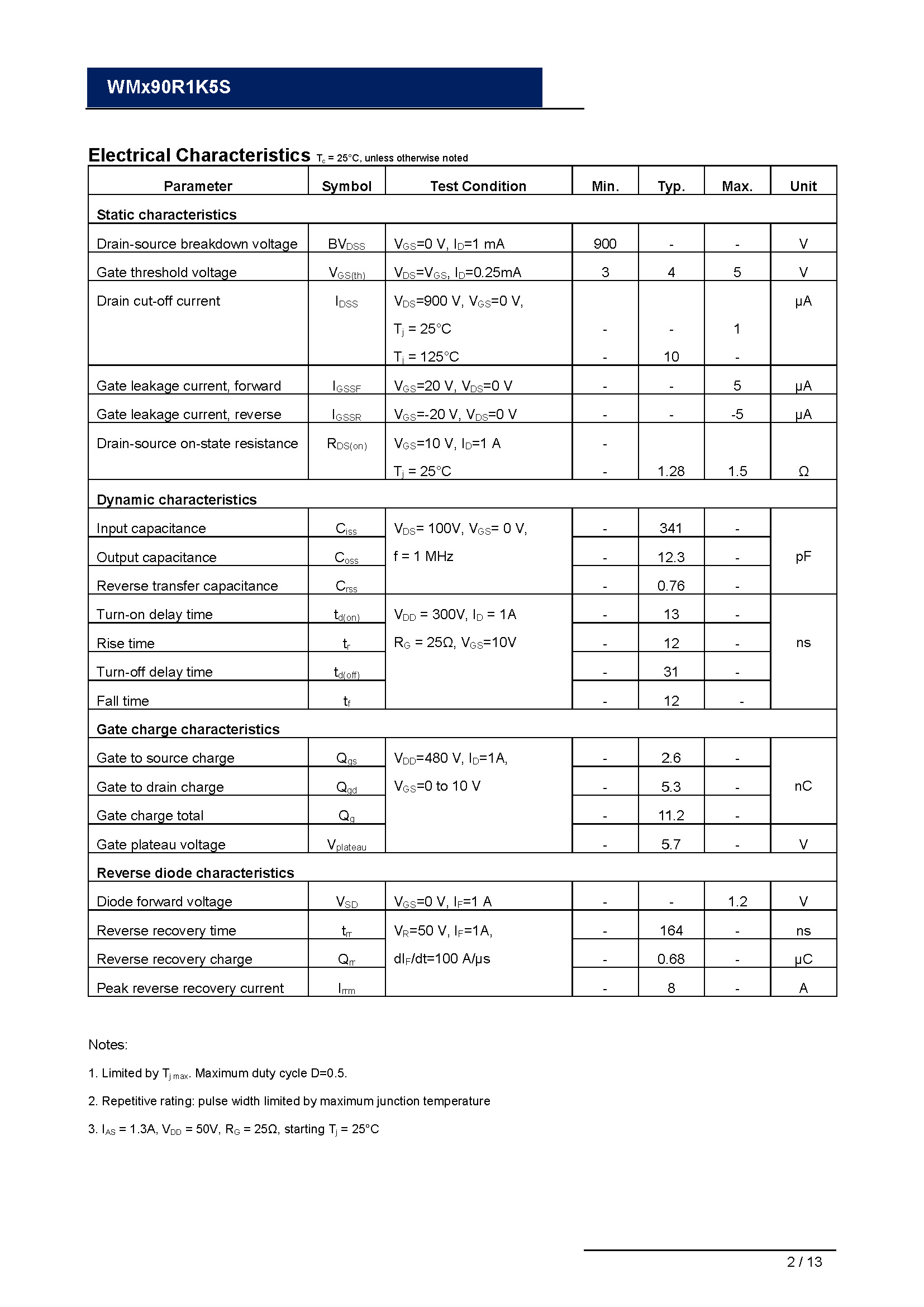

WMO90R1K5S-1_页面_02

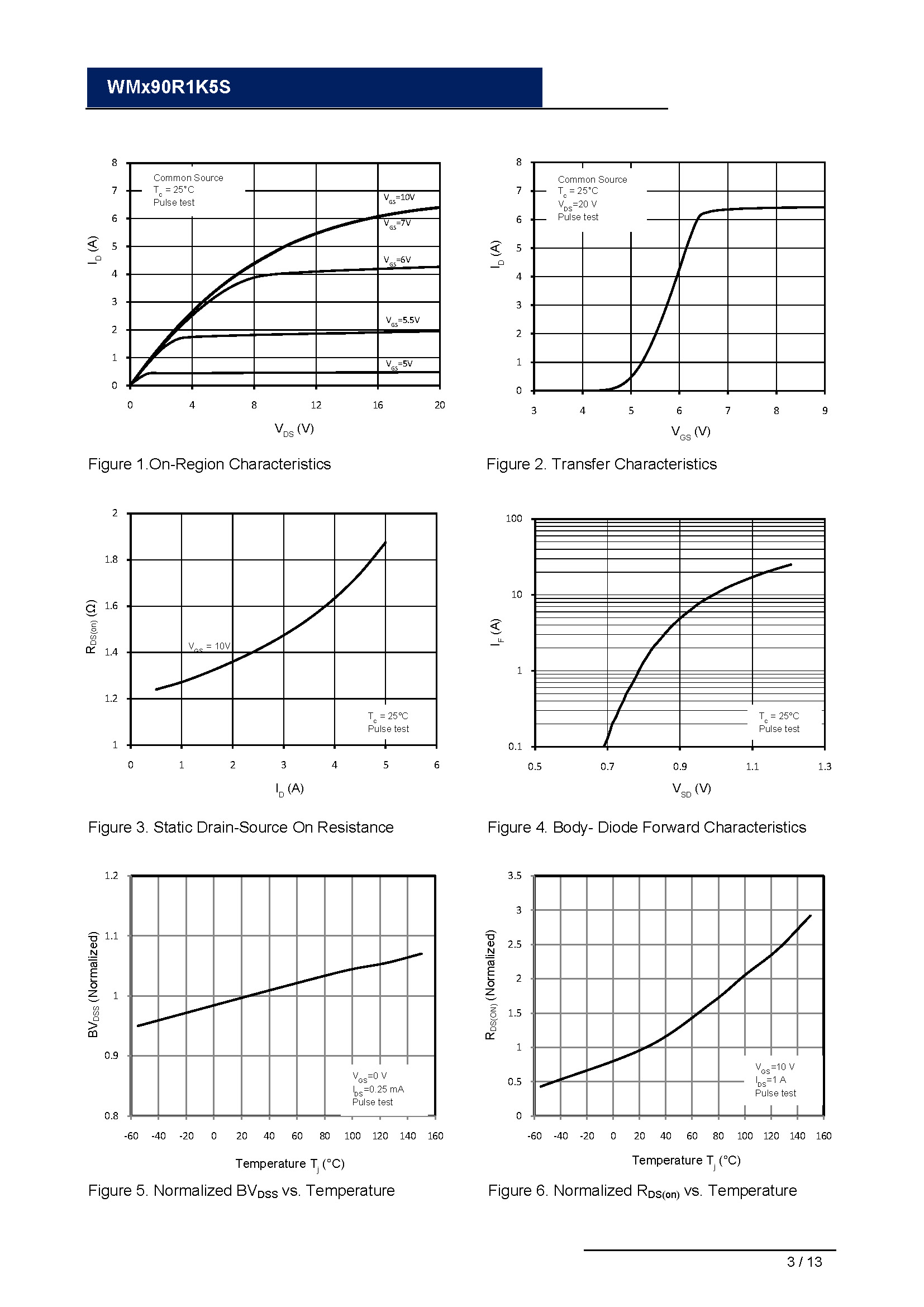

WMO90R1K5S-1_页面_03

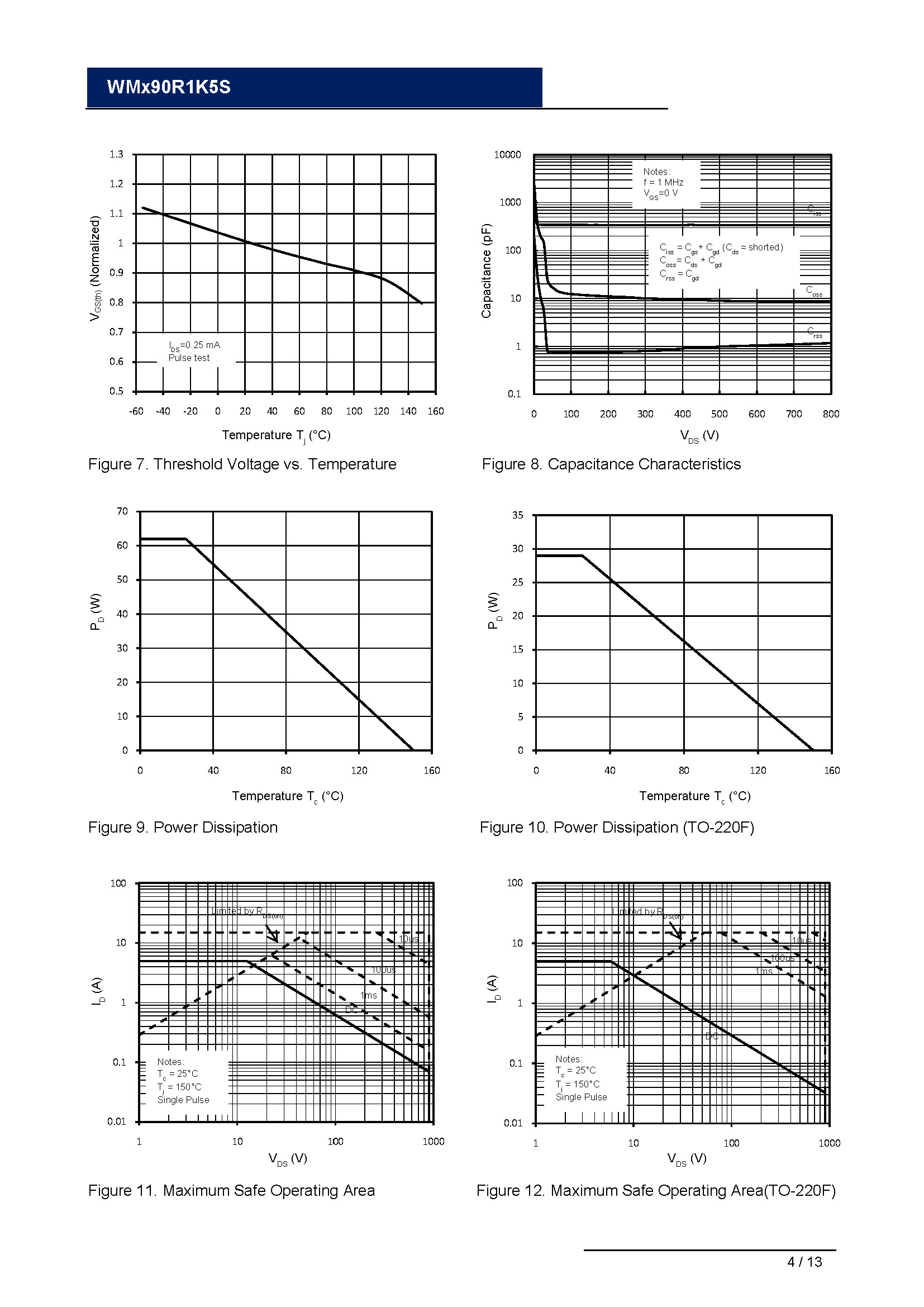

WMO90R1K5S-1_页面_04

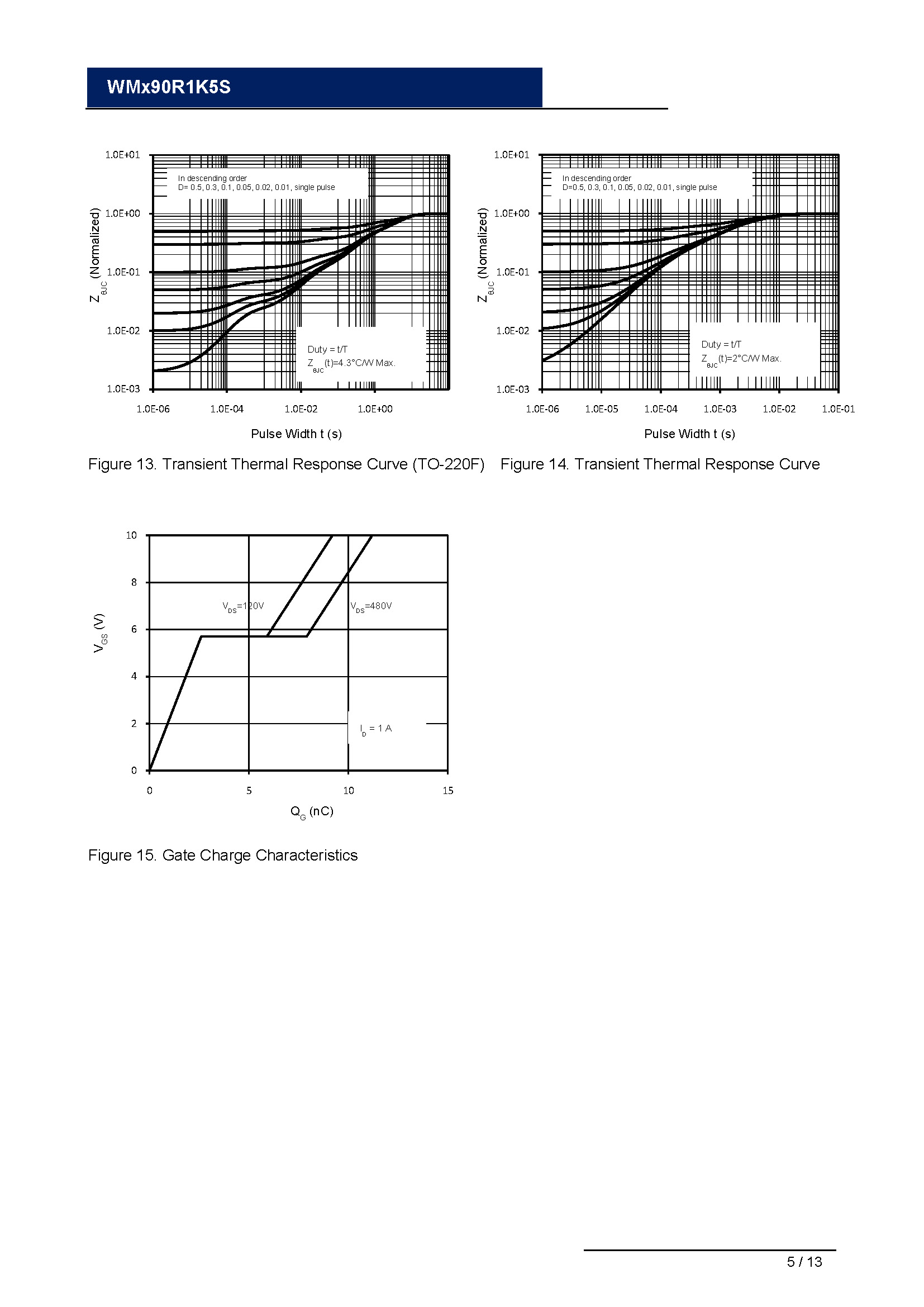

WMO90R1K5S-1_页面_05
