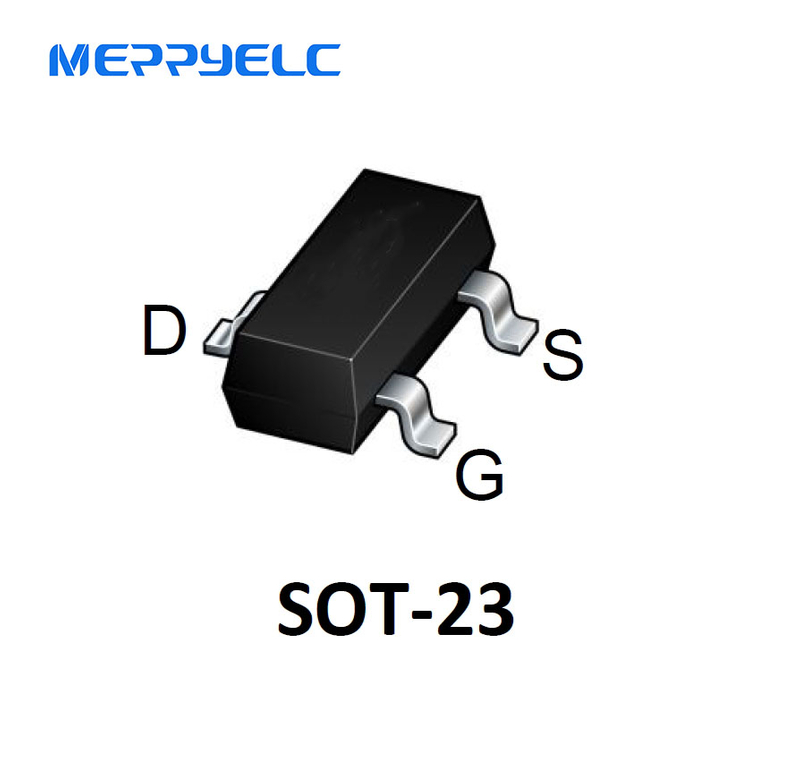

IRLML6244TR SOT-23 20V 6A N-Channel Enhancement Mode MOSFET

IRLML6244TR SOT-23 20V 6A N-Channel Enhancement Mode MOSFET
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • IRLML6244TR

Description
The IRLM6244TR uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application.

General Features
VDS = 20V ID =6.0A
RDS(ON) < 27mΩ@ VGS=4.5V

Application
Battery protection
Load switch
Uninterruptible power supply

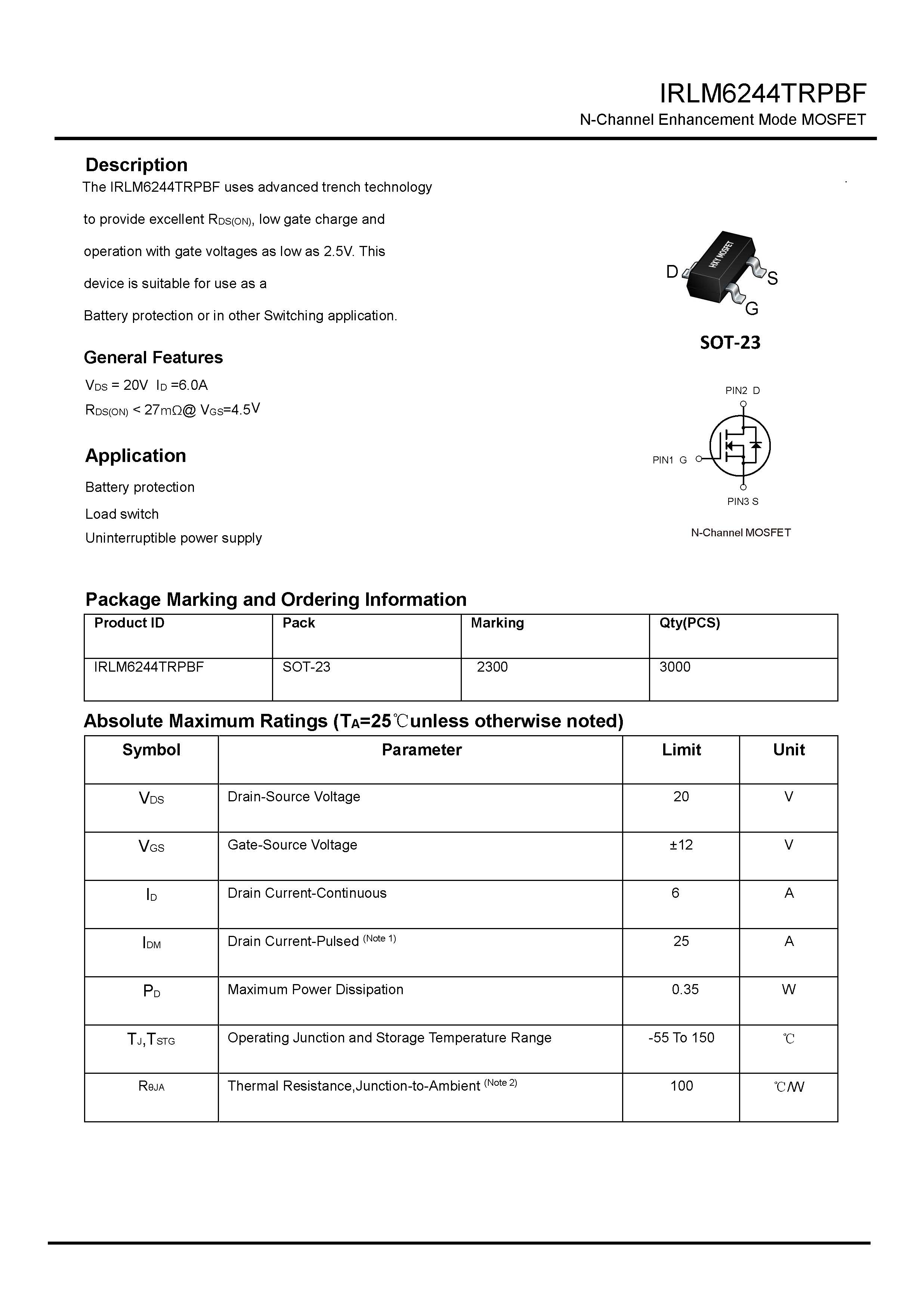

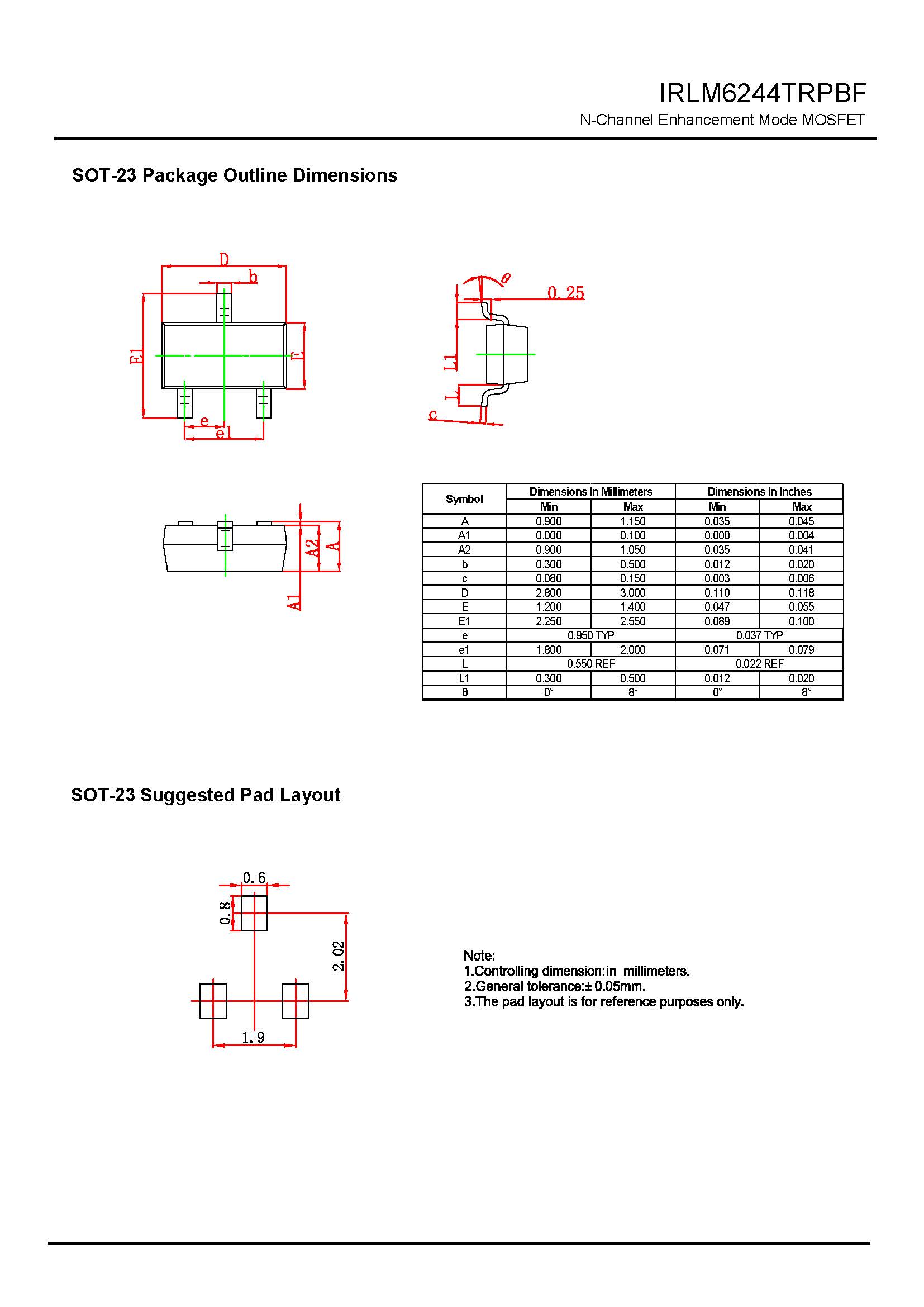

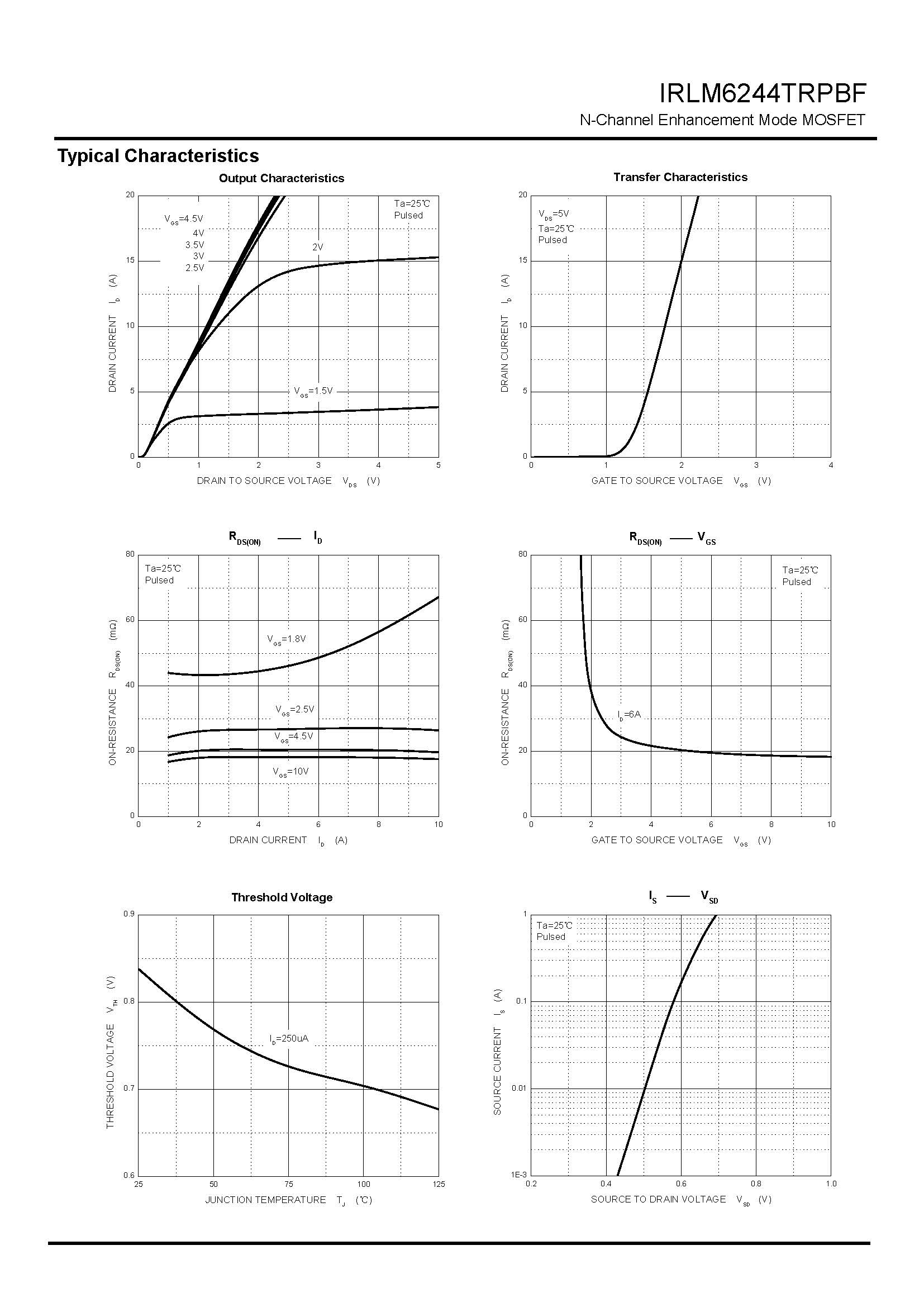

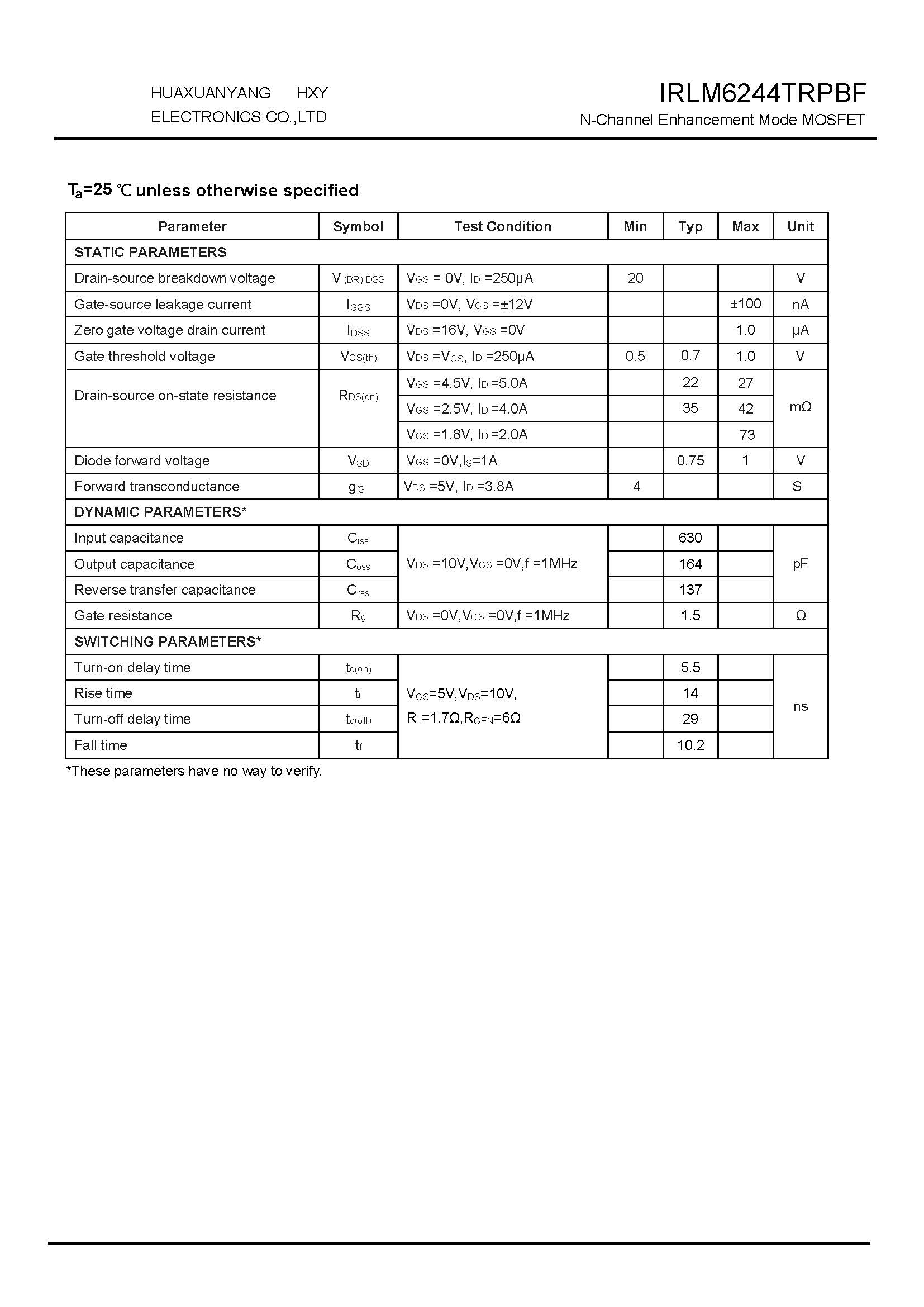

IRLML6244TR_页面_1IRLML6244TR_页面_2IRLML6244TR_页面_3IRLML6244TR_页面_4
