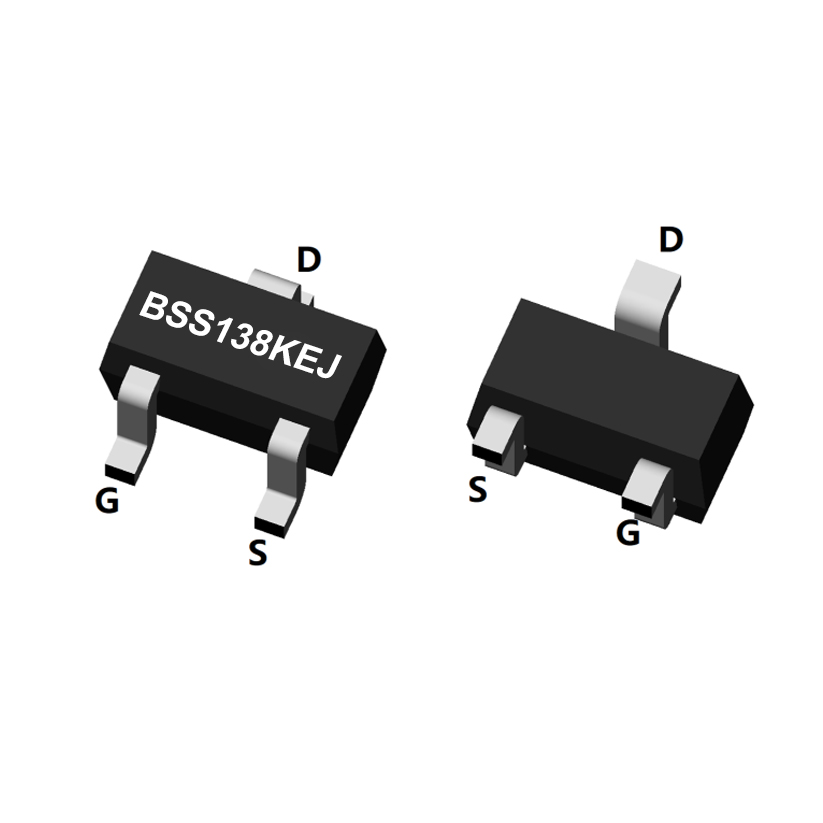

BSS138KEJ
Merry

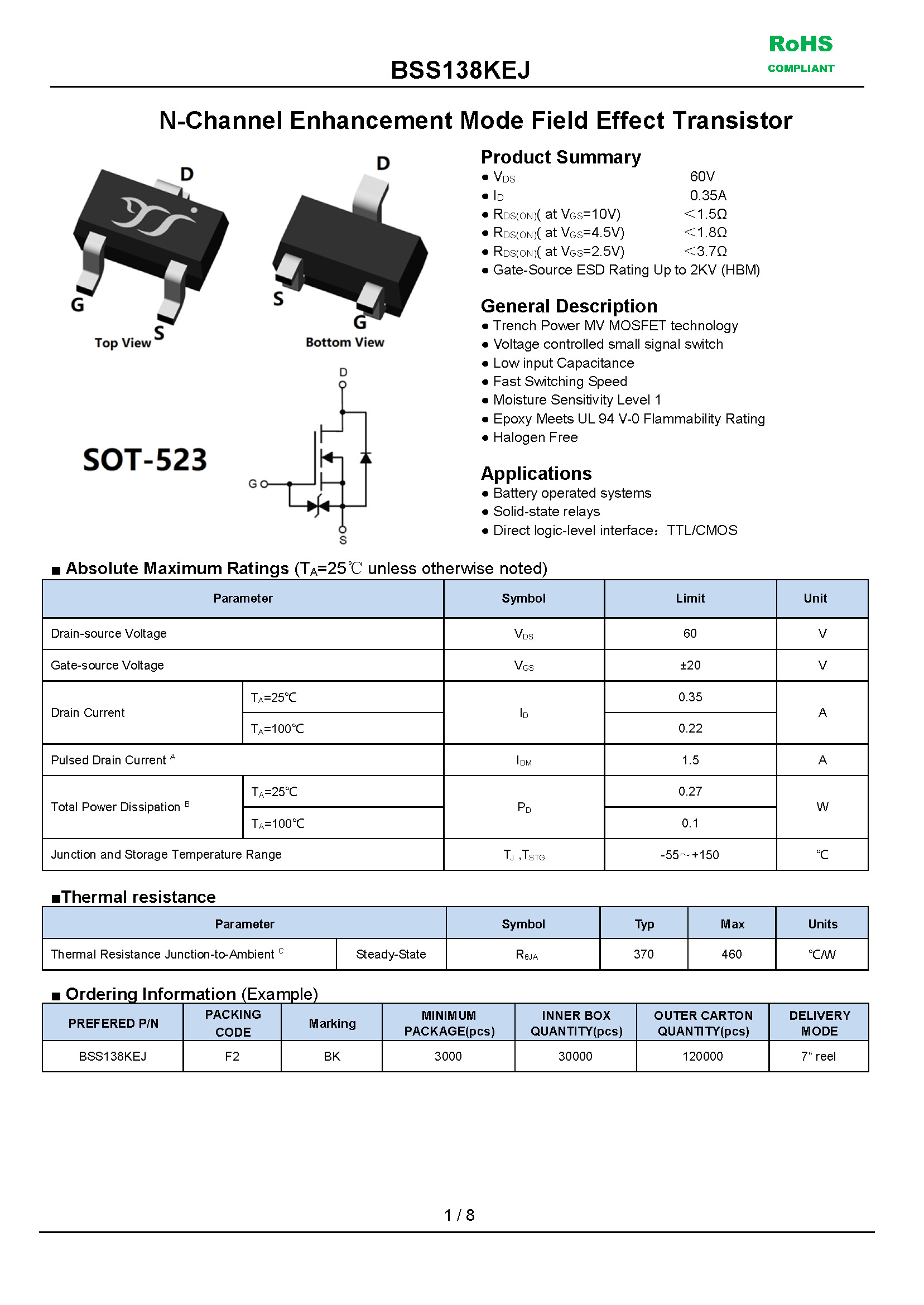

N-Channel Enhancement Mode Field Effect Transistor, VDSS: 60V, ID: 0.35A, PD: 0.27W, fetures, applications, SOT-523, BSS138KEJ
Features :
- VDS : 60V
- ID : 0.35A
- RDS(ON)( at VGS=10V) : <1.5Ω
- RDS(ON)( at VGS=4.5V) : <1.8Ω
- RDS(ON)( at VGS=2.5V) : <3.7Ω
- Gate-Source ESD Rating Up to 2KV (HBM)
General Description :
- Trench Power MV MOSFET technology
- Voltage controlled small signal switch
- Low input Capacitance
- Fast Switching Speed
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free
Applications :
- Battery operated systems
- Solid-state relays
- Direct logic-level interface:TTL/CMOS
