WM02P40M3
Merry
P-Channel Enhancement MOSFET, VDS: -20V, ID: -4A, VGS: -0.35V, fetures, applications, SOT-23-6L, WM02P40M3
- Part No.:WM02P40M3
2.Package:SOT-23-6L
3.VDS(V):-20
4.Vgs Max(V):±10
5.ID(A)@TA=25ºC(Max.):-4
6.VGS(th)(V)(Min.):-0.35
7.VGS(th)(V)(Max.):-1
8.Rds(on)mΩ@VGS=10V(Typ.):/
9.Rds(on)mΩ@VGS=10V(Max.):/
10.Rds(on)mΩ@VGS=4.5V(Typ.):33
11.Rds(on)mΩ@VGS=4.5V(Max.):48

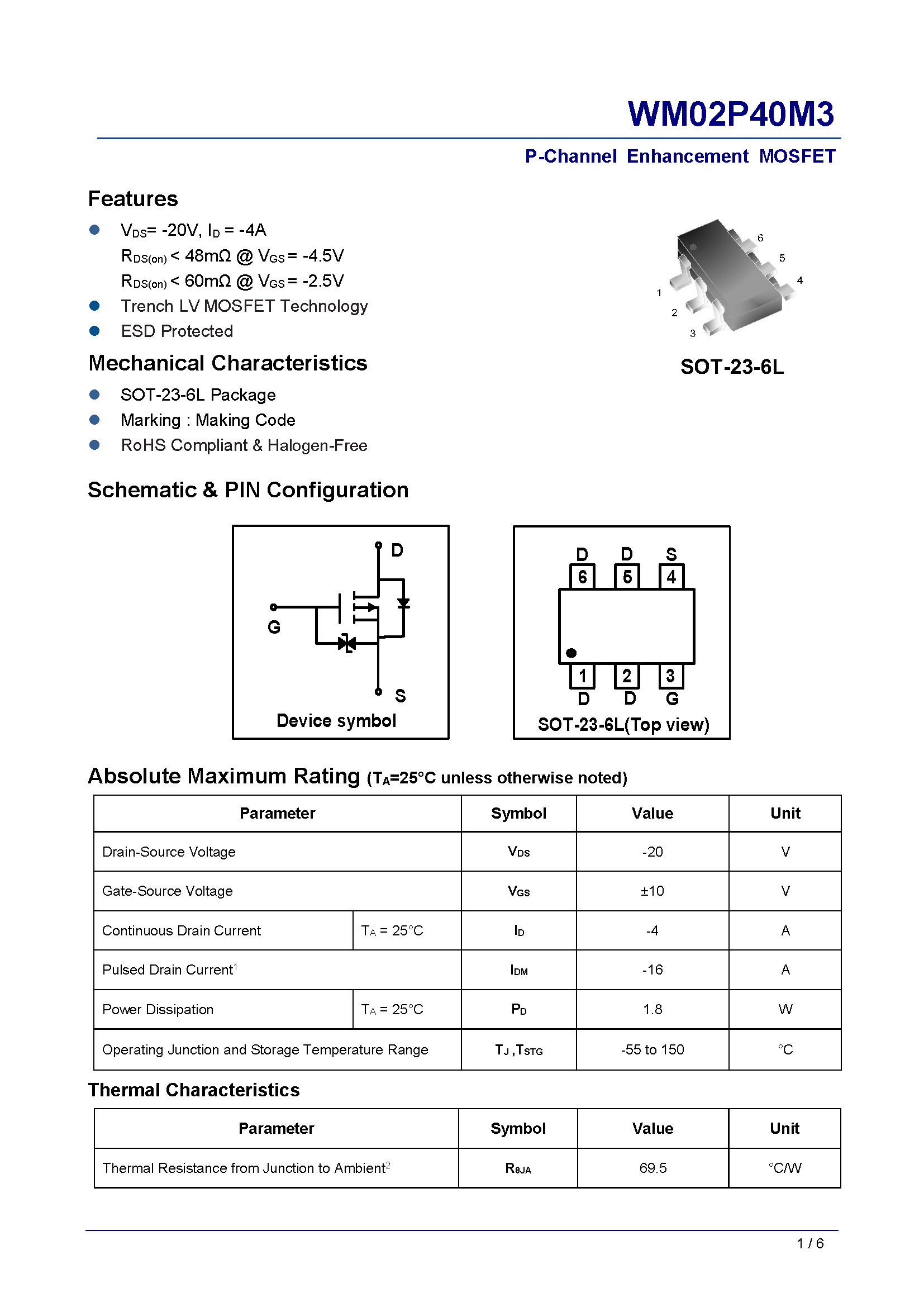

Features :
Mechanical Characteristics :

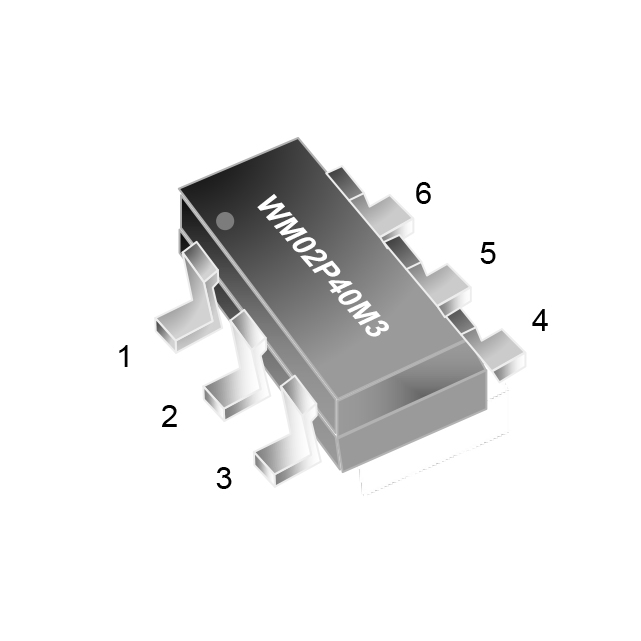

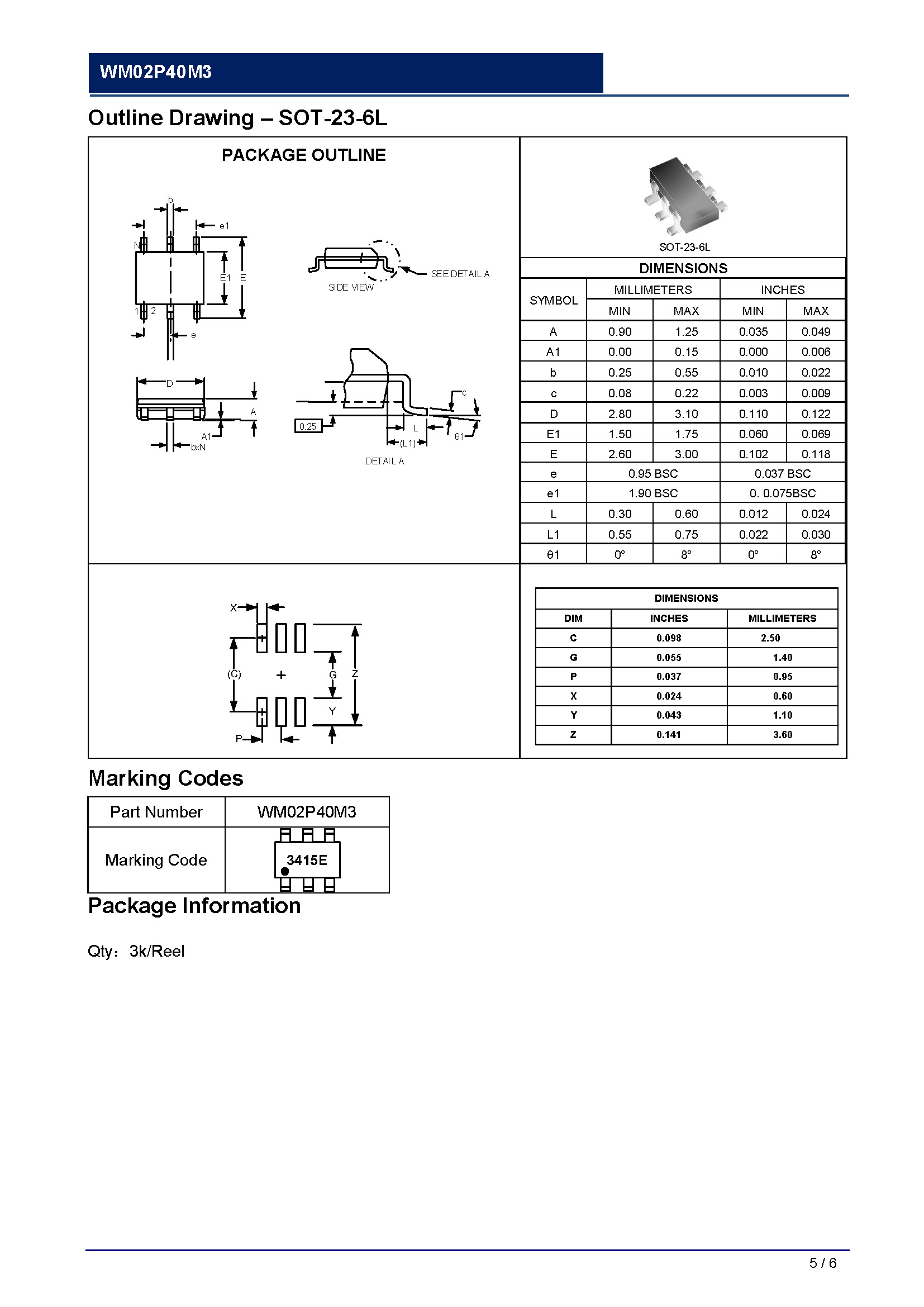

- SOT-23-6L Package
- Marking : Making Code
- RoHS Compliant & Halogen-Free
Name1
Name2
Name1
Name2
Name1
Name2
Name1
Name2
