Home » Products » Transistor » MOSFET » SOT-23 Plastic Package NPN Silicon General Purpose Transistor MMBT3904

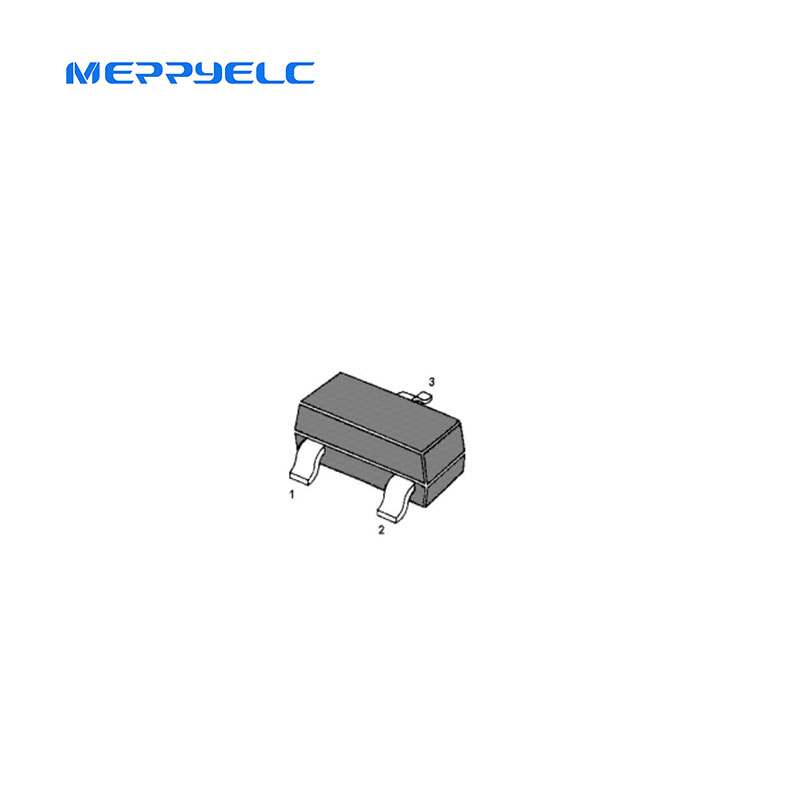

SOT-23 Plastic Package NPN Silicon General Purpose Transistor MMBT3904


Availability:



Inquire Add to Basket

Model:
MMBT3904

Product Description

Features
High DC current gain: 0.1mA to 100mA
Low collector-emitter saturation voltage
Epoxy meets UL-94 V-0 flammability rating
Moisure Sensitivity Level 1

Applications
for switching and amplifier applications

MMBT3904.pdf

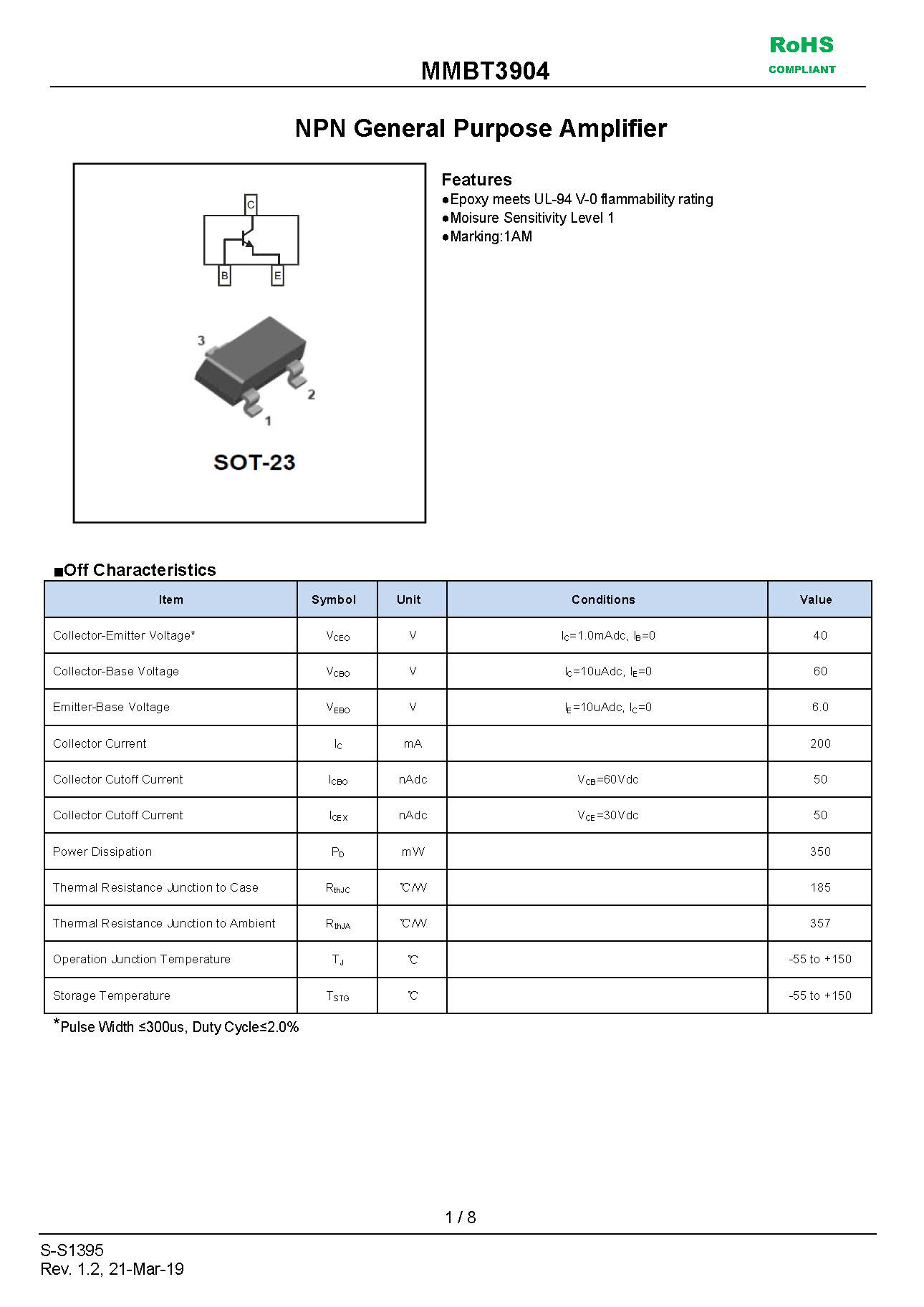

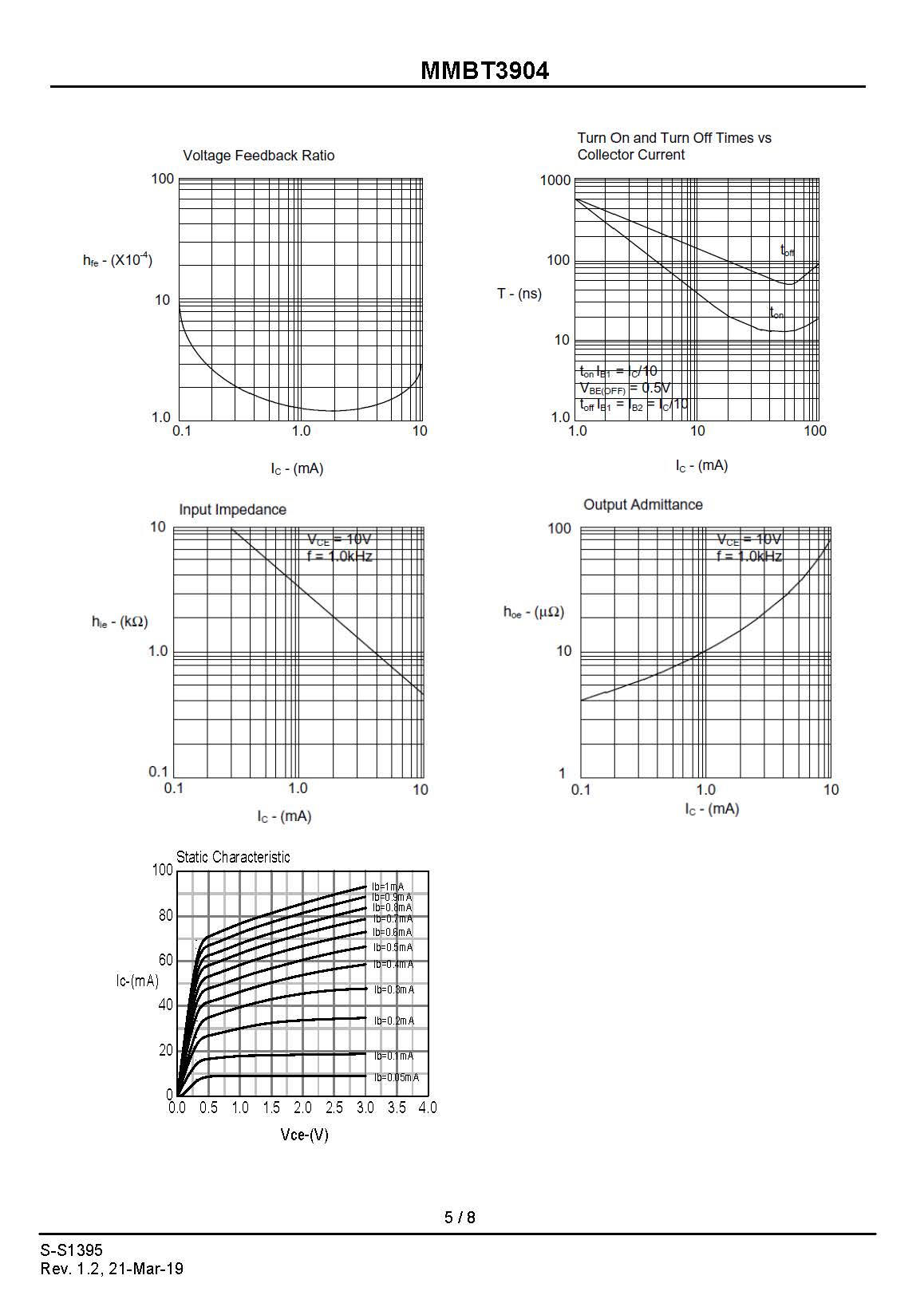

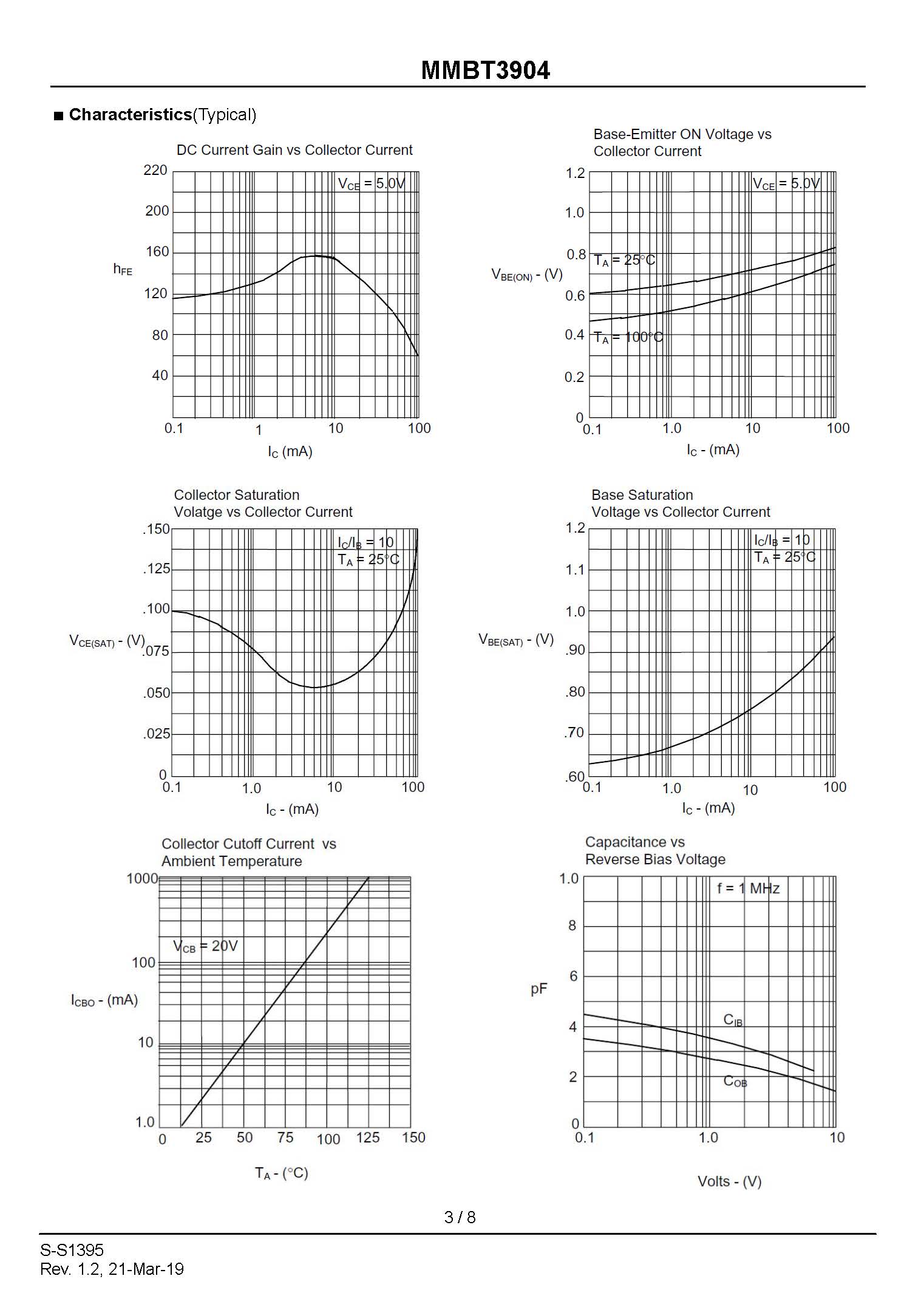

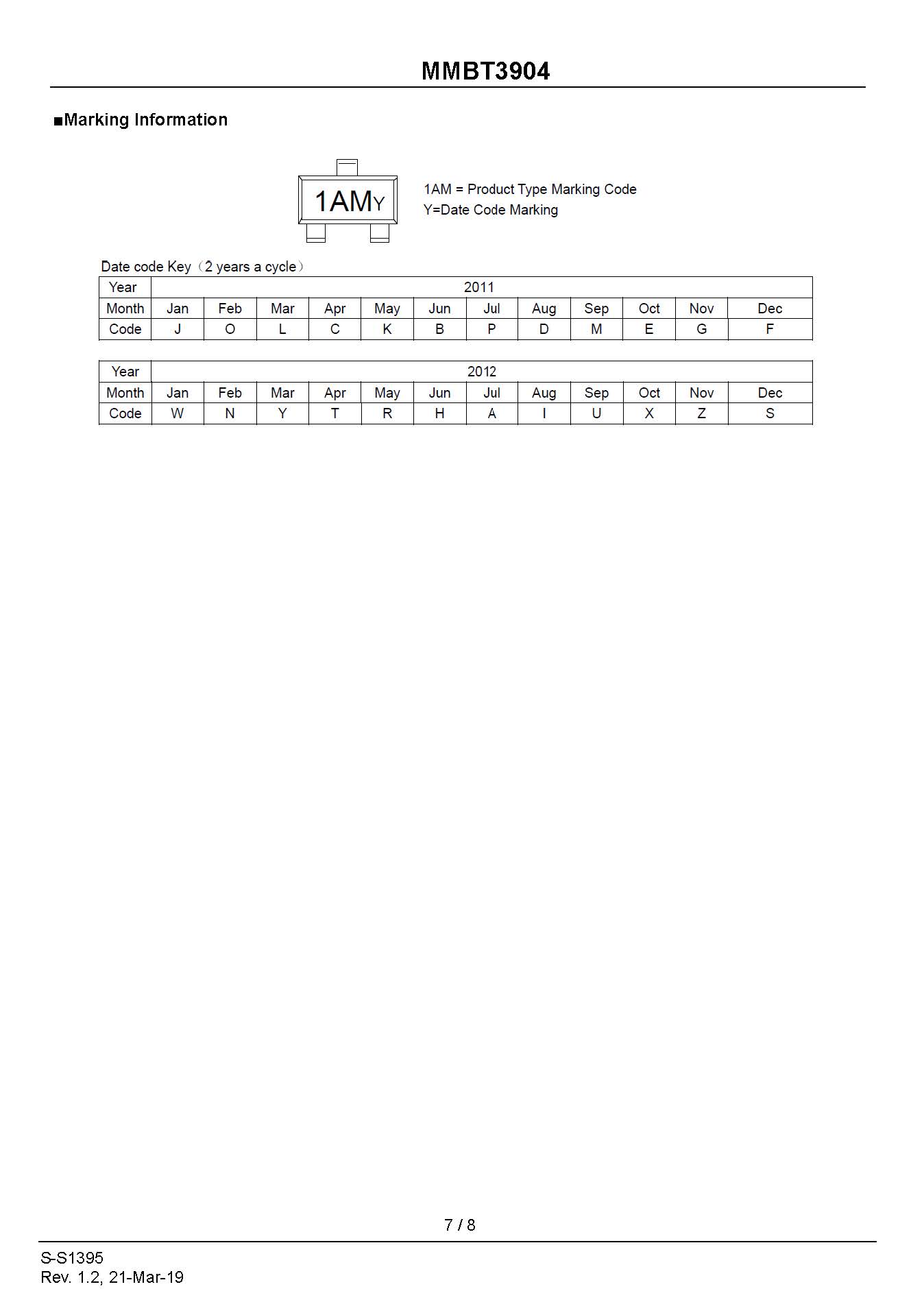

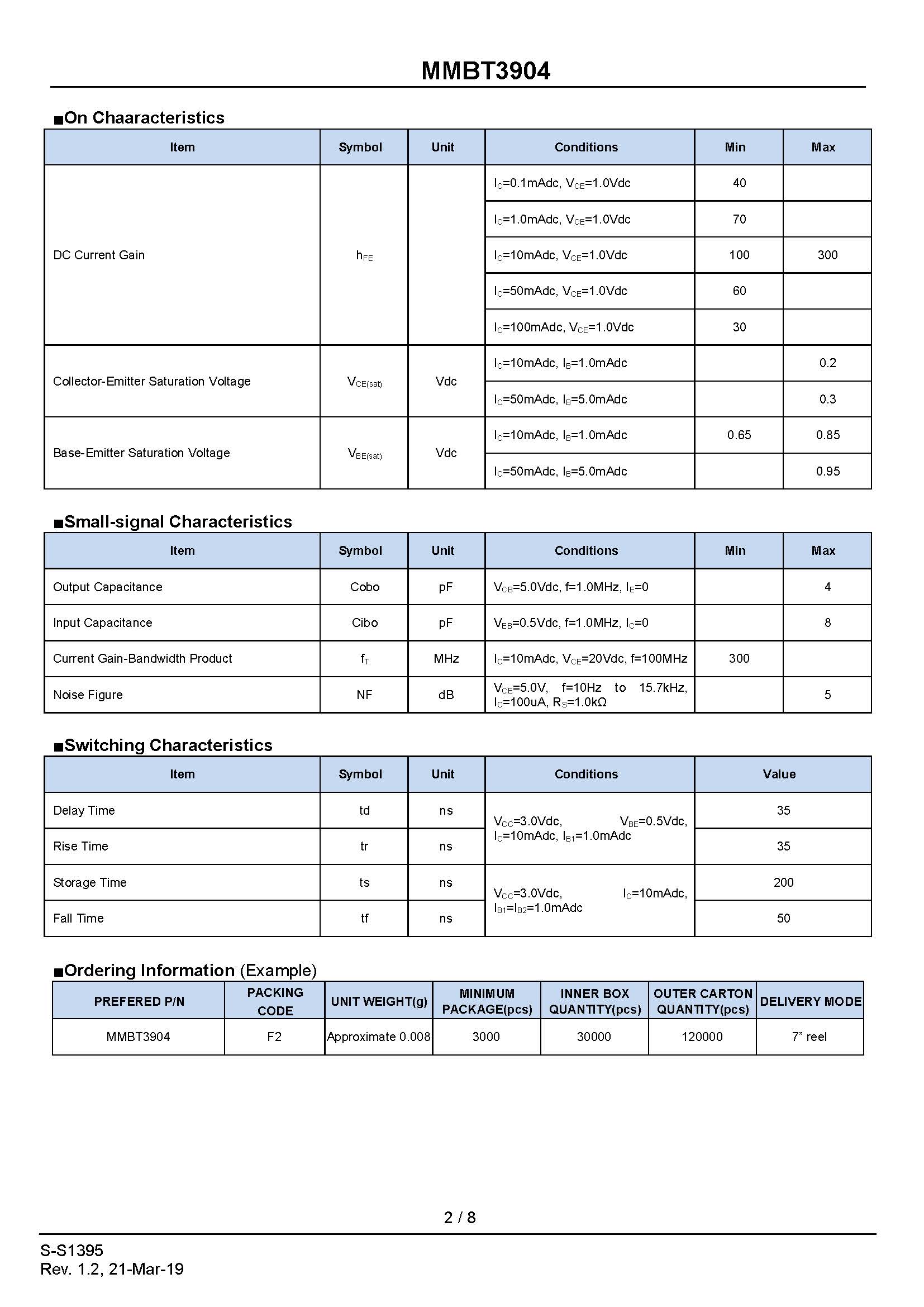

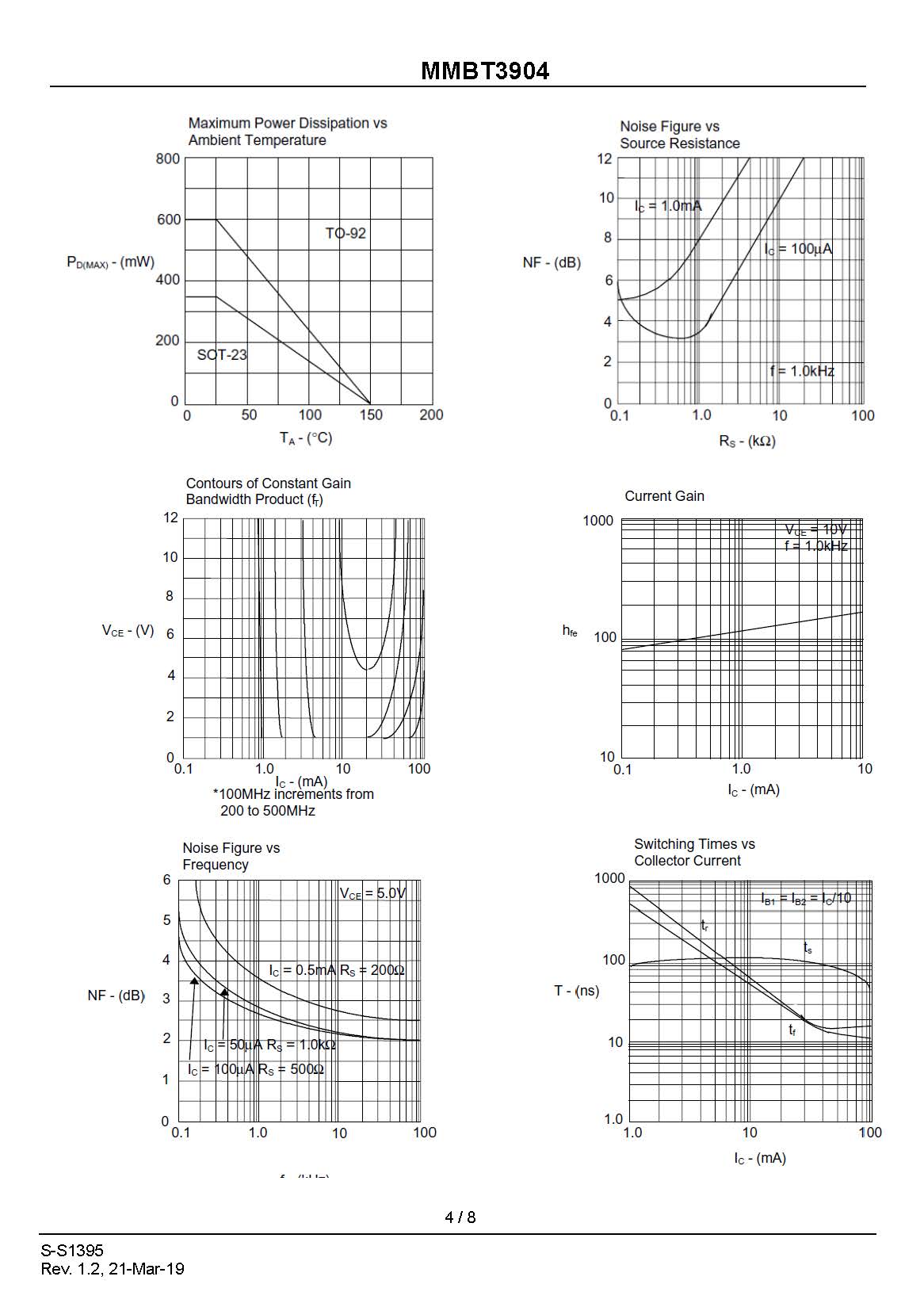

MMBT3904_页面_1 MMBT3904_页面_2 MMBT3904_页面_3 MMBT3904_页面_4 MMBT3904_页面_5 MMBT3904_页面_6 MMBT3904_页面_7

Transistor Power Transistor silicon power transistor switching transistors MMBT3904
