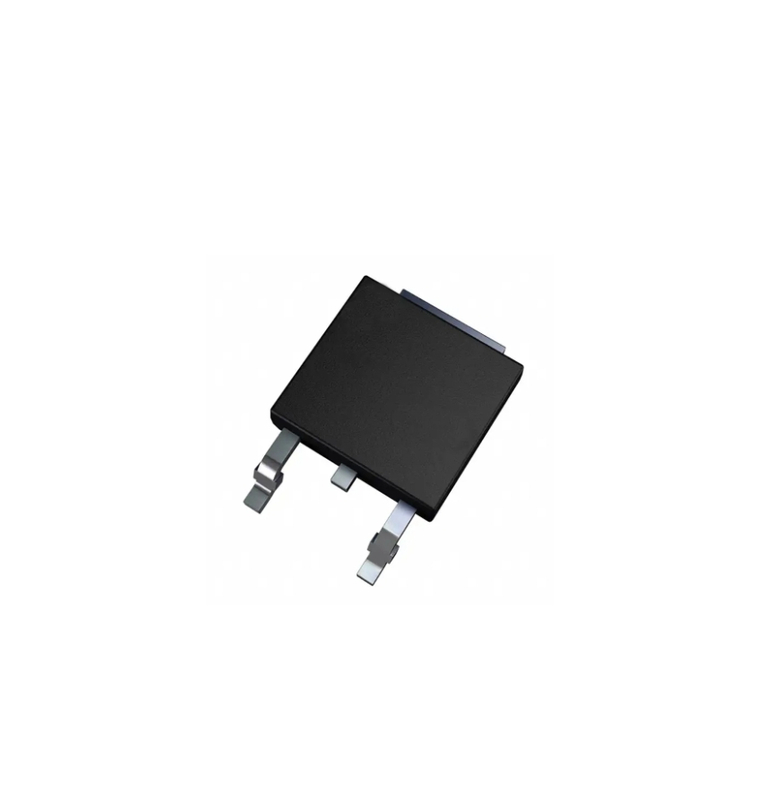

Surface Mount IRLR120N D-Pak TO-252AA 100V 10A Fast Switching HEXFET Power Mosfet

Surface Mount IRLR120N D-Pak 100V 10A Fast Switching HEXFET Power Mosfet
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • IRLR120N

Description
Fifth Generation HEXFETs from International Rectifier utilizeadvancedprocessingtechniquesto achieve the lowest possibleon-resistance persilicon area. This benefit, combined with thefastswitching speedand ruggedized device designthat HEXFETPowerMOSFETsarewell known for, providesthe designerwithan extremely efficient device for use in a wide variety ofapplications.The D-PAK is designed for surface mounting using vaporphase,infrared, orwave solderingtechniques. Thestraight leadversion (lRFUseries)is forthrough-hole mountingapplications.Power dissipation levels up to 1.5 watts are possible in typicalsurface mount applications.

Features
Surface Mount (IRLR120N)
Advanced Process Technology
Fast Switching
Fully Avalanche Rated
Lead-Free


Infineon-IRLR120N.pdf

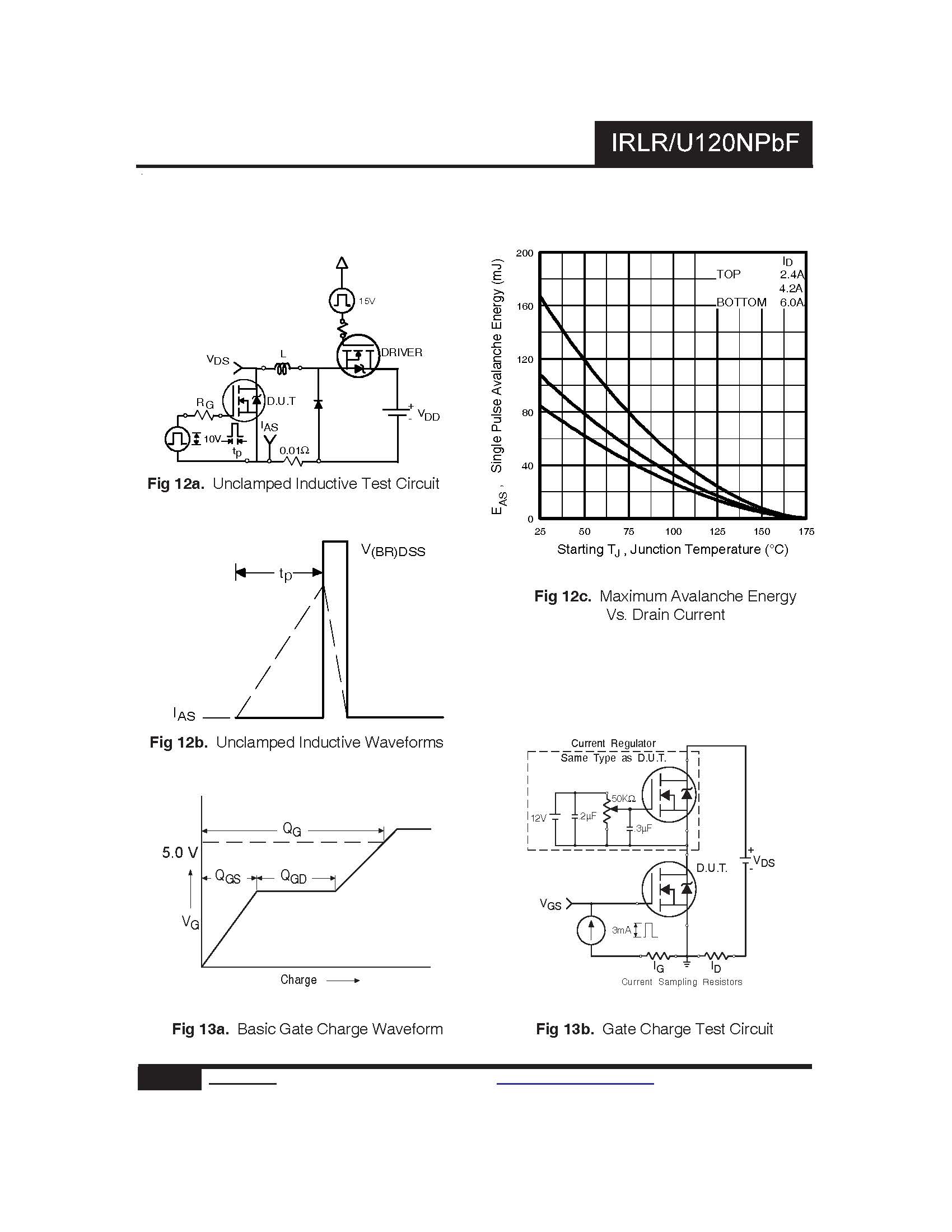

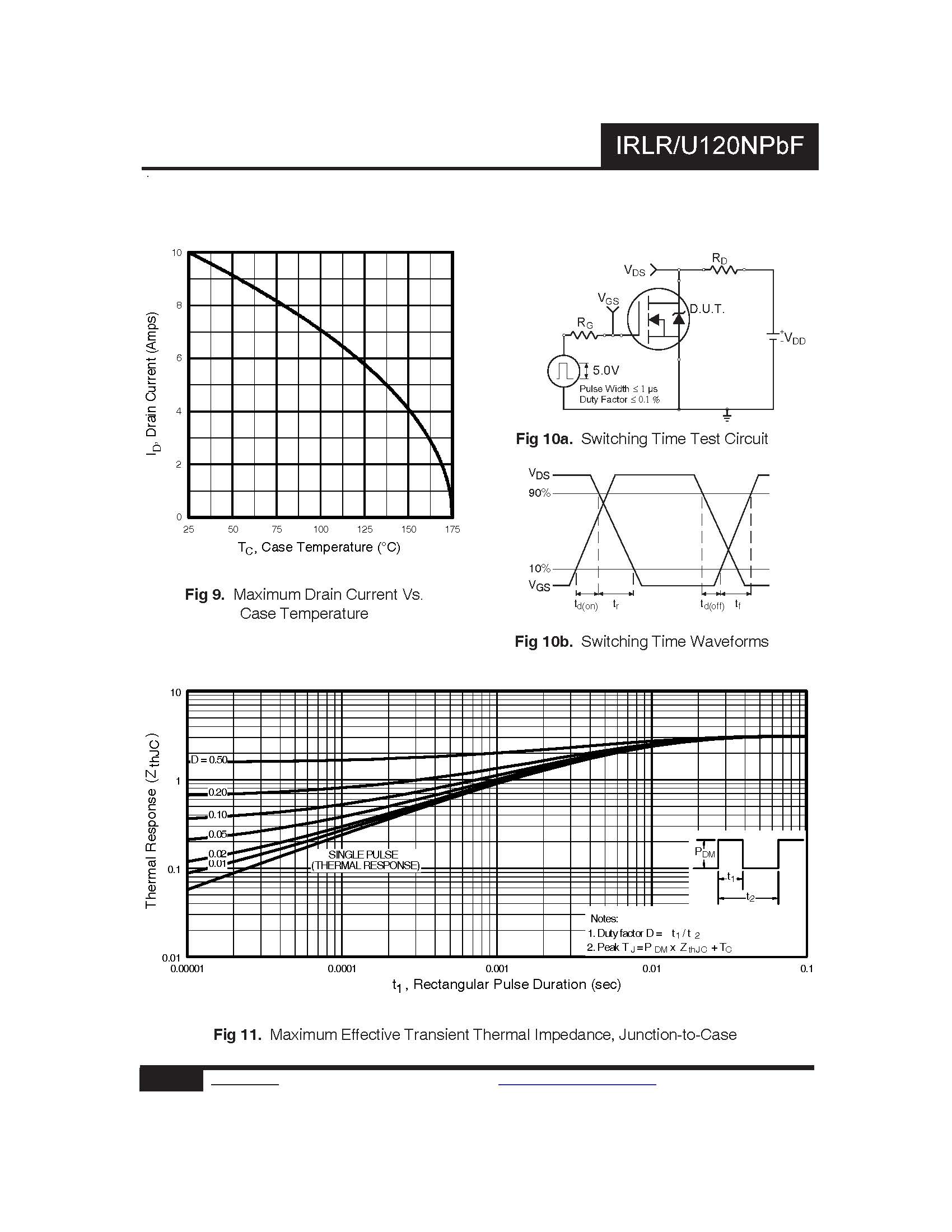

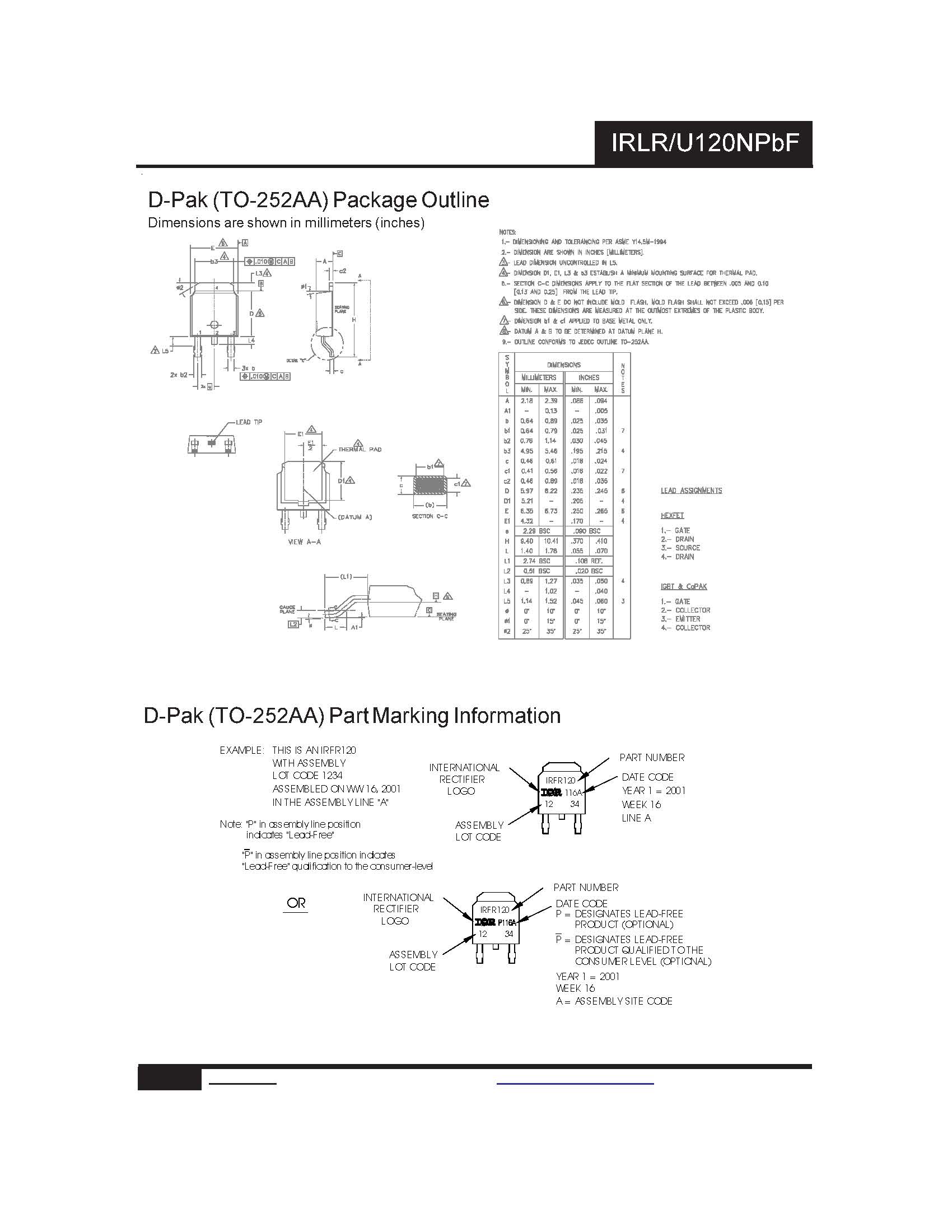

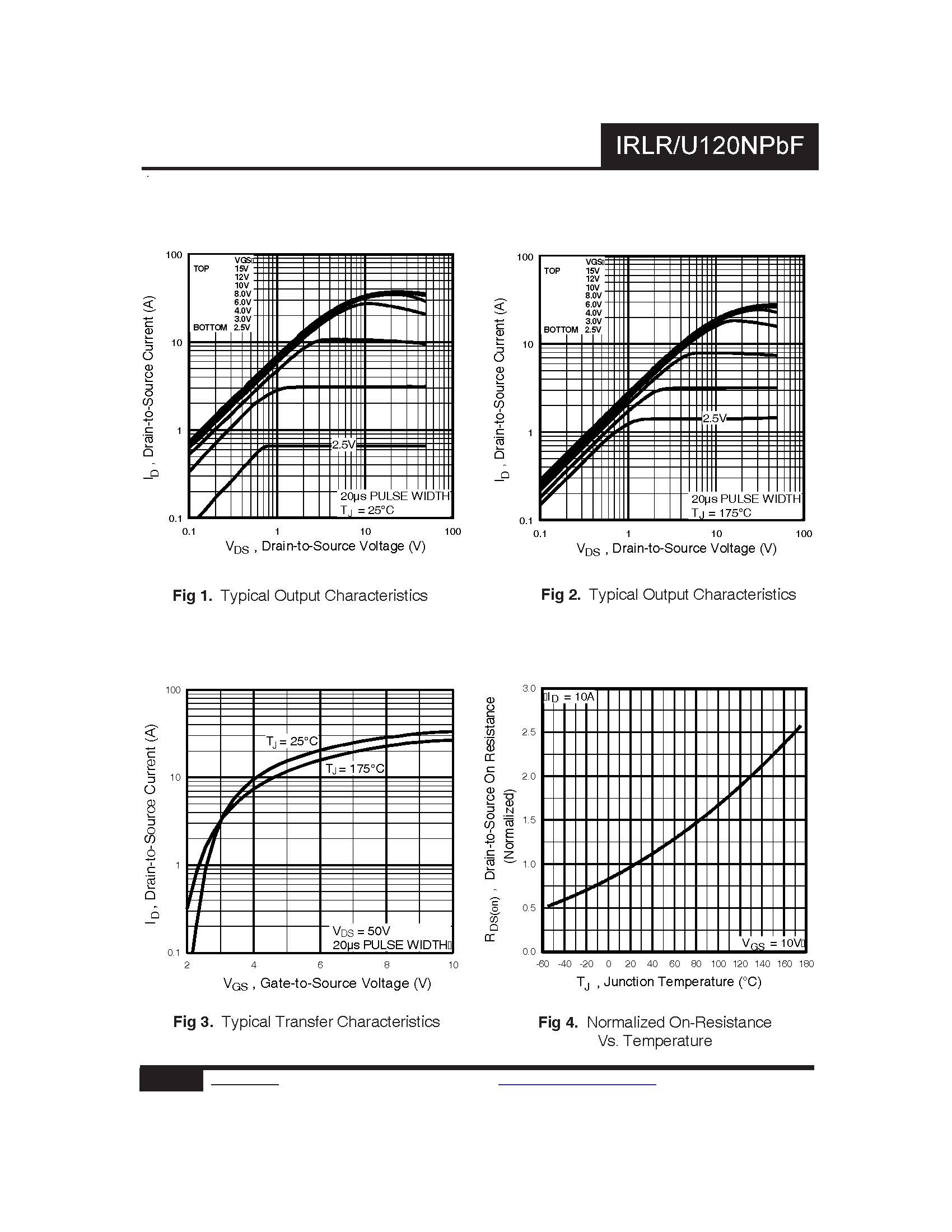

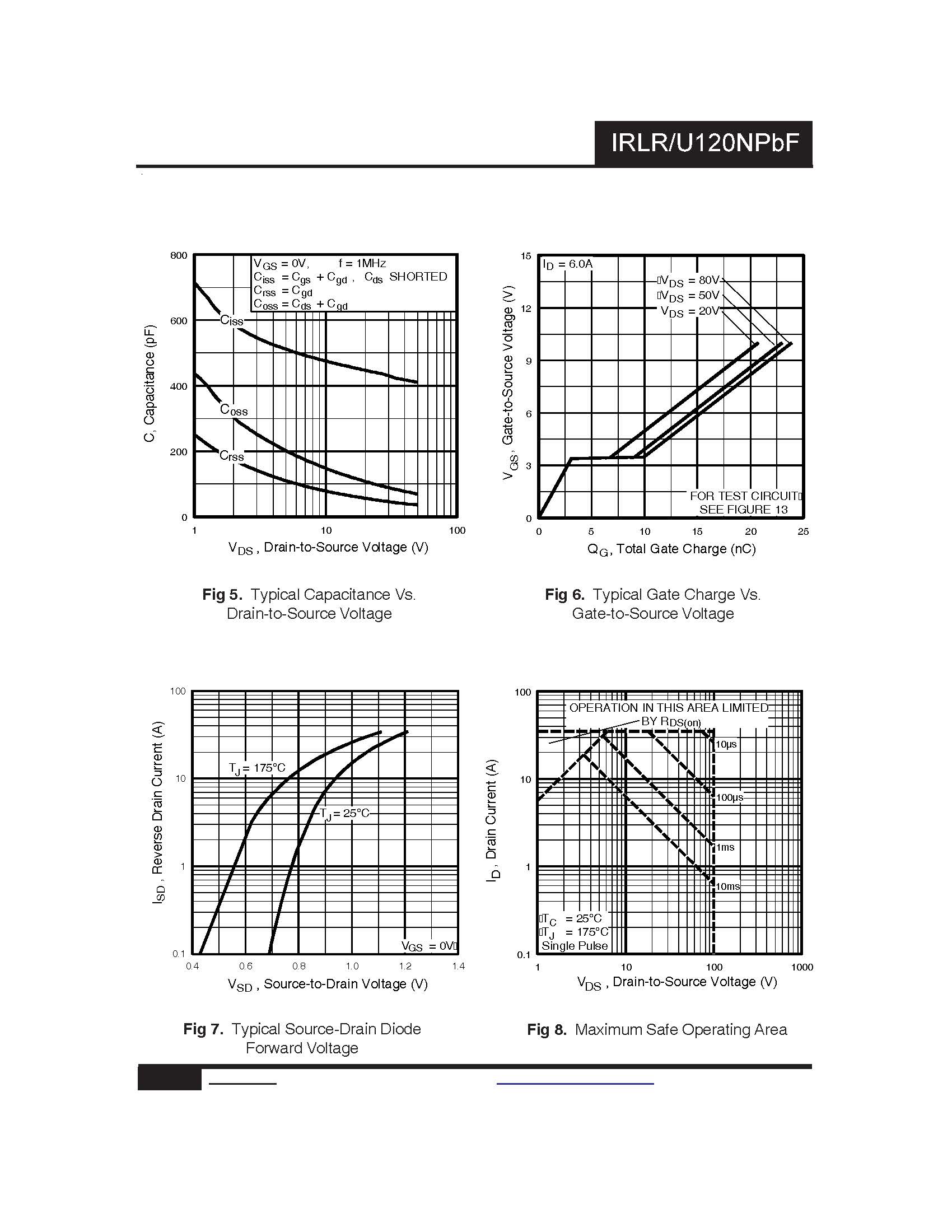

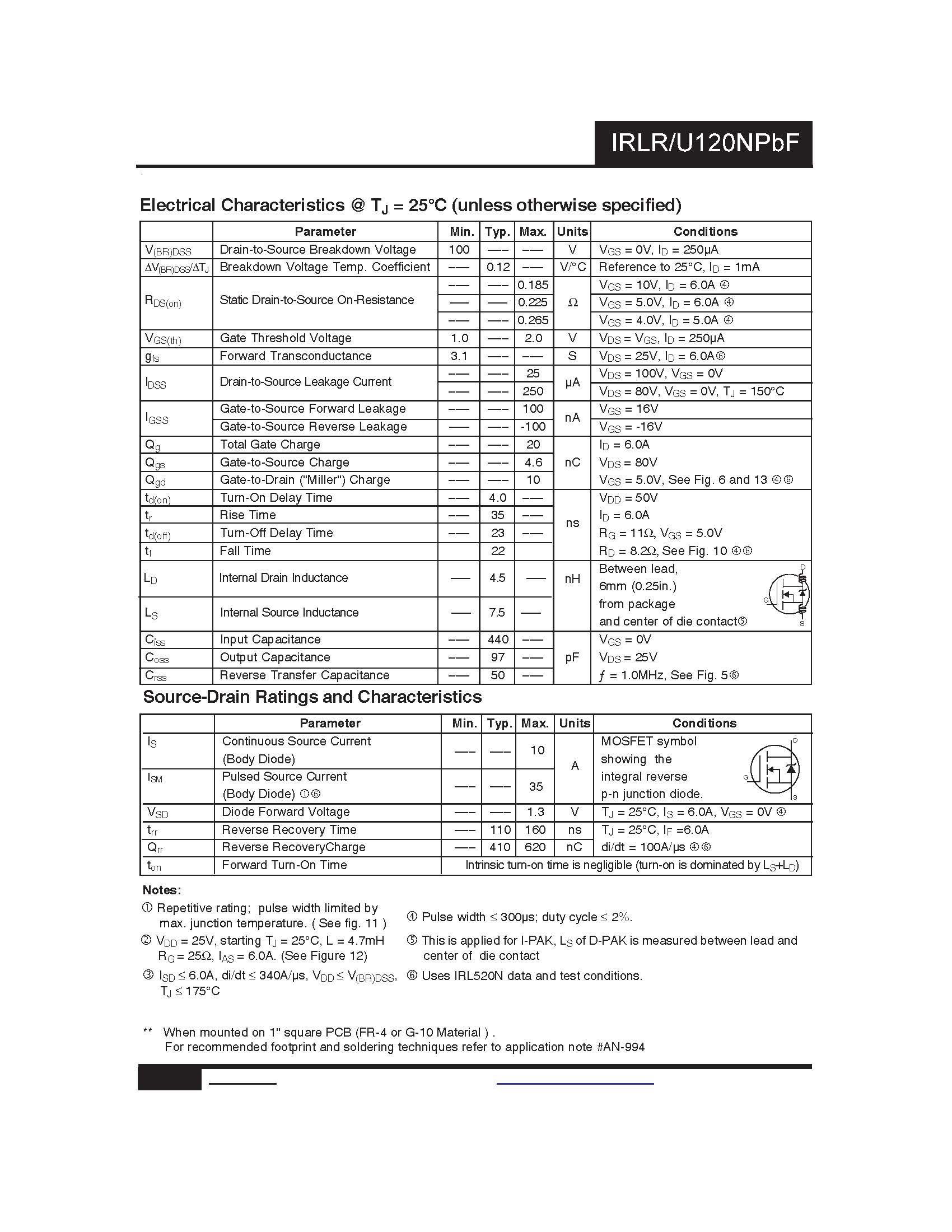

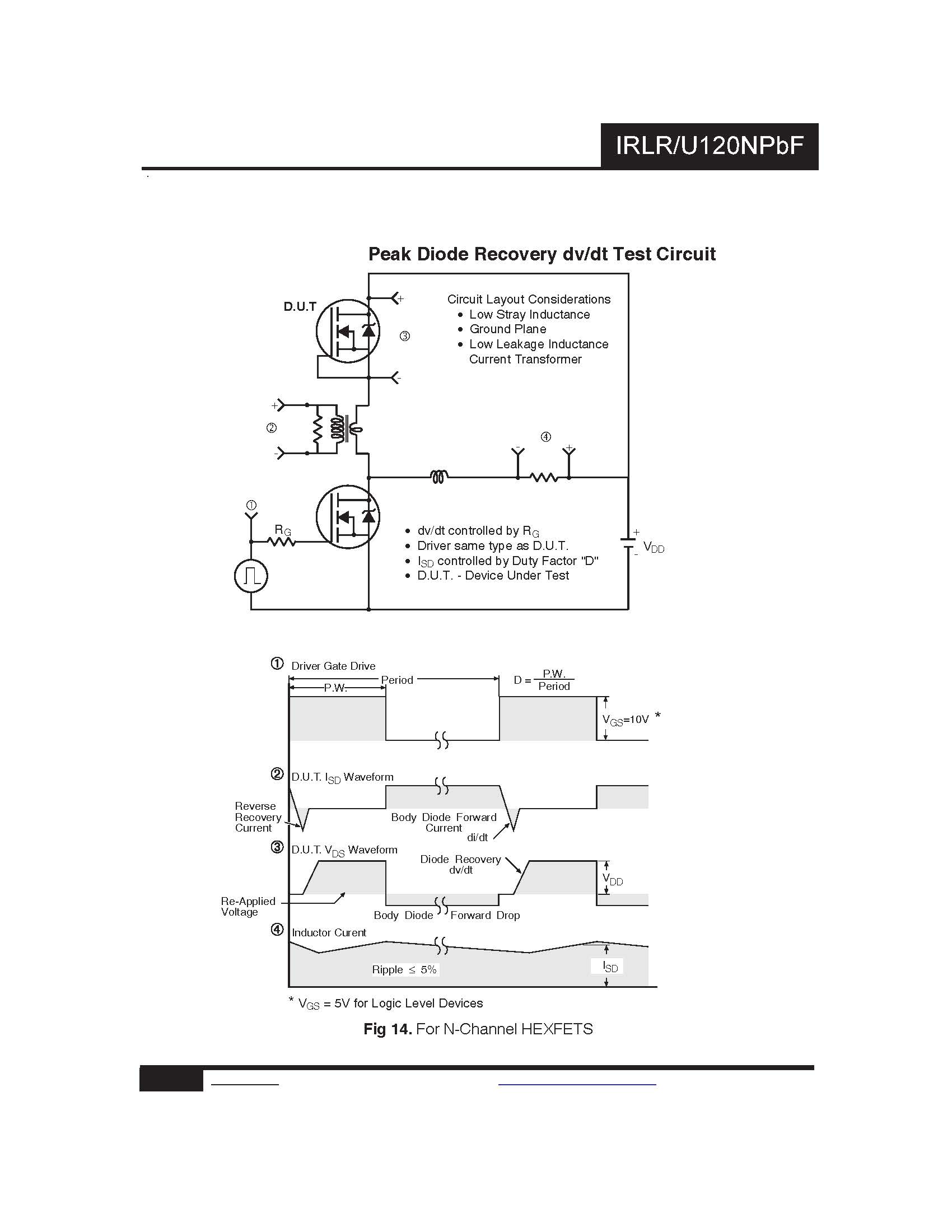

IRLR120N_页面_01IRLR120N_页面_02IRLR120N_页面_03IRLR120N_页面_04IRLR120N_页面_06IRLR120N_页面_05IRLR120N_页面_07IRLR120N_页面_08
